Remote Power Steering Fluid Reservoir Replacement (LY7)

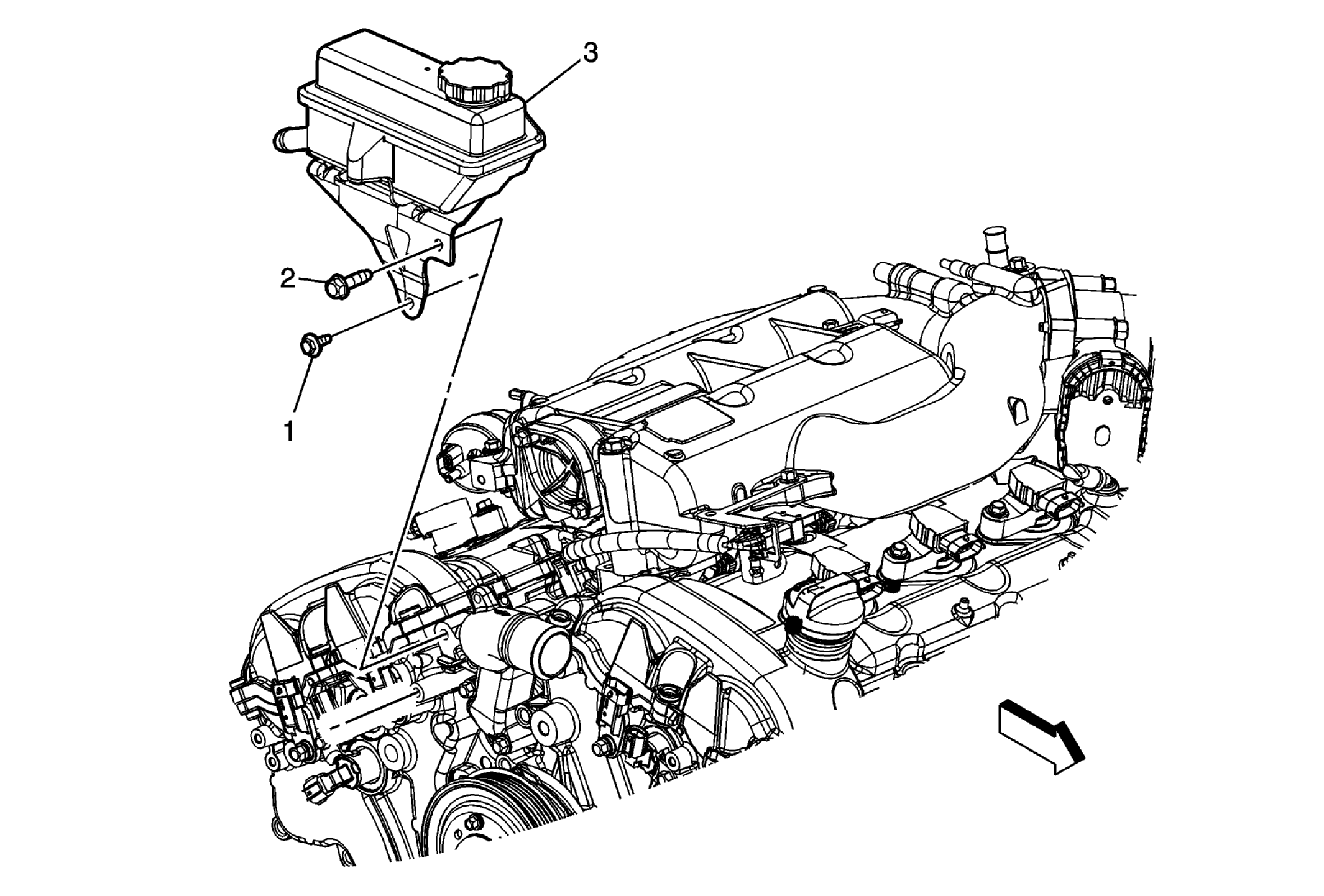

Fig 1: View Of Remote Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
1	Power Steering Pump Bracket Bolt NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Power Steering Pump Bracket Bolt Tighten: 25 N.m (18 lb ft)
3	Remote Power Steering Fluid Reservoir Procedure Remove as much power steering fluid from the remote power steering fluid reservoir as possible. Place drain pans under the vehicle as needed. Disconnect the power steering reservoir inlet hose and the power steering fluid reservoir outlet hose. Transfer any parts as needed. After repairs, fill and bleed the power steering system. Refer to Power Steering System Bleeding .
