SIR Schematics

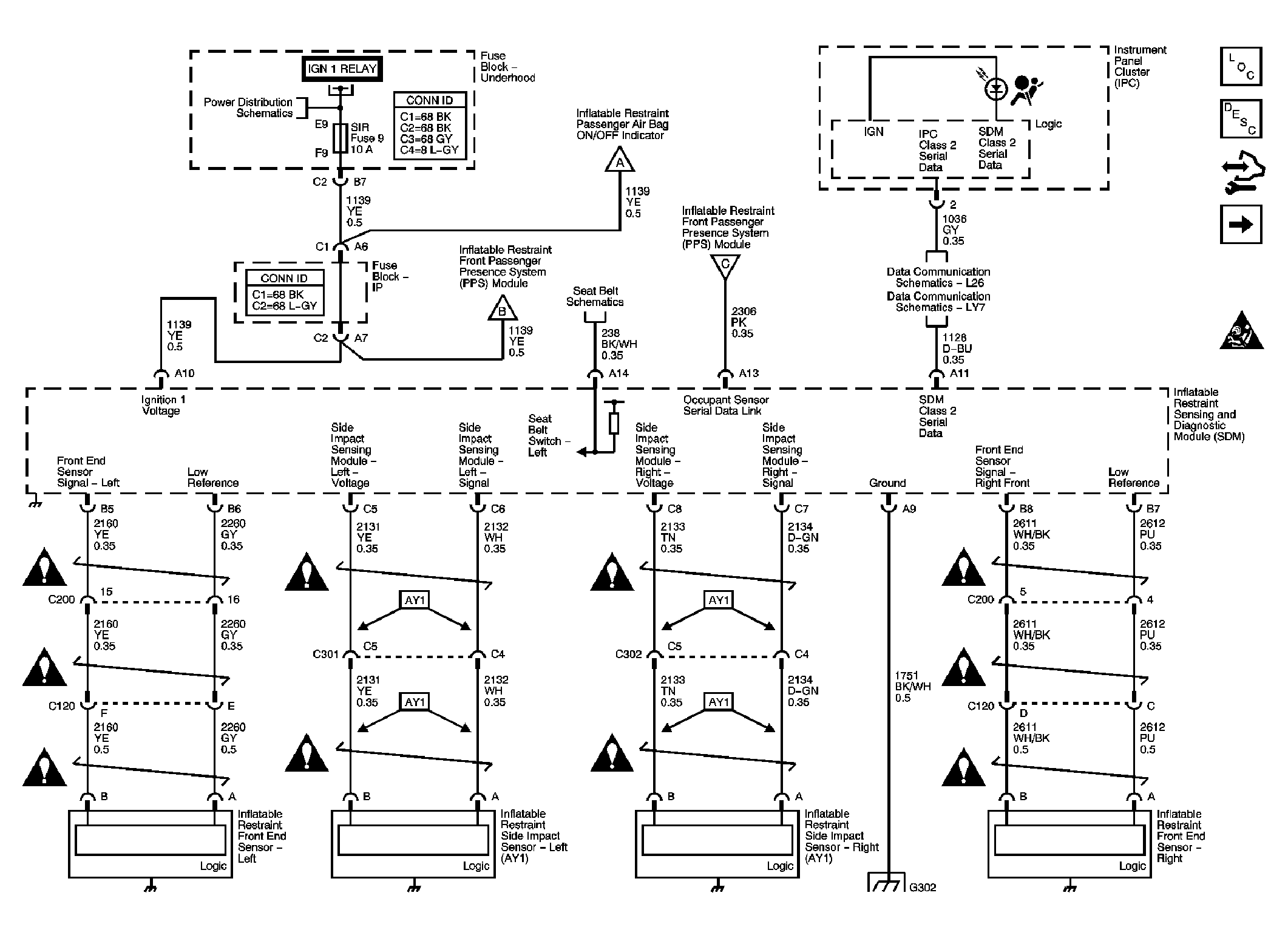

Fig 1: Power Ground, Serial Data, Indicators, Sensors, and References Schematic
GM1888803Courtesy of GENERAL MOTORS CORP.

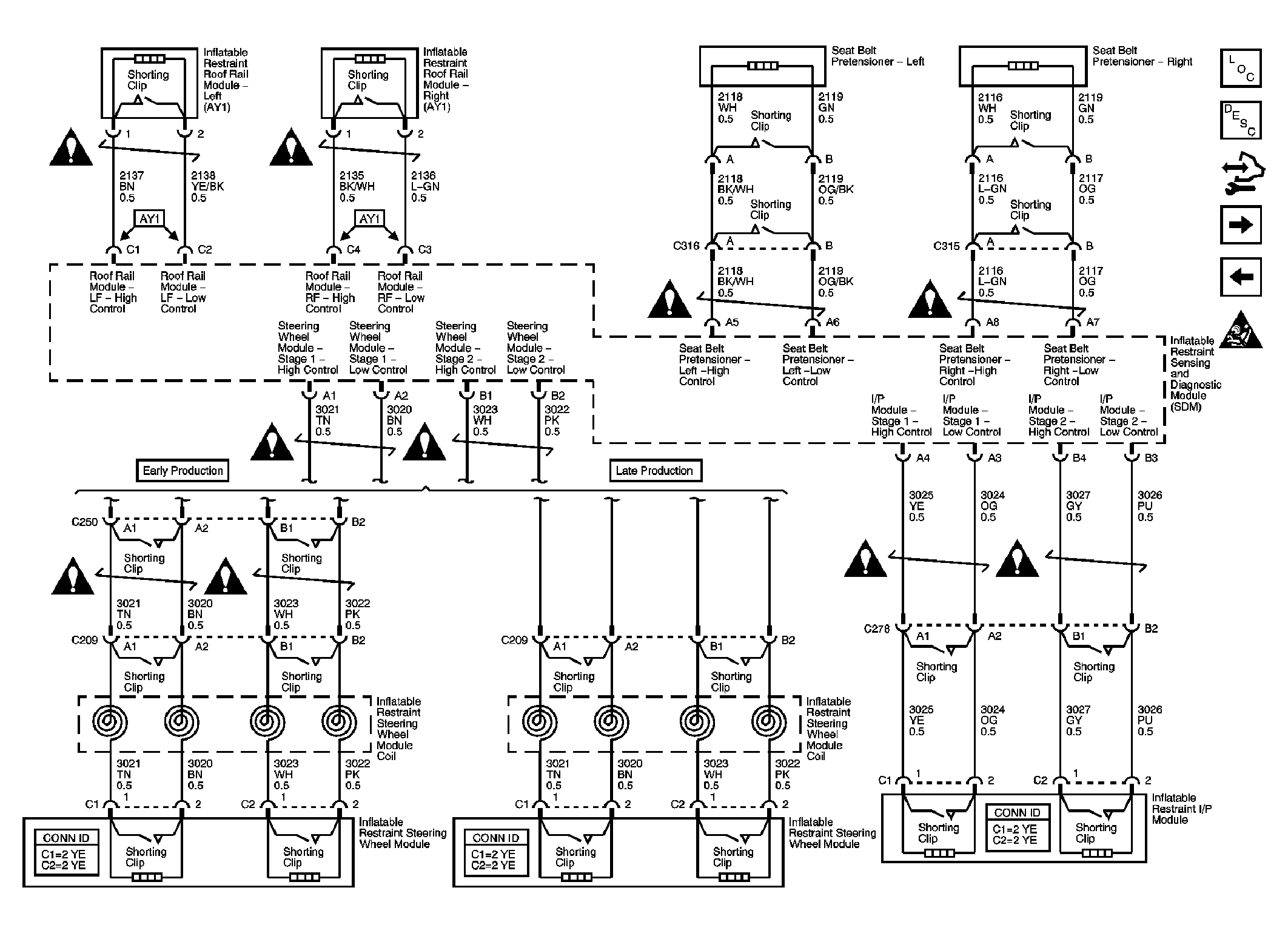

Fig 2: Air Bag Modules and Seat Belt Pretensioners Schematic
GM1888808Courtesy of GENERAL MOTORS CORP.

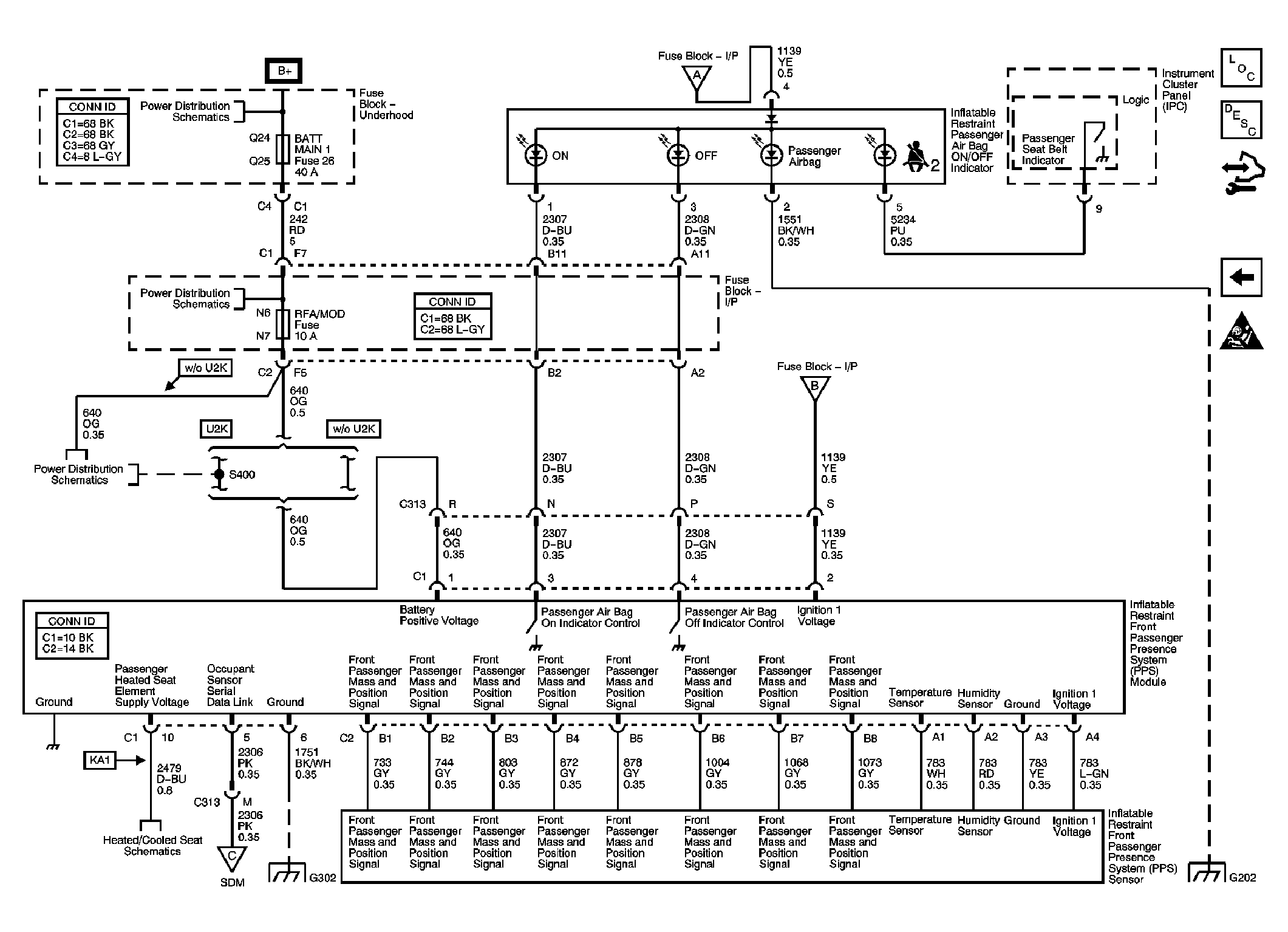

Fig 3: Passenger Presence System Schematic
GM1888817Courtesy of GENERAL MOTORS CORP.
