Heater Outlet Hose Replacement (LY7)

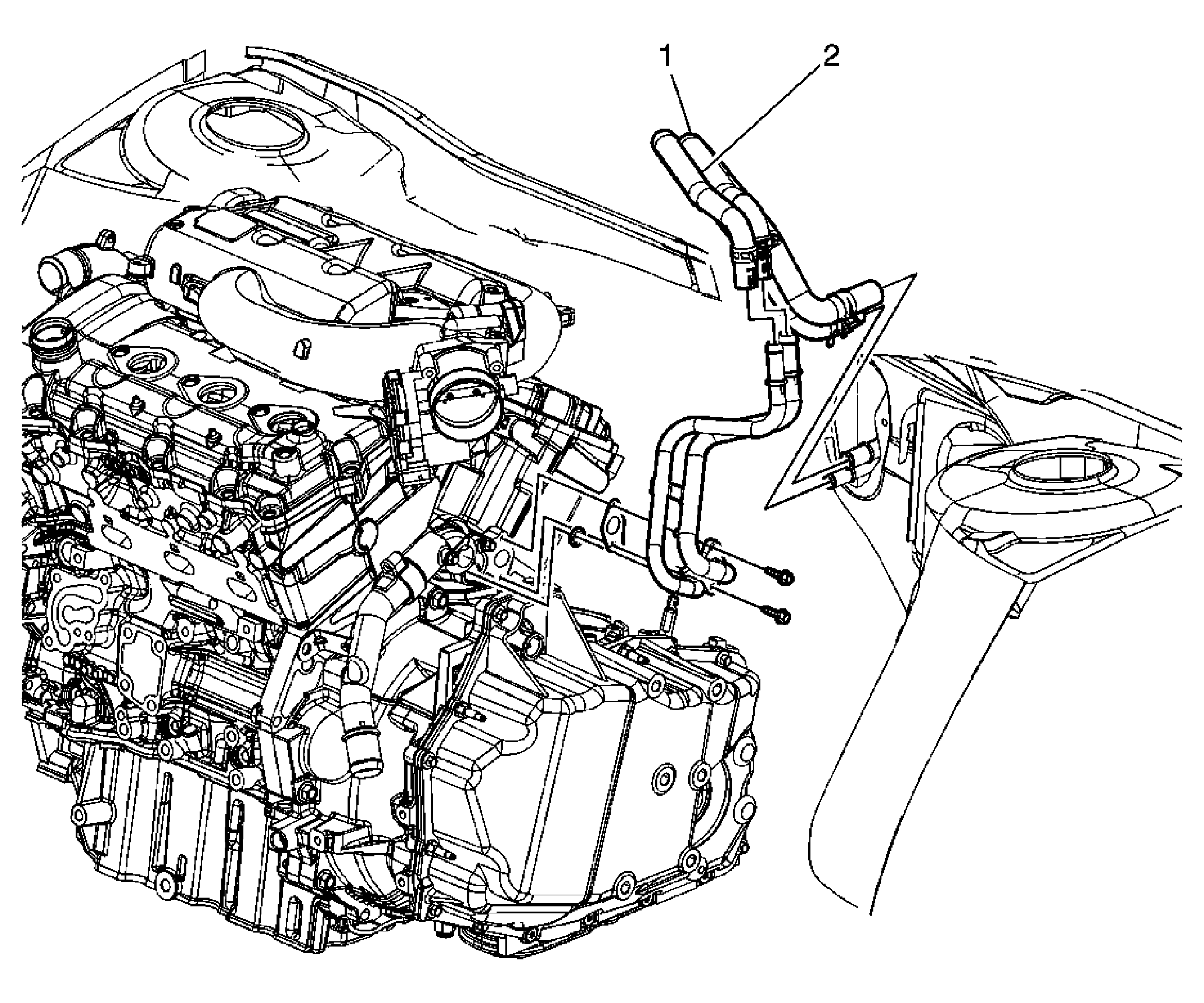

Fig 1: View Of Heater Hoses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Drain the cooling system. Refer to Cooling System Draining and Filling (L26, LY7 GE 47716 Fill) or Cooling System Draining and Filling (L26 Static Fill) or Cooling System Draining and Filling (LY7 Static Fill) or Cooling System Draining and Filling (LS4 GE47716 Fill) or Cooling System Draining and Filling (LS4 Static Fill) .
1	Heater Inlet Hose
2	Heater Outlet Hose Tip:  Use J 38185  Hose Clamp Plier to release the clamp on the heater hose.
