HVAC Schematics

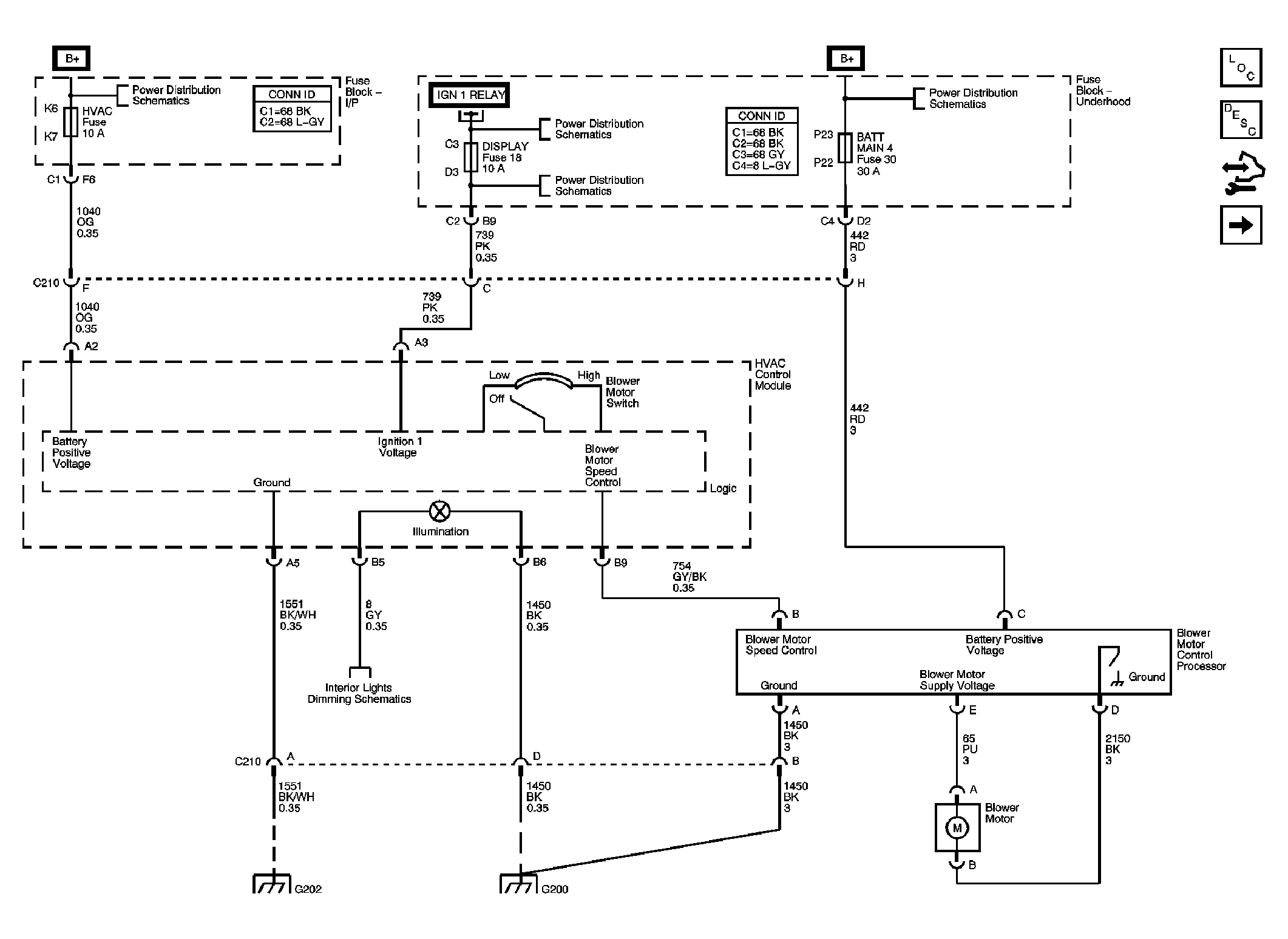

Fig 1: Power, Ground, and Blower Controls Schematic
GM1889390Courtesy of GENERAL MOTORS CORP.

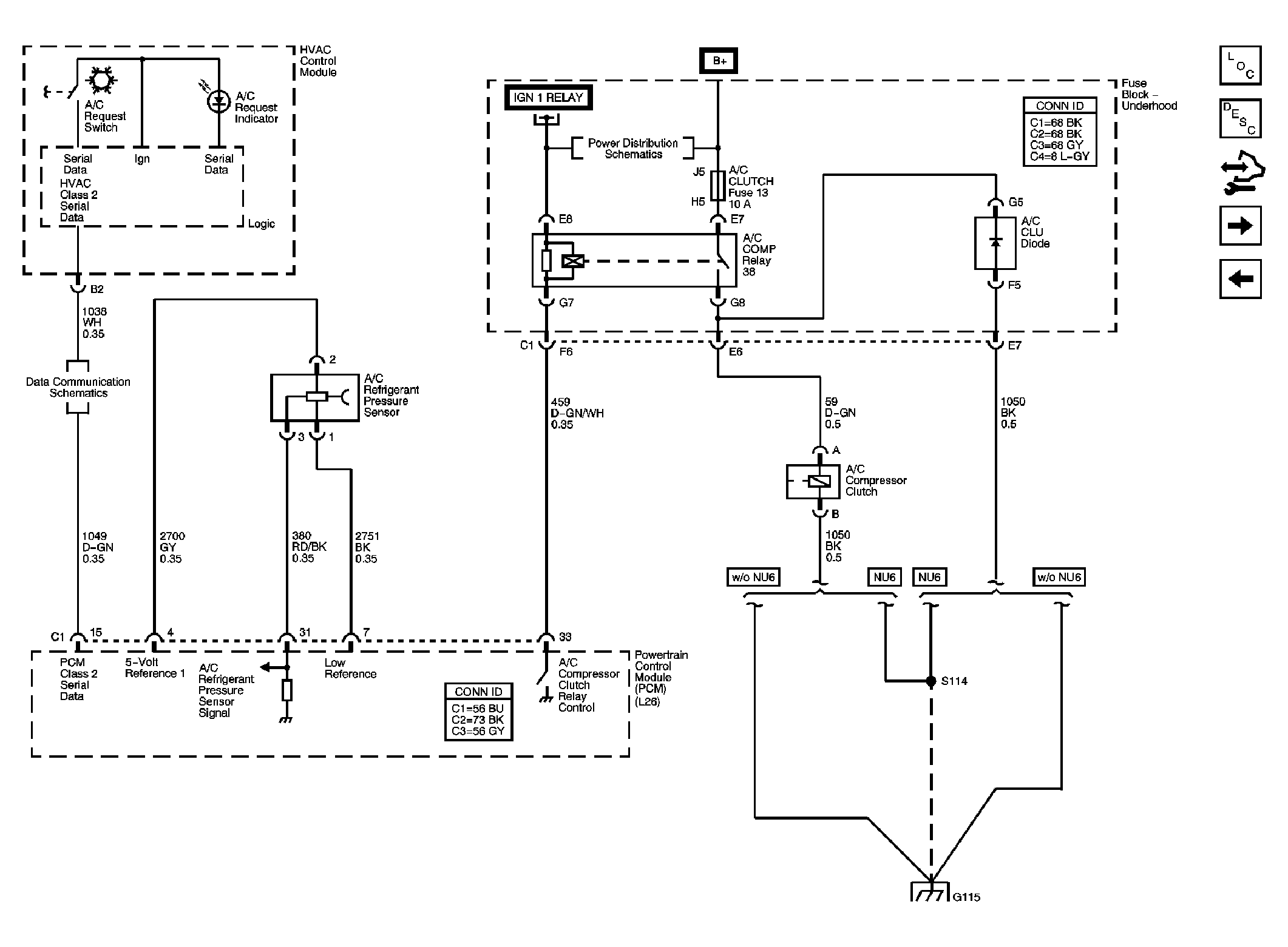

Fig 2: Compressor Controls and Serial Data Schematic - L26
GM1889396Courtesy of GENERAL MOTORS CORP.

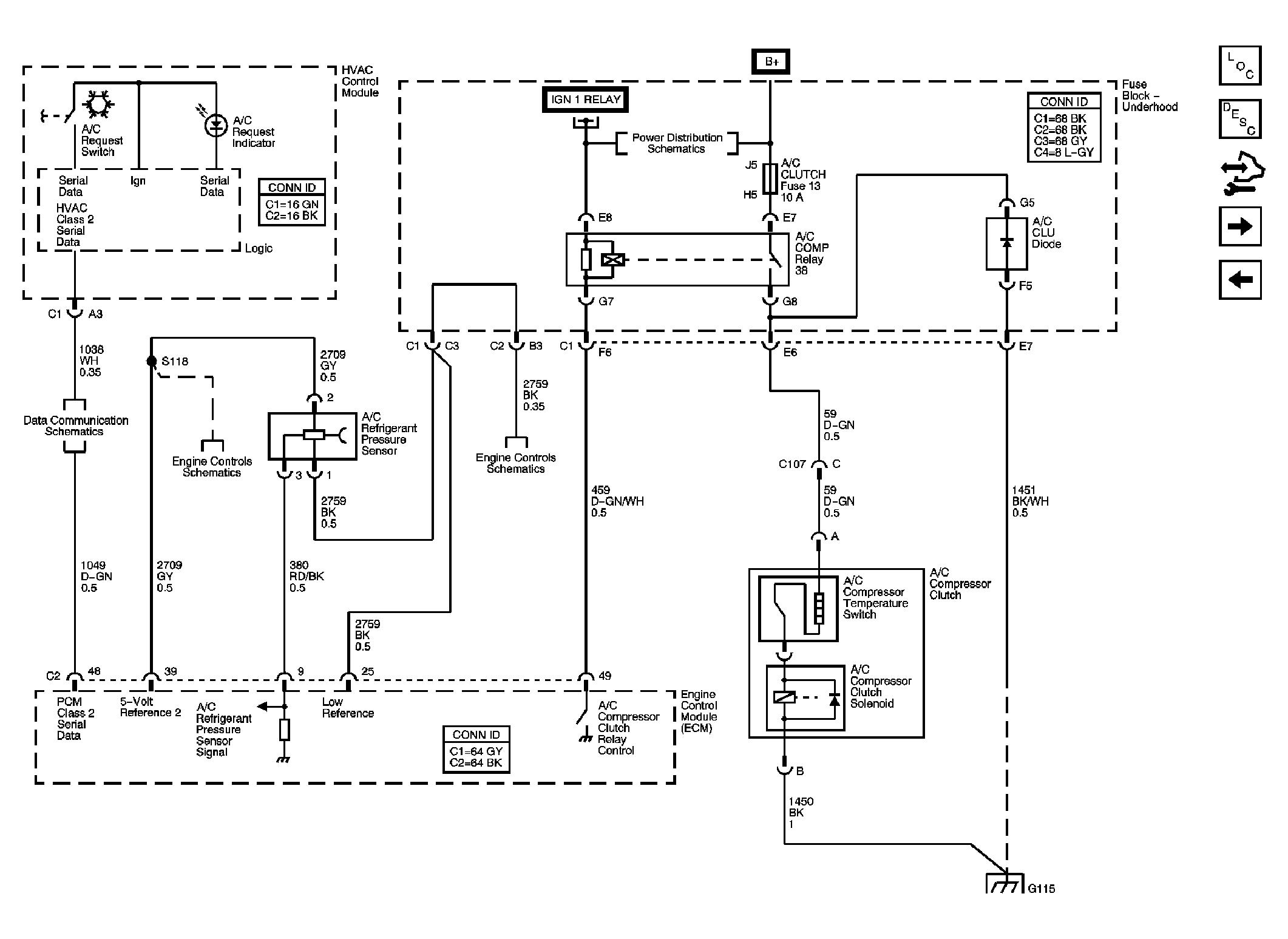

Fig 3: Compressor Controls and Serial Data Schematic - LY7
GM1889400Courtesy of GENERAL MOTORS CORP.

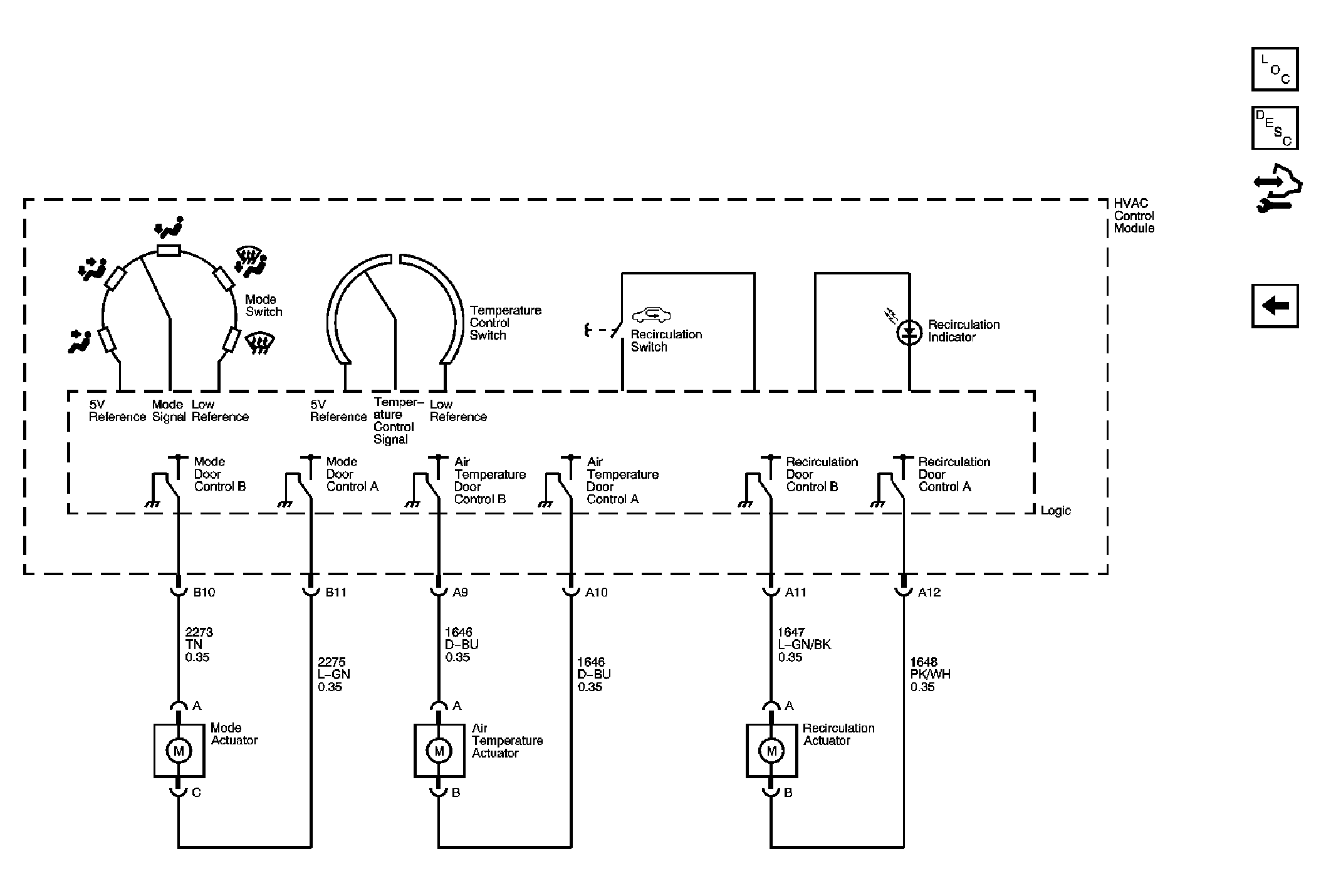

Fig 4: Mode and Air Temperature Controls Schematic
GM1889398Courtesy of GENERAL MOTORS CORP.
