HVAC Schematics

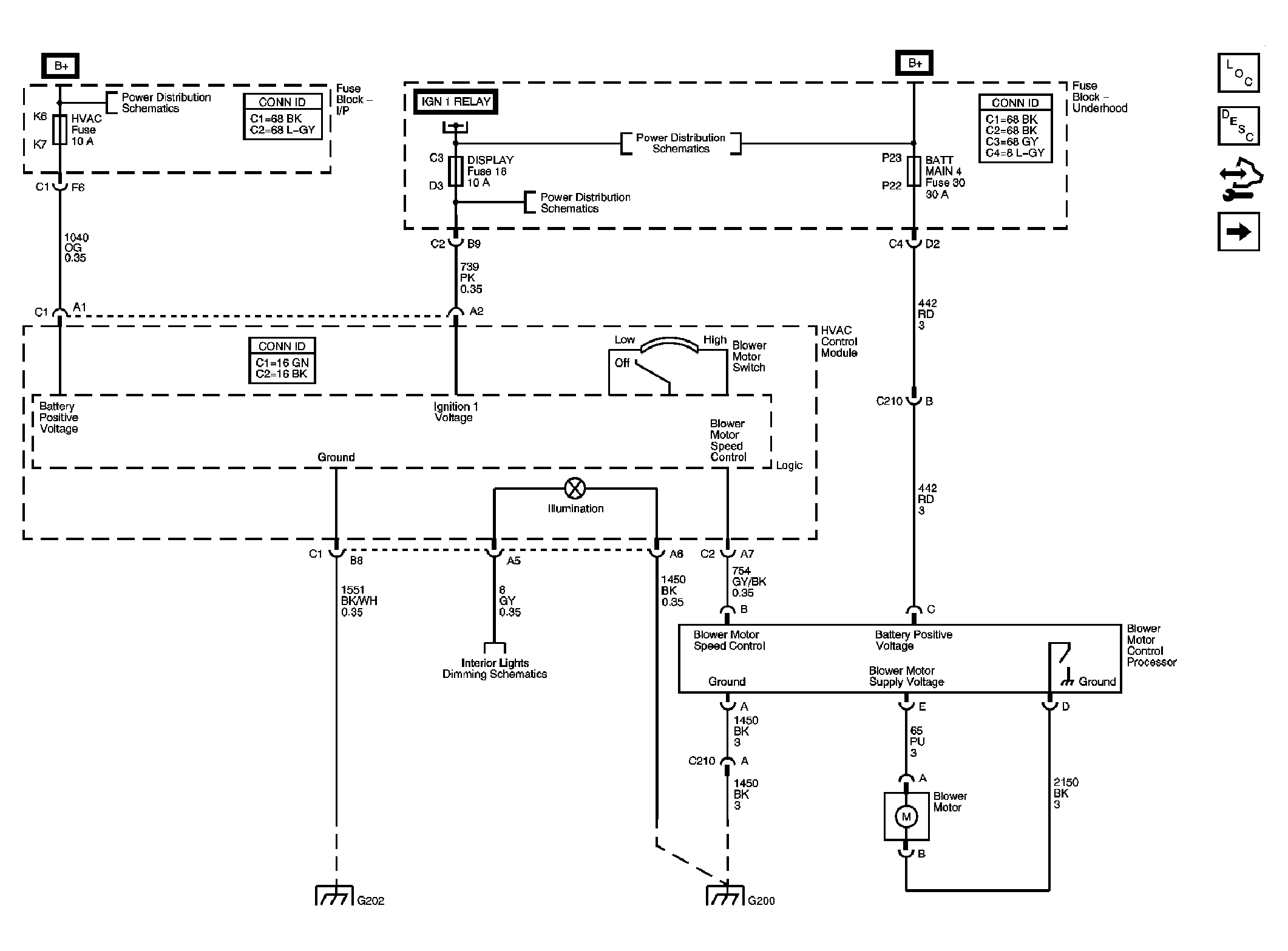

Fig 1: Power, Ground and Blower Controls Schematic
GM1889402Courtesy of GENERAL MOTORS CORP.

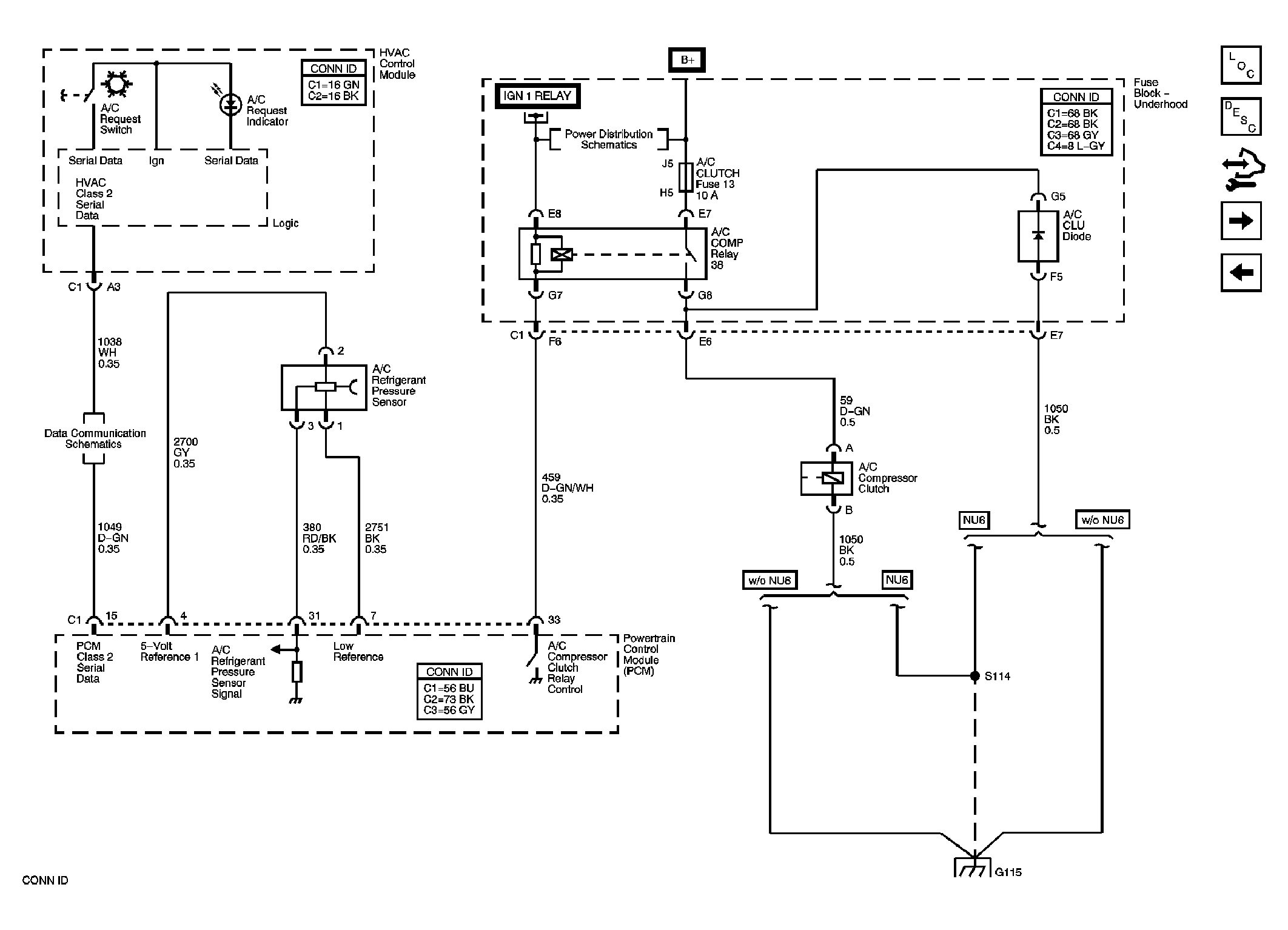

Fig 2: Compress Controls and Serial Data Schematic - L26
GM1889403Courtesy of GENERAL MOTORS CORP.

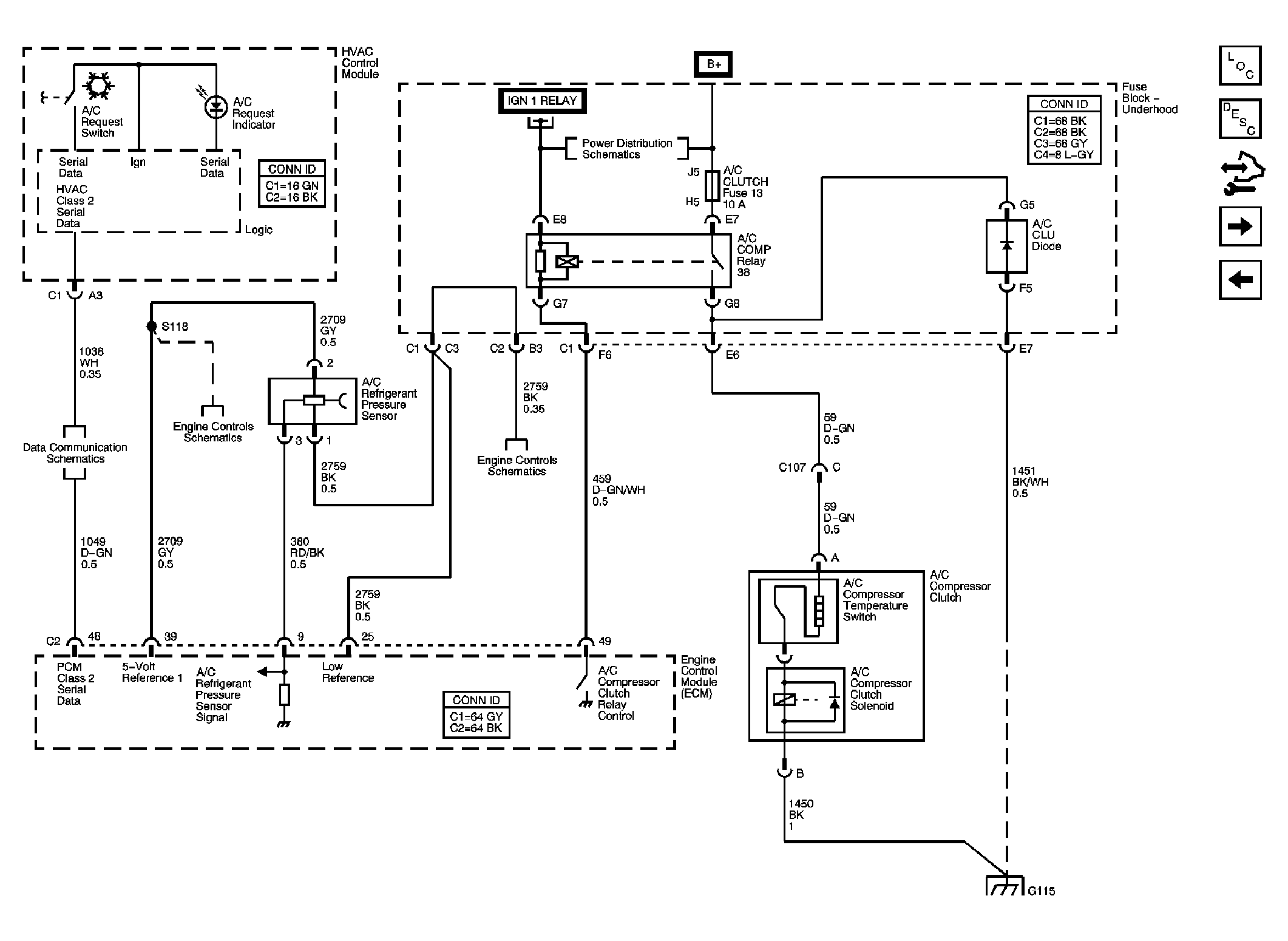

Fig 3: Compressor Controls and Serial Data Schematic - LY7
GM1889404Courtesy of GENERAL MOTORS CORP.

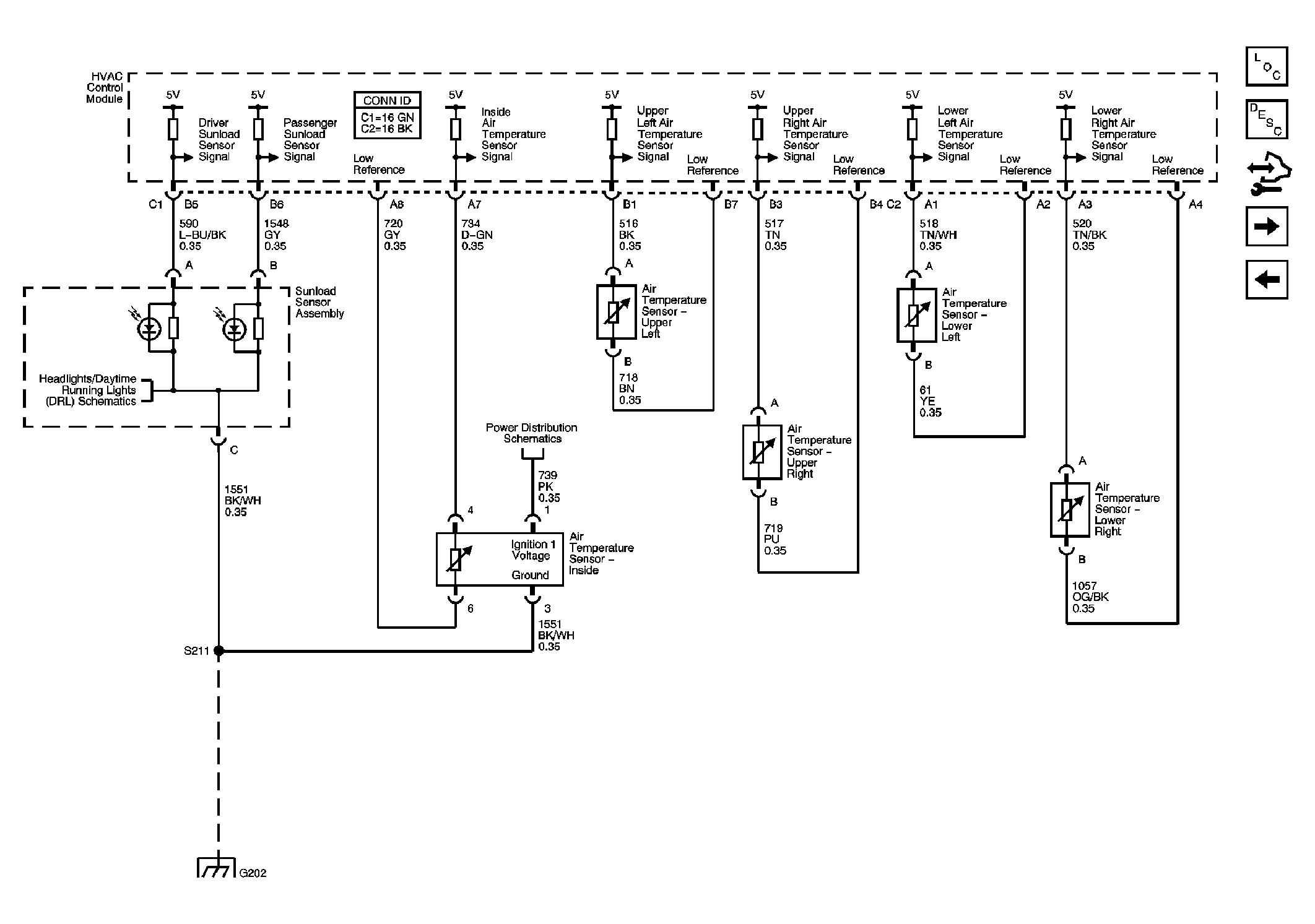

Fig 4: AIR Temperature and Sunload Sensors Schematic
GM1889405Courtesy of GENERAL MOTORS CORP.

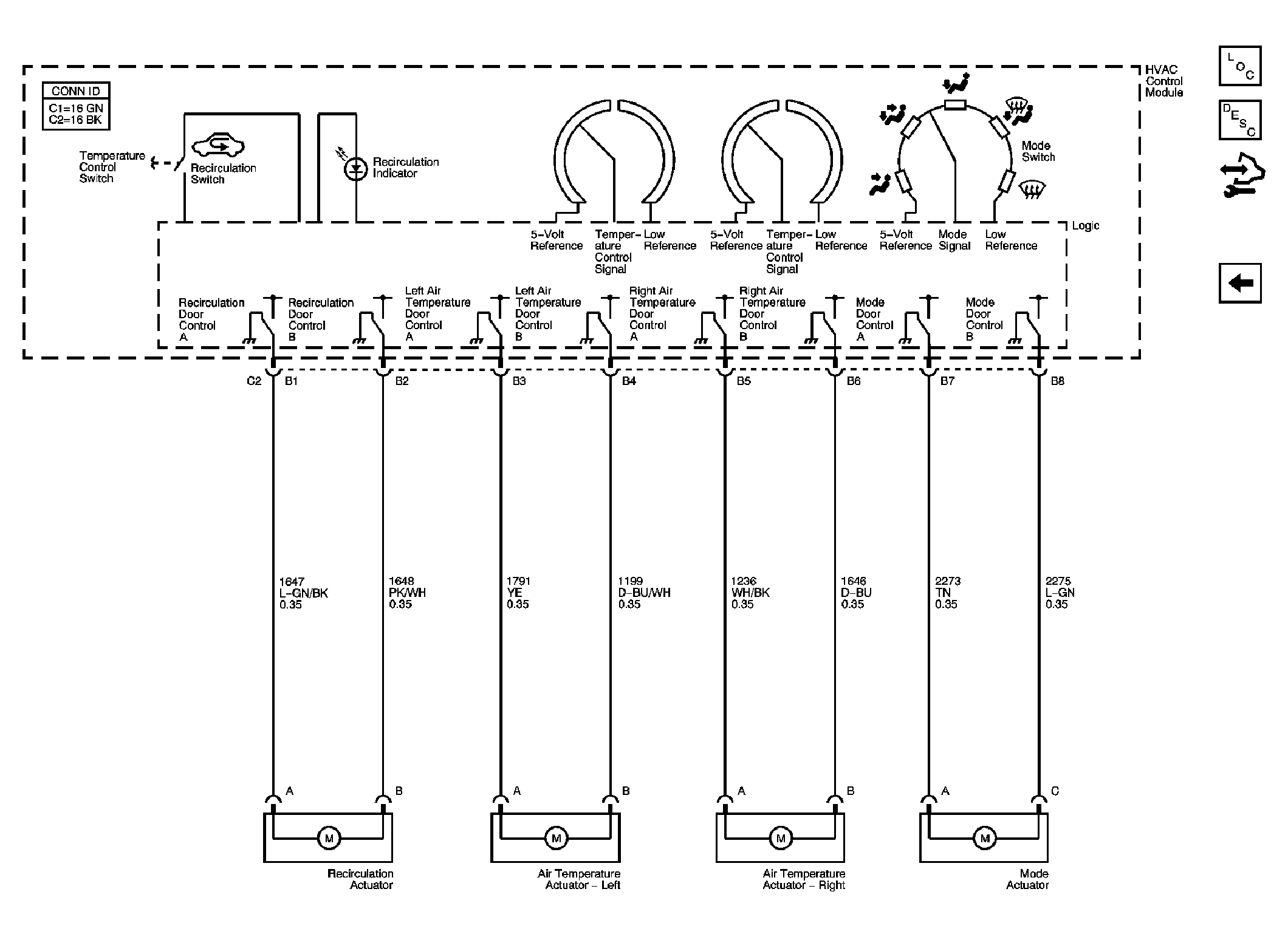

Fig 5: Air Delivery/Temperature Controls Schematic
GM1889406Courtesy of GENERAL MOTORS CORP.
