Removal Procedure

WARNING: This page is about a different variant/trim than selected.

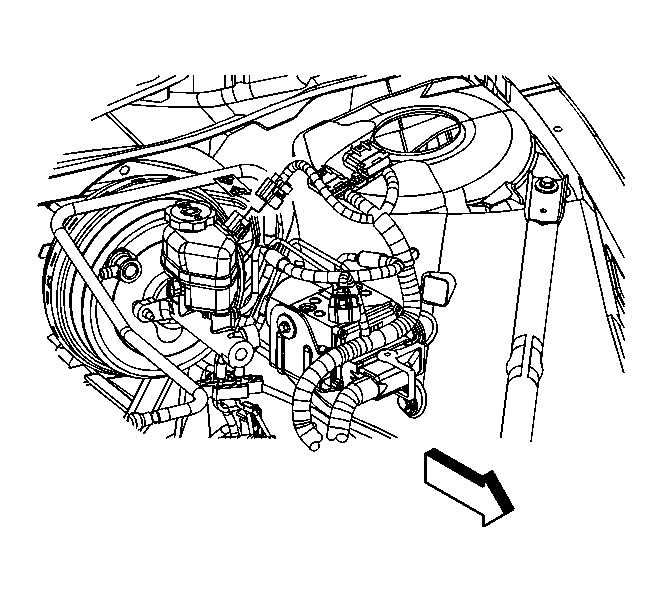

    Fig 1: Identifying Brake Booster Vacuum Sensor Electrical Connector
    GM1618878Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the brake booster vacuum sensor electrical connector.
    2. Fig 2: Identifying Brake Booster Vacuum Sensor
    GM1488348Courtesy of GENERAL MOTORS CORP.
  2. Remove the brake booster vacuum sensor (1) from the booster.
  3. Remove the brake booster vacuum sensor grommet (2) from the booster.
