Installation Procedure

WARNING: This page is about a different variant/trim than selected.

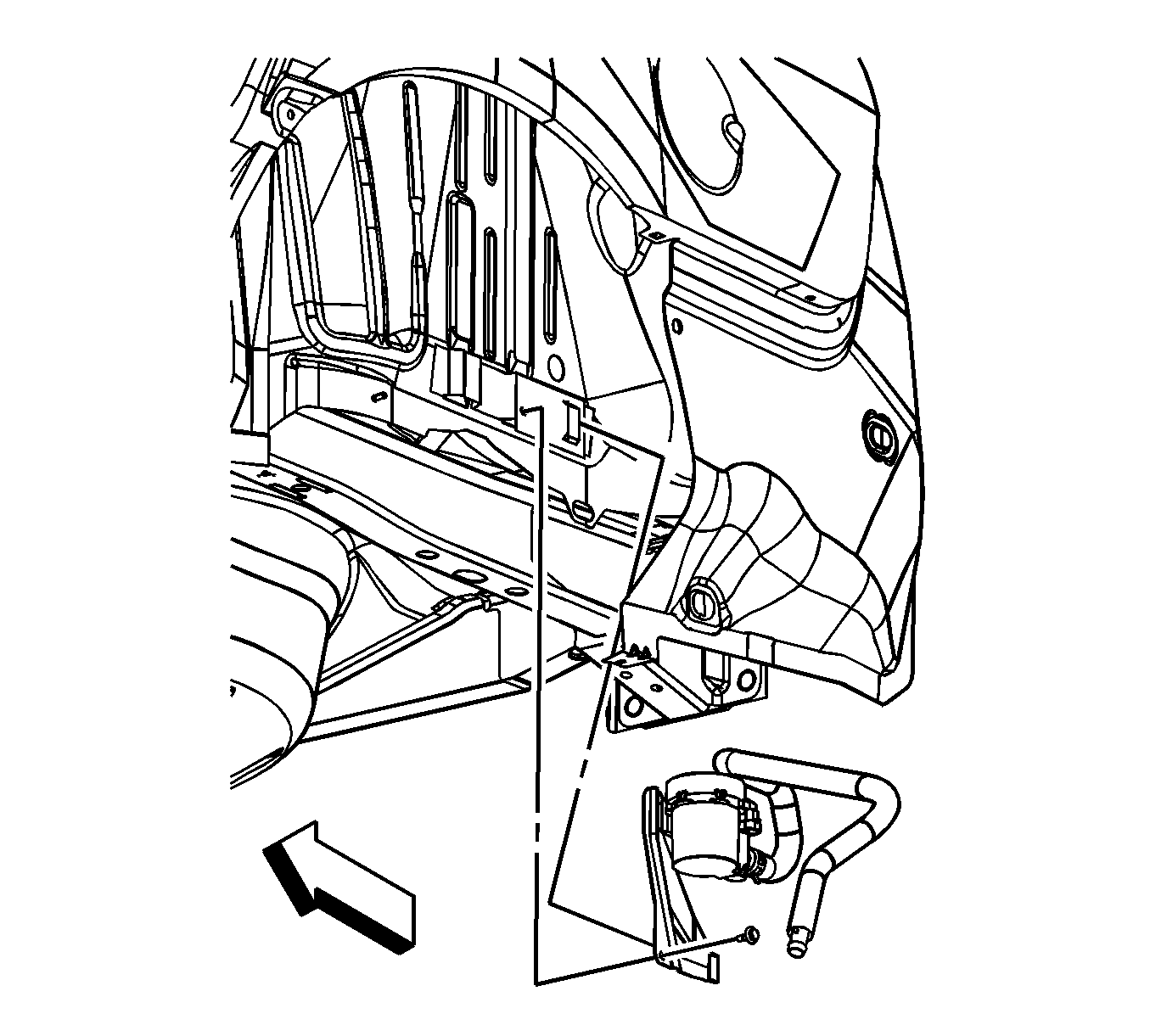

    Fig 1: Identifying EVAP Canister Vent Solenoid Valve Bracket Bolt
    GM1618940Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP canister vent solenoid valve.
    2. NOTE: Refer to Fastener Notice .
  2. Install the EVAP canister vent solenoid valve bracket bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    3. Fig 2: Disconnecting/Connecting EVAP Canister Vent Solenoid Valve To EVAP Emission Canister Hose
    GM1618911Courtesy of GENERAL MOTORS CORP.
  3. Connect the EVAP canister vent solenoid valve to the EVAP emission canister hose.

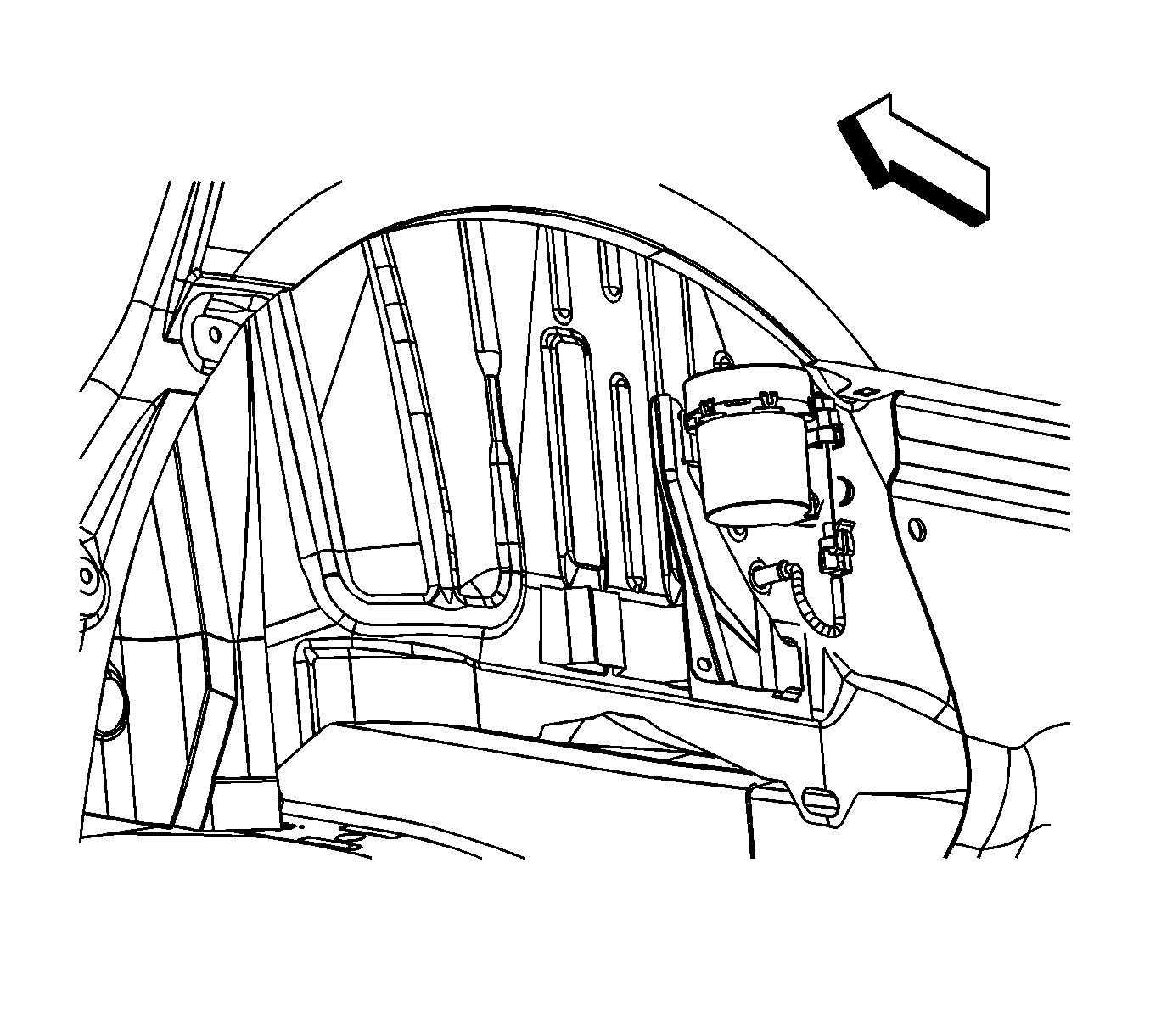

    4. Fig 3: Locating EVAP Canister Vent Solenoid Valve Electrical Connector
    GM1618963Courtesy of GENERAL MOTORS CORP.
  4. Connect the EVAP canister vent solenoid valve electrical connector.
  5. Lower the vehicle.
