Removal Procedure

WARNING: This page is about a different variant/trim than selected.

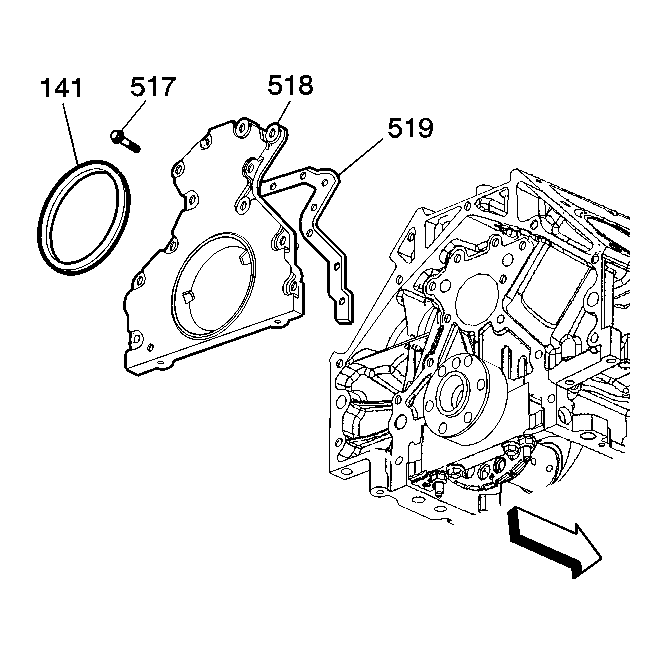

    Fig 1: View Of Engine Rear Cover, Bolts, Gasket & Oil Seal
    GM1402053Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .
  2. Remove the oil pan-to-rear cover bolts.
  3. Remove the rear cover bolts (517).
  4. Remove the rear cover (518) and gasket (519). Discard the gasket.
  5. Remove and discard the rear oil seal (141).
