Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Engine Mount Strut Bracket (Engine Side)
    GM1551860Courtesy of GENERAL MOTORS CORP.
  1. If necessary, position the engine mount strut bracket (engine side) to the cylinder head.
    2. NOTE: Refer to Fastener Notice .
  2. If necessary, install the engine mount strut bracket bolts (engine side).

    Tighten:  Tighten the bolts to 48 N.m (35 lb ft).

  3. Install the heater pipe bracket bolt.

    Tighten:  Tighten the bolt to 16 N.m (12 lb ft).

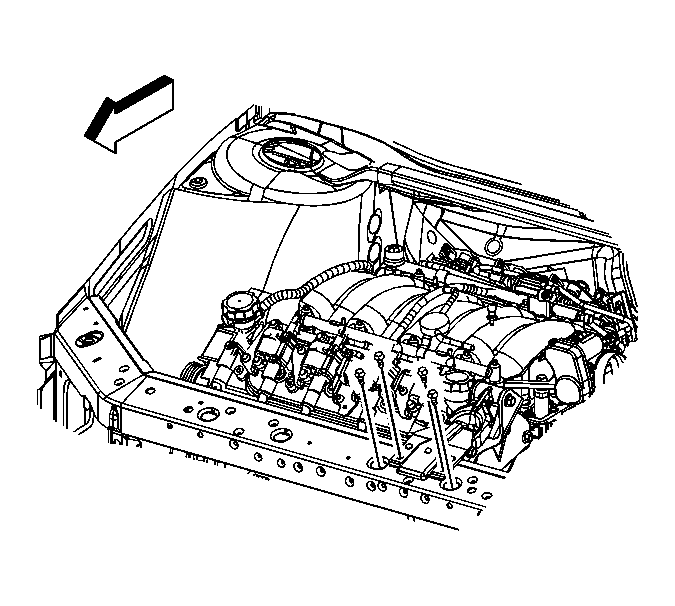

    4. Fig 2: View Of Engine Mount Strut Bracket (Body Side)
    GM1551863Courtesy of GENERAL MOTORS CORP.
  4. If necessary, position the engine mount strut bracket (body side) to the vehicle.
  5. If necessary, install the engine mount strut bracket bolts (body side).

    Tighten:  Tighten the bolt to 48 N.m (35 lb ft).

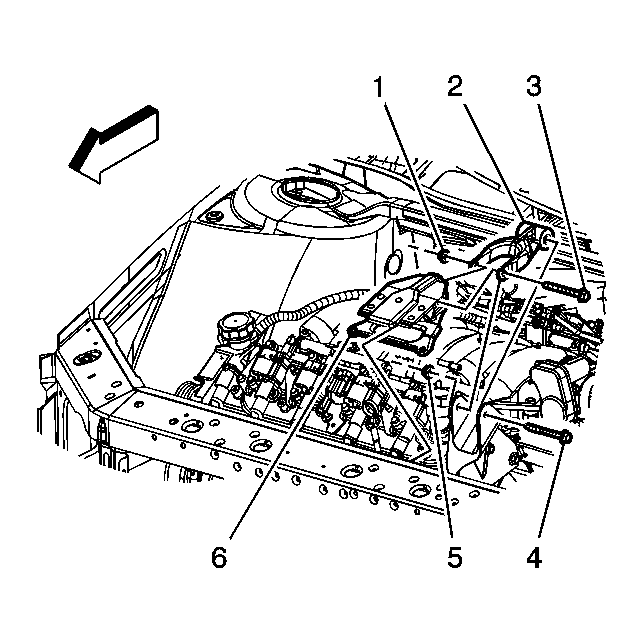

    6. Fig 3: View Of Engine Mount Strut
    GM1551861Courtesy of GENERAL MOTORS CORP.
  6. Install the engine mount strut (2).
  7. Install the rear engine mount strut bolt (4) and nut (5).

    Tighten:  Tighten the bolt/nut to 48 N.m (35 lb ft).

  8. Install the forward engine mount strut bolt (3) and nut (1).

    Tighten:  Tighten the bolt/nut to 48 N.m (35 lb ft).
