Removal Procedure

WARNING: This page is about a different variant/trim than selected.

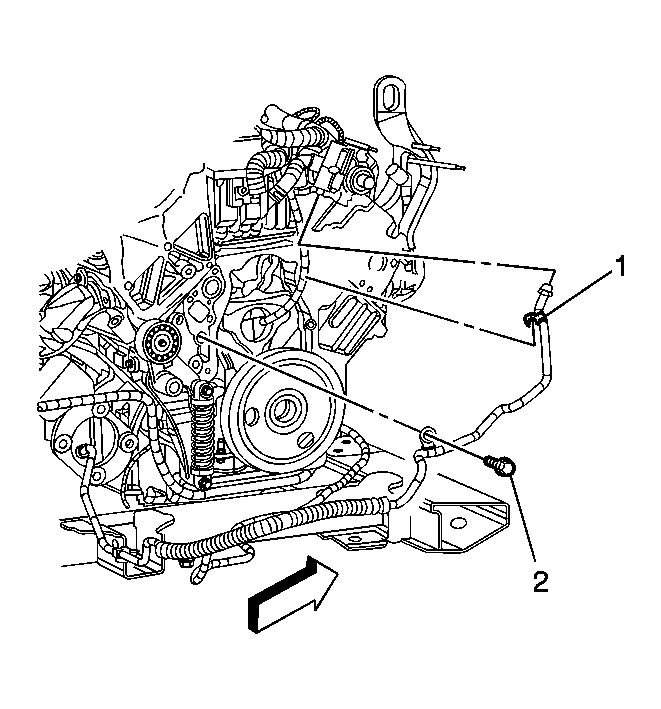

    Fig 1: Locating Power Steering Gear Inlet Hose Retainer Bolt
    GM1655133Courtesy of GENERAL MOTORS CORP.
  1. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the right wheel and tire. Refer to Tire and Wheel Removal and Installation .
  4. Remove the right engine splash shield.
  5. Remove the power steering gear inlet hose retainer bolt (2).

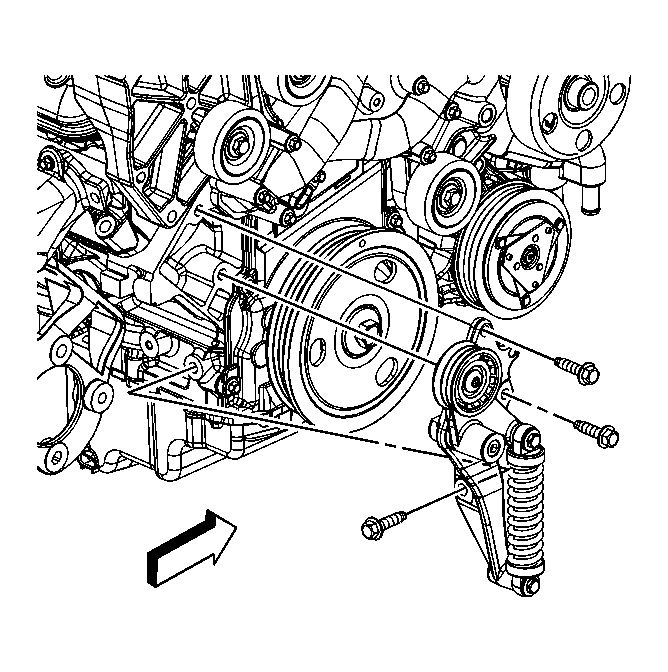

    6. Fig 2: Identifying Drive Belt Tensioner Bolts
    GM1616421Courtesy of GENERAL MOTORS CORP.
  6. Remove the drive belt tensioner bolts.
  7. Remove the drive belt tensioner.
