Removal Procedure

WARNING: This page is about a different variant/trim than selected.

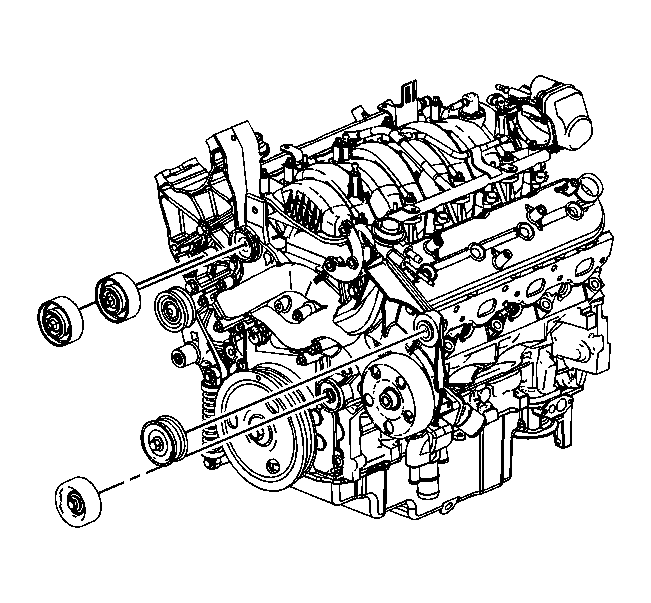

    Fig 1: Identifying Drive Belt Idler Pulley
    GM1655077Courtesy of GENERAL MOTORS CORP.
  1. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  2. Loosen the necessary drive belt idler pulley bolt.
  3. Remove the necessary drive belt idler pulley.
