Installation Procedure

WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
  • Do not lubricate the oil seal sealing surface.
  • Do not reuse the crankshaft oil seal.

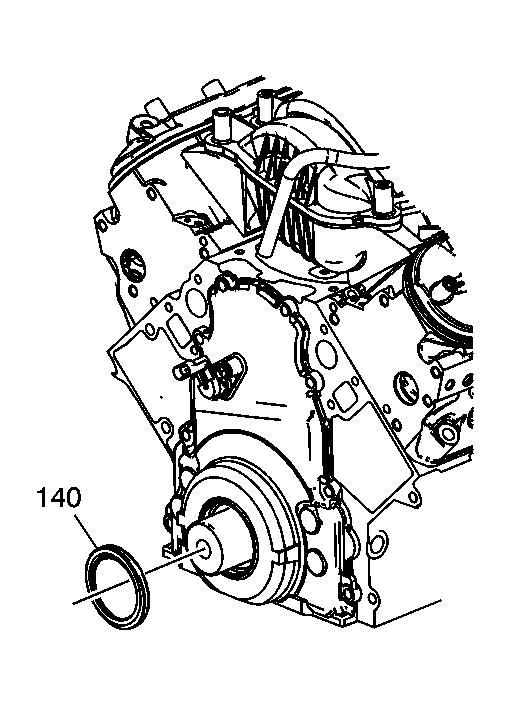

    Fig 1: Aligning Crankshaft Front Oil Seal
    GM1411958Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the outer edge of the oil seal (140) with clean engine oil.
  2. Lubricate the front cover oil seal bore with clean engine oil.

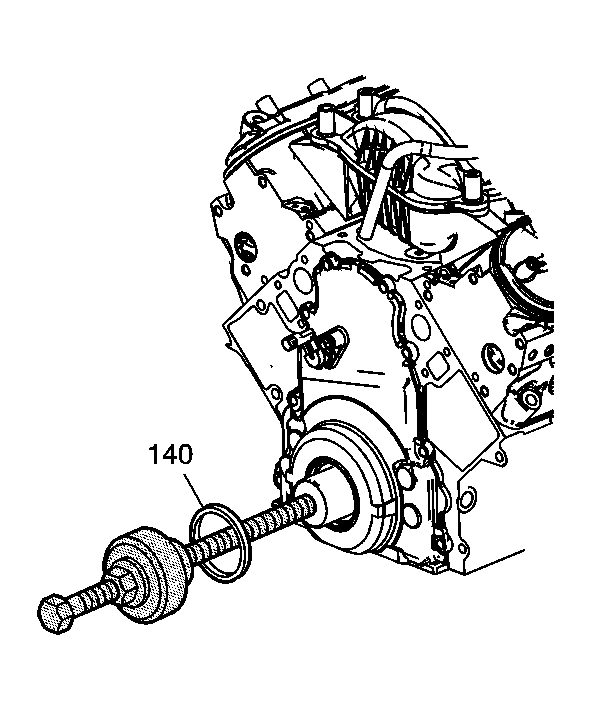

    3. Fig 2: Using Special Tools To Install Crankshaft Front Oil Seal
    GM1411961Courtesy of GENERAL MOTORS CORP.
  3. Install the crankshaft front oil seal (140) onto the J 41478  . See Special Tools .
  4. Install the J 41478  threaded rod with nut, washer, guide, and oil seal into the end of the crankshaft. See Special Tools .
  5. Using the J 41478  , install the oil seal into the cover bore. See Special Tools .
    1. Use a wrench and hold the hex on the installer bolt.
    2. Use a second wrench and rotate the installer nut clockwise until the seal bottoms in the cover bore.
    3. Remove the J 41478  . See Special Tools .
    4. Inspect the oil seal for proper installation. The oil seal should be installed evenly and completely into the front cover bore.
  6. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
