Oil Level Indicator and Tube Installation

WARNING: This page is about a different variant/trim than selected.

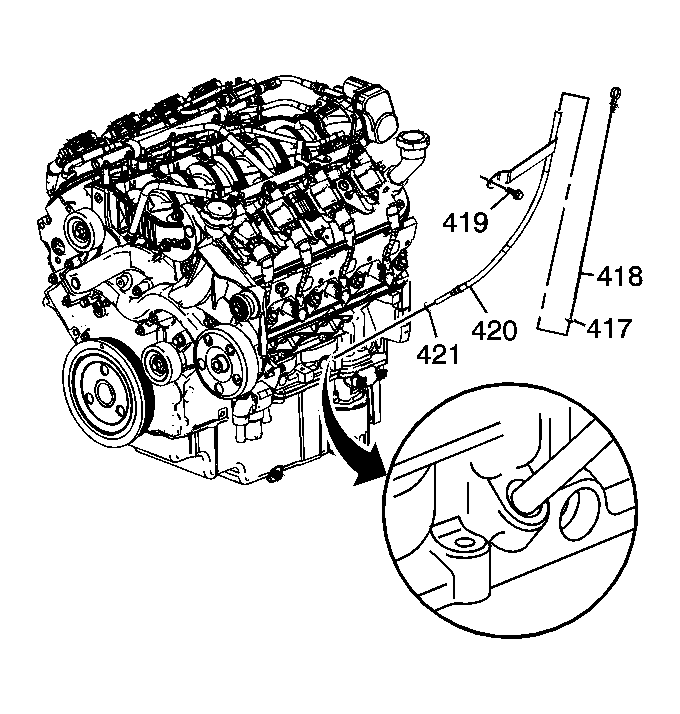

    Fig 1: View Of Oil Level Indicator & Tube
    GM1411879Courtesy of GENERAL MOTORS CORP.
  1. Inspect the O-ring seal (421) for cuts or damage. If the oil level indicator tube O-ring seal is not cut or damaged, it may be used again.
  2. Lubricate the O-ring seal with clean engine oil.
  3. Install the O-ring seal onto the oil level indicator tube (420).
  4. Install the oil level indicator tube into the engine and rotate into proper position.
    5. NOTE: Refer to Fastener Notice .
  5. Install the tube bolt (419).

    Tighten:  Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  6. Install the oil level indicator (418) into the tube.
