Cylinder Head Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

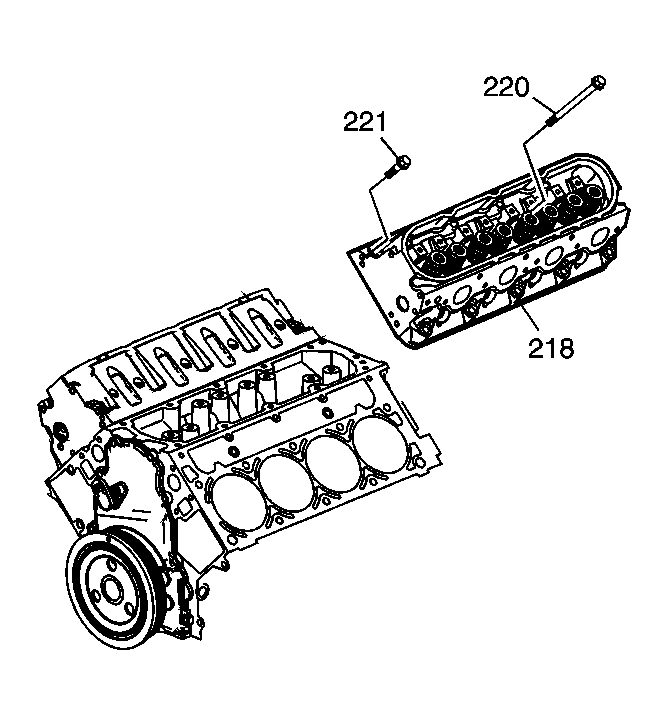

    Fig 1: View Of Cylinder Head & Bolts (Left)
    GM1411938Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The cylinder head bolts are of a torque-to-yield design and are NOT to be used again. Install NEW cylinder head bolts during assembly.
  1. Remove the cylinder head bolts (220, 221).
    2. NOTE: After removal, place the cylinder head on 2 wood blocks in order to prevent damage to the sealing surfaces.
  2. Remove the cylinder head (218).
    3. Fig 2: View Of Cylinder Head Gasket
    GM1411941Courtesy of GENERAL MOTORS CORP.
  3. Remove the gasket (217) and locating pins (230).
  4. Discard the gasket and cylinder head bolts.
