Installation Procedure

WARNING: This page is about a different variant/trim than selected.

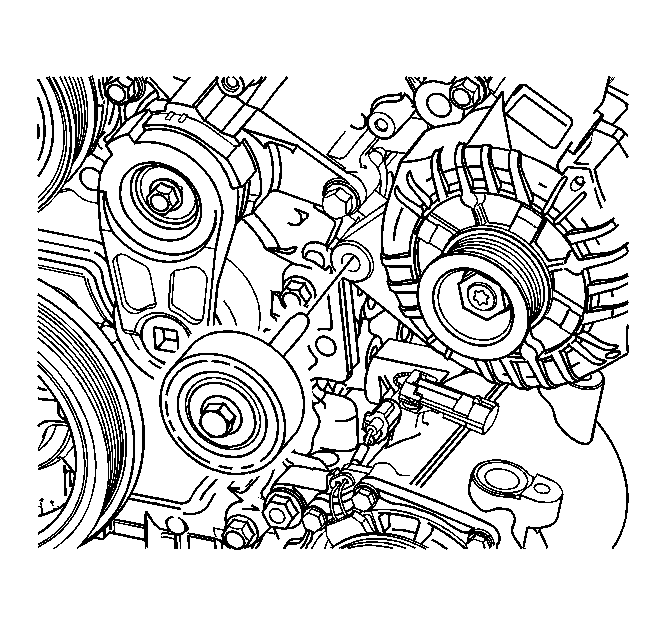

    Fig 1: Locating Drive Belt Idler Pulley
    GM1395993Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt idler pulley.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt idler pulley bolt.

    Tighten:  Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .
