Installation Procedure

WARNING: This page is about a different variant/trim than selected.

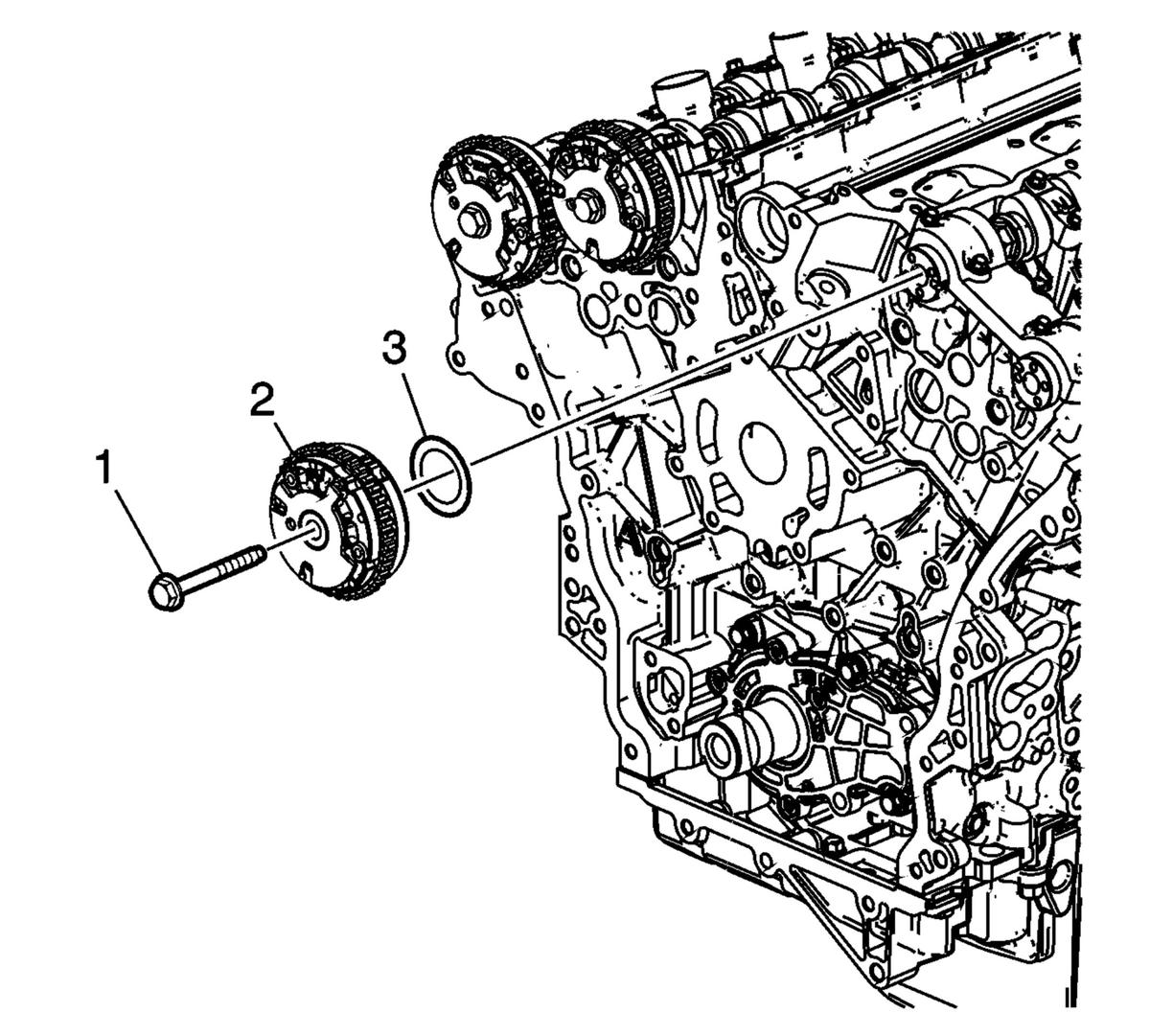

    Fig 1: View Of Camshaft Position Actuator Bolt
    GM1852296Courtesy of GENERAL MOTORS CORP.
  1. Locate the intake camshaft position actuator to the camshaft and loosely install the bolt.
    2. NOTE: Refer to Torque Reaction Against Timing Drive Chain Notice .
    IMPORTANT: Use an open-end wrench at the camshaft hex to prevent camshaft/engine rotation.
  2. Tighten the camshaft position actuator bolt. Refer to Camshaft Position Actuator Installation - Left Side Intake (Fourth Design) .
  3. Install the left exhaust camshaft actuator. Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust (First Design)  or Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust (Fourth Design) .
