Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install a NEW camshaft cover seal and NEW grommets.
    2. Fig 1: Identifying Right Camshaft Cover & Bolts
    GM902873Courtesy of GENERAL MOTORS CORP.
  2. Install the camshaft cover. Refer to Camshaft Cover Installation - Right Side .
    3. Fig 2: View Of Ignition Coils
    GM860797Courtesy of GENERAL MOTORS CORP.
  3. Install the ignition coils.

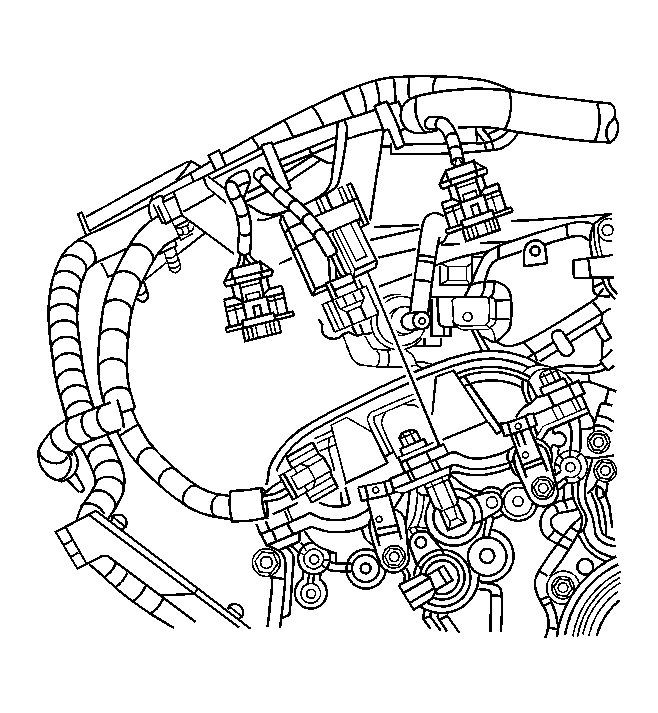

    4. Fig 3: Identifying Wiring Harness On Camshaft Cover
    GM1394030Courtesy of GENERAL MOTORS CORP.
  4. Install the wiring harness to the front of the camshaft cover.
  5. Install the wiring harness conduit retainers to the wiring harness conduit.

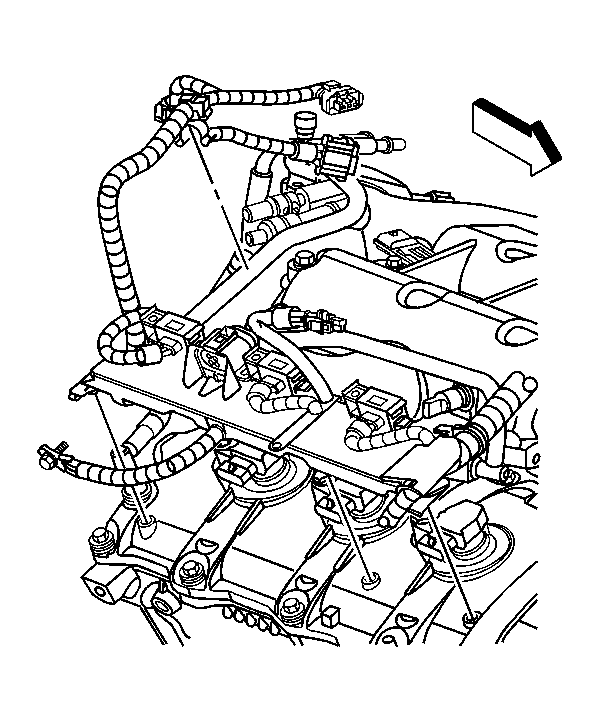

    6. Fig 4: View Of Wiring Conduit Retainers
    GM1394034Courtesy of GENERAL MOTORS CORP.
  6. Install the wiring harness to the side of the camshaft cover.
    7. Fig 5: Locating Ignition Coil Electrical Connectors
    GM1394028Courtesy of GENERAL MOTORS CORP.
  7. Connect the ignition coil electrical connectors.
  8. Install the upper intake manifold with the lower intake manifold. Refer to Lower Intake Manifold Replacement .
