Installation Procedure

WARNING: This page is about a different variant/trim than selected.

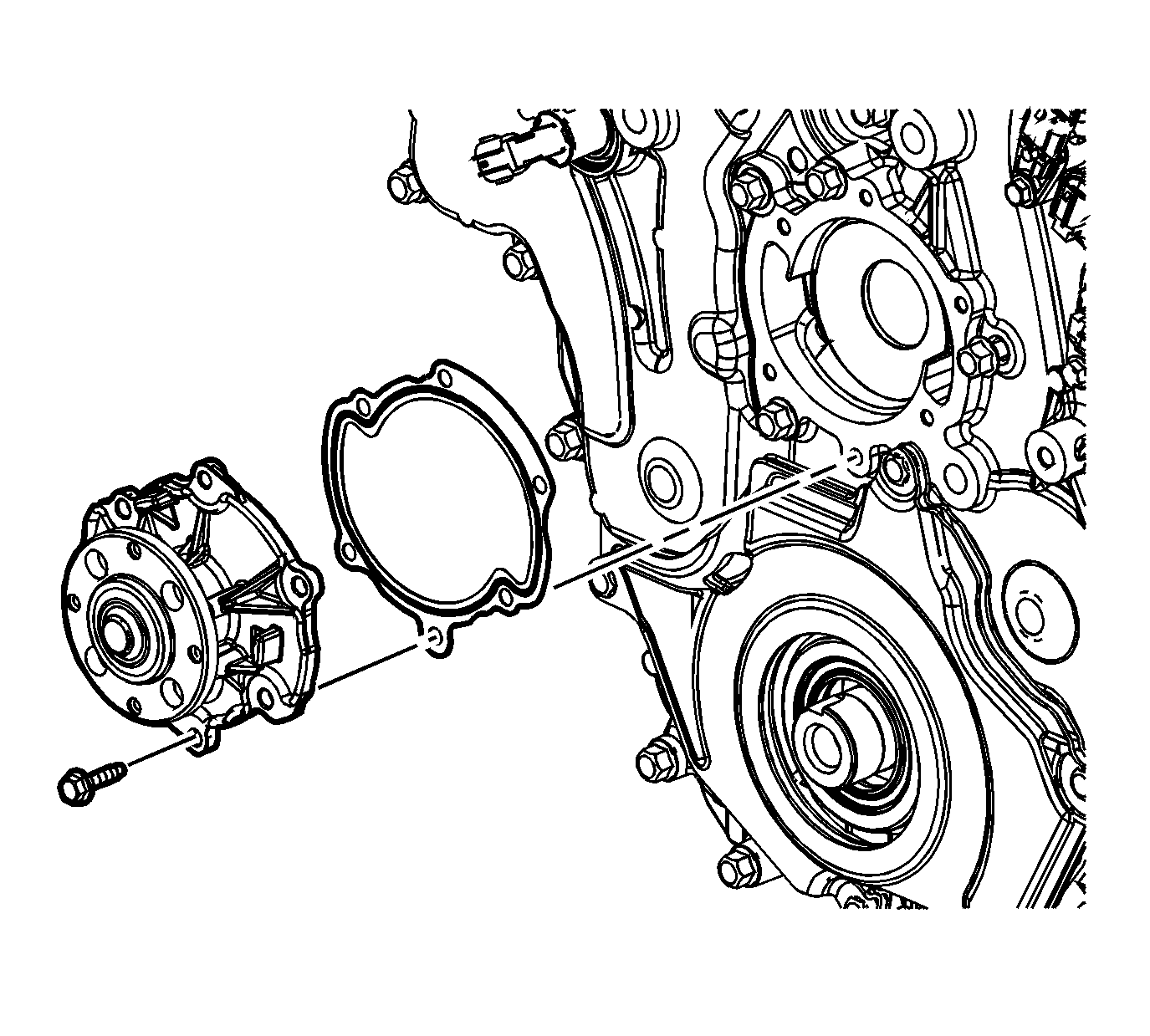

    Fig 1: View Of Water Pump, Gasket & Bolt
    GM1855659Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the engine front cover and water pump are clear of old gasket material.
  2. Place a new water pump gasket on the water pump.
  3. Place the water pump in position on the front cover.
    4. NOTE: Refer to Fastener Notice .
  4. Install the water pump bolts.

    Tighten:  Tighten the water pump bolts to 10 N.m (89 lb in).

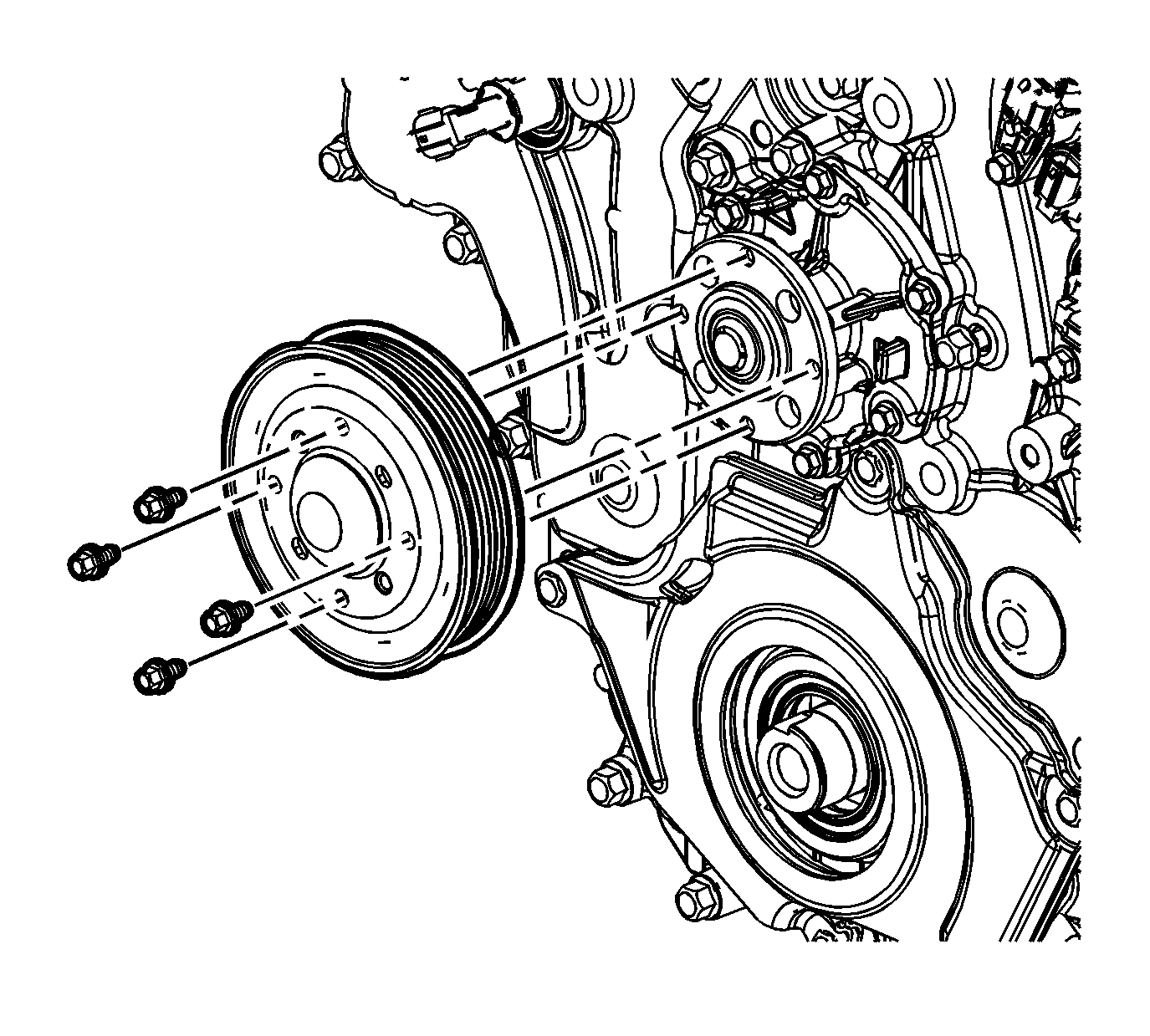

    5. Fig 2: View Of Water Pump Pulley & Bolts
    GM1855658Courtesy of GENERAL MOTORS CORP.
  5. Install the water pump pulley.
  6. Loosely install the water pump pulley bolts.
    7. Fig 3: Identifying Special Tool - EN 46104
    GM1855657Courtesy of GENERAL MOTORS CORP.
  7. Install the EN 46104  (1) onto the water pump pulley.

    Tighten:  Tighten the water pump pulley bolts to 10 N.m (89 lb in).
