Secondary Camshaft Drive Chain Shoe Installation - Left Side (Fourth Design)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Left Secondary Camshaft Drive Chain Shoe
    GM1306380Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the left secondary camshaft drive chain shoe (2) is being installed.

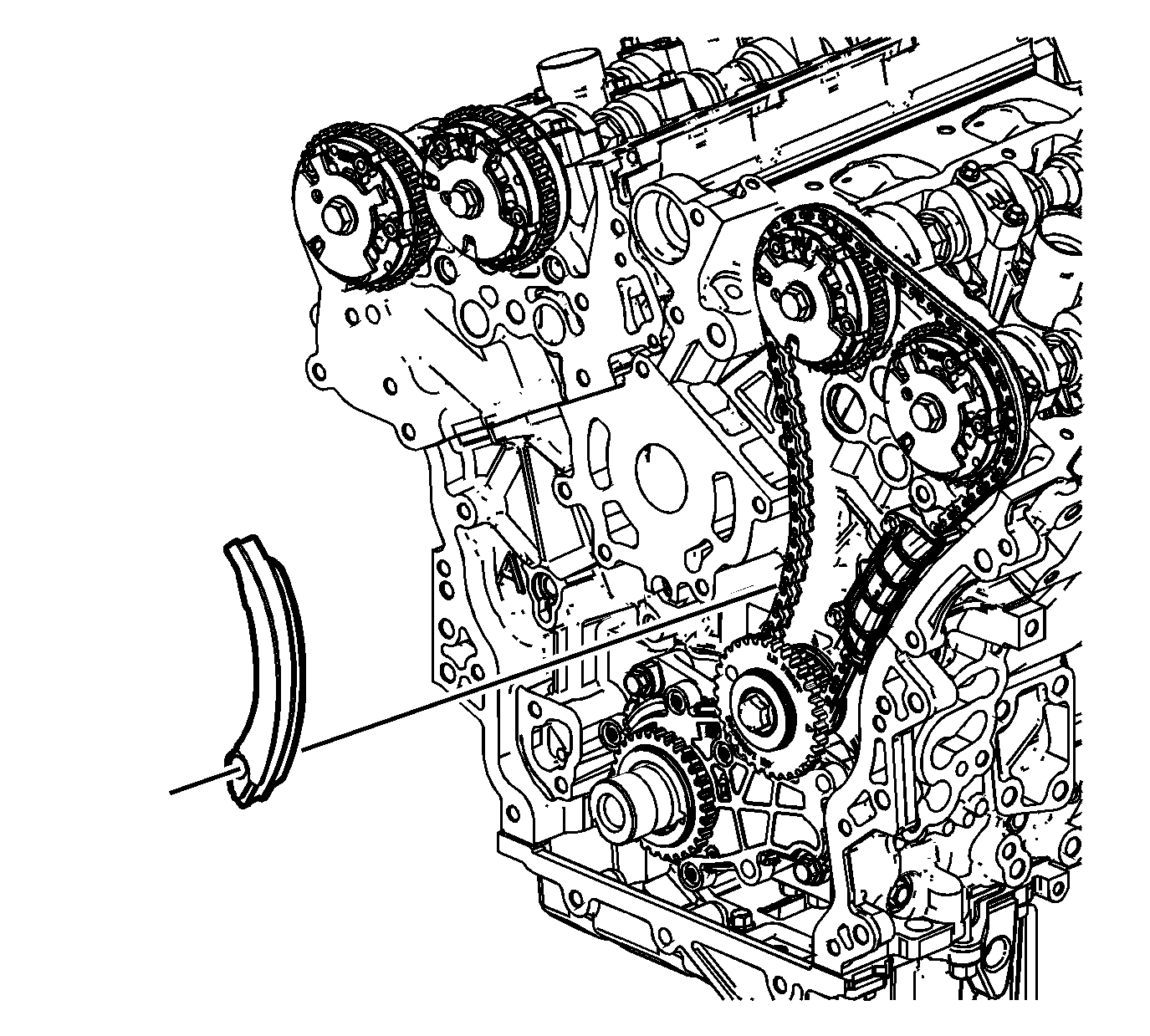

    2. Fig 2: View Of Secondary Camshaft Drive Chain Shoe
    GM1852377Courtesy of GENERAL MOTORS CORP.
  2. Position the left secondary camshaft drive chain shoe.

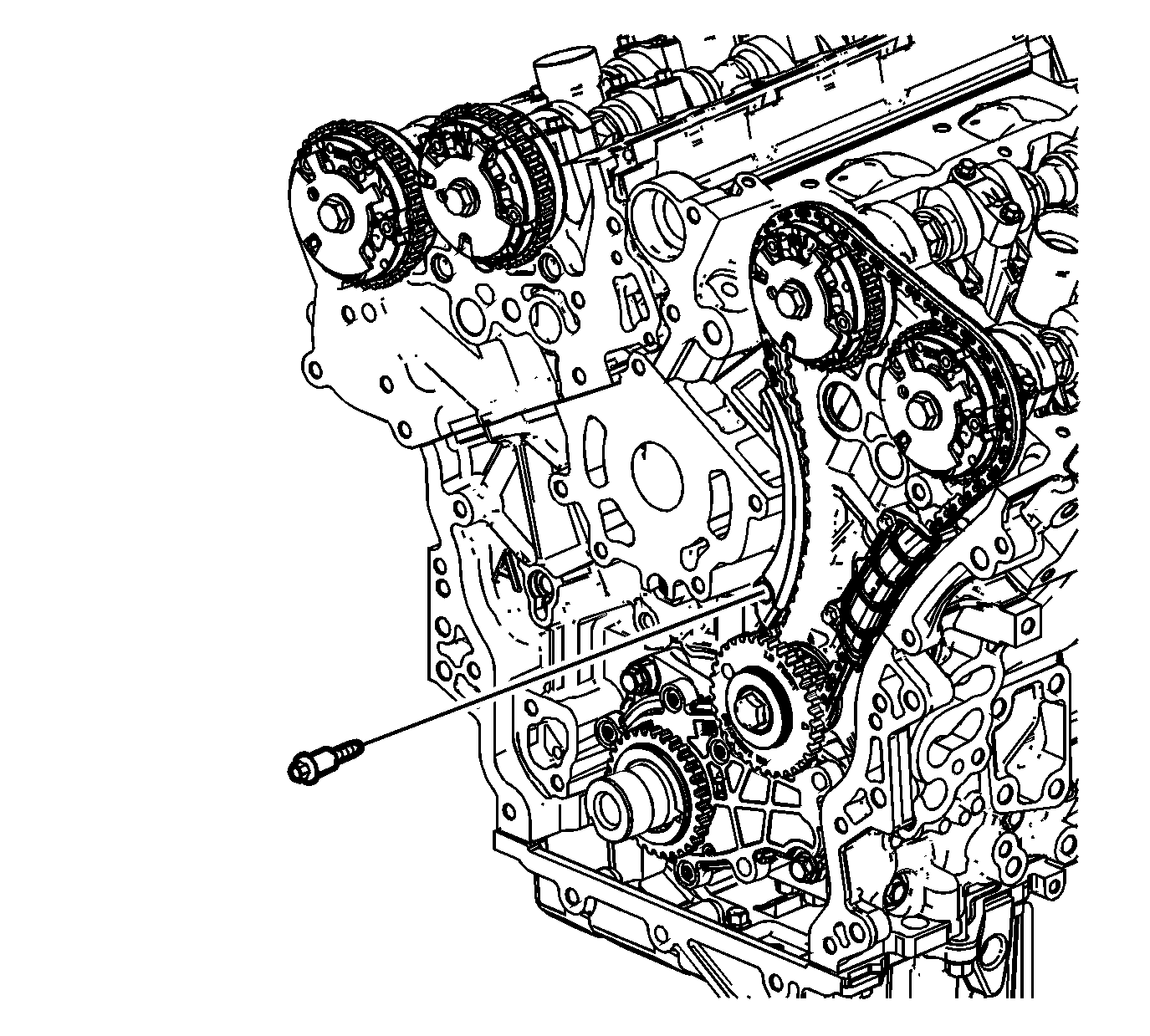

    3. Fig 3: Identifying Secondary Camshaft Drive Chain Shoe Bolt
    GM1852378Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the secondary camshaft drive chain shoe bolt.

    Tighten:  Tighten the secondary camshaft drive chain shoe bolt to 23 N.m (17 lb ft).
