Intake Manifold Installation

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Lower Intake Manifold Gasket

Courtesy of GENERAL MOTORS CORP.

Fig 2: View Of Intake Manifold

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Intake Manifold Short Bolts

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Intake Manifold Long Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the intake manifold long bolts.
Tighten: Tighten the intake manifold bolts to 23 N.m (17 lb ft).

Fig 5: Identifying Fresh Air PCV Hose

Courtesy of GENERAL MOTORS CORP.

Install and connect the fresh air positive crankcase ventilation (PCV) hose to the left camshaft cover fitting.

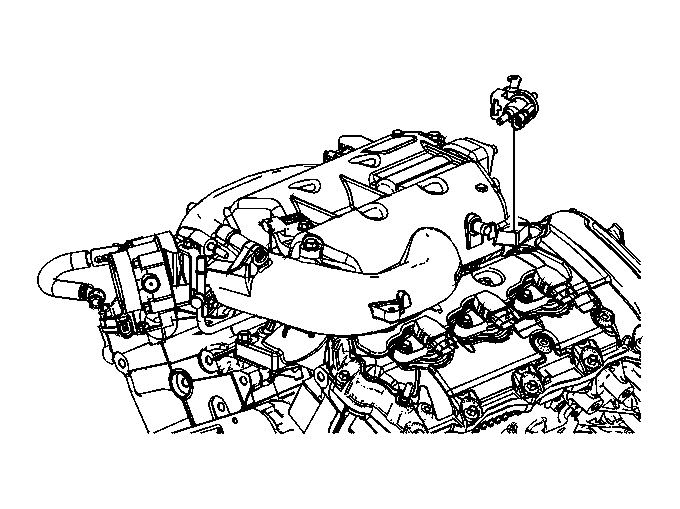

Fig 6: View Of EVAP Solenoid

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EVAP Solenoid Bolt

Courtesy of GENERAL MOTORS CORP.

Install the EVAP solenoid bolt.
Tighten: Tighten the EVAP solenoid bolt to 10 N.m (89 lb in).

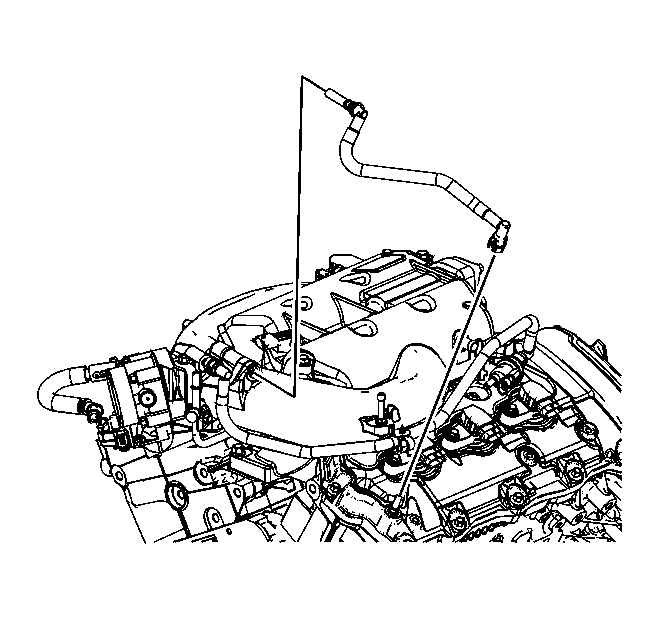

Fig 8: Identifying Intake Manifold-To-Solenoid EVAP Hose

Courtesy of GENERAL MOTORS CORP.

Install and connect the intake manifold-to-solenoid EVAP hose to the intake manifold and to the EVAP solenoid.

Fig 9: Identifying Intake Manifold-To-Solenoid EVAP Hose Bracket Ballstud Bolt

Courtesy of GENERAL MOTORS CORP.

Install the intake manifold-to-solenoid EVAP hose bracket ballstud bolt to the intake manifold.
Tighten: Tighten the intake manifold-to-solenoid EVAP hose bracket bolt to 10 N.m (89 lb in).

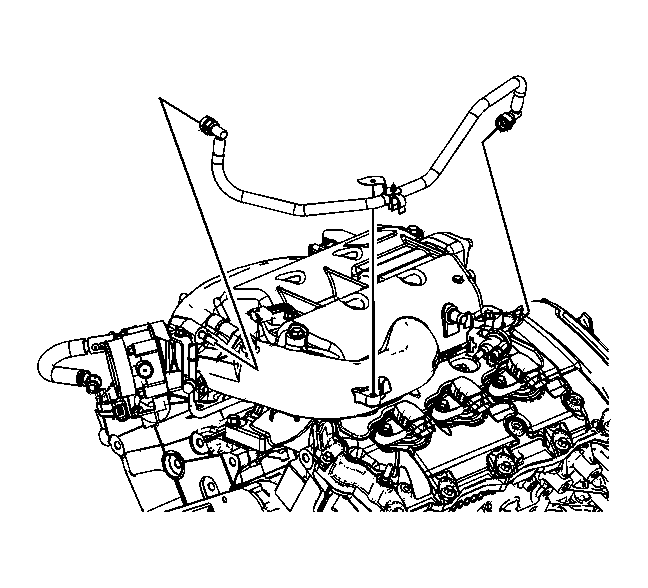

Fig 10: Identifying Dirty Air Positive Crankcase Ventilation (PCV) Hose

Courtesy of GENERAL MOTORS CORP.

Install and connect the dirty air PCV hose to the intake manifold and to the right camshaft cover fitting.
