Exhaust Manifold Installation - Right Side

WARNING: This page is about a different variant/trim than selected.

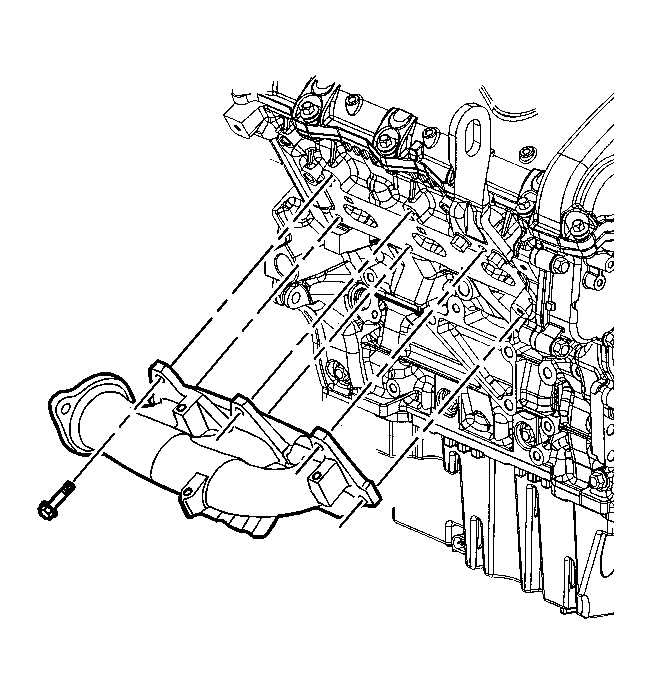

    Fig 1: Identifying Exhaust Manifold Bolts To Right Cylinder Head
    GM1395939Courtesy of GENERAL MOTORS CORP.
  1. Position a NEW exhaust manifold gasket onto the right exhaust manifold.
  2. Install the exhaust manifold bolts into the right exhaust manifold.
  3. Place the right exhaust manifold, exhaust manifold gasket and bolts as an assembly in position on the right cylinder head.
    4. NOTE: Refer to Fastener Notice .
  4. Install the exhaust manifold bolts into the right cylinder head.

    Tighten:  Tighten the exhaust manifold bolts to 25 N.m (18 lb ft).

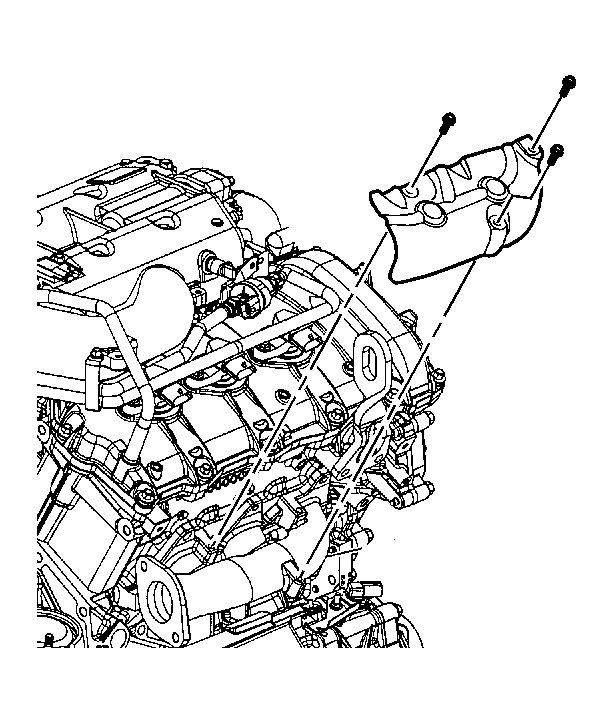

    5. Fig 2: View Of Right Exhaust Manifold Heat Shield & Bolts
    GM1395938Courtesy of GENERAL MOTORS CORP.
  5. Place the right exhaust manifold heat shield in position.
  6. Install the exhaust manifold heat shield bolts.

    Tighten:  Tighten the exhaust manifold heat shield bolts to 10 N.m (89 lb in).
