Exhaust Manifold Installation - Left Side

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Exhaust Manifold Bolts

Courtesy of GENERAL MOTORS CORP.

Position a NEW exhaust manifold gasket onto the left exhaust manifold.
Install the exhaust manifold bolts into the left exhaust manifold.
Place the left exhaust manifold, exhaust manifold gasket and bolts as an assembly in position on the left cylinder head.

NOTE: Refer to Fastener Notice .

Install the exhaust manifold bolts into the left cylinder head.
Tighten: Tighten the exhaust manifold bolts to 25 N.m (18 lb ft).

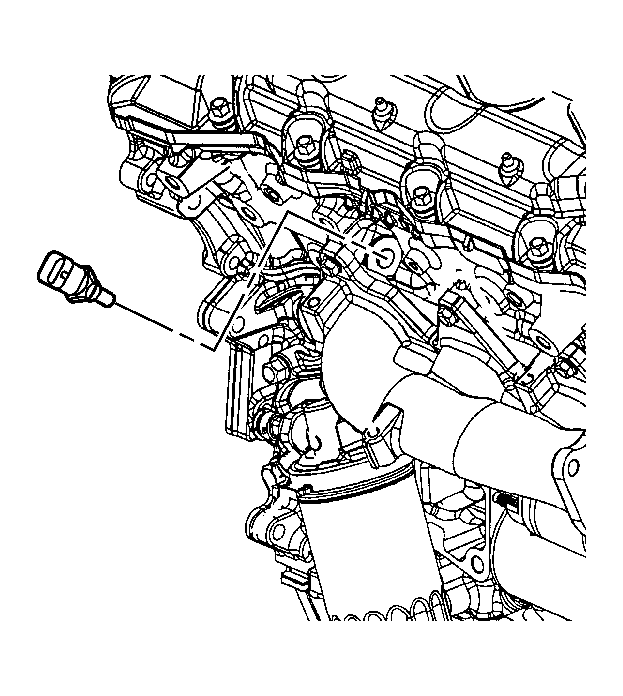

Fig 2: Identifying Engine Coolant Temperature (ECT) Sensor

Courtesy of GENERAL MOTORS CORP.

Install the engine coolant temperature (ECT) sensor.
Tighten: Tighten the ECT sensor to 22 N.m (16 lb ft).

Fig 3: Identifying Left Exhaust Manifold Heat Shield Bolts

Courtesy of GENERAL MOTORS CORP.

Place the left exhaust manifold heat shield in position.
Install the exhaust manifold heat shield bolts.
Tighten: Tighten the exhaust manifold heat shield bolts to 10 N.m (89 lb in).

Fig 4: View Of Left Torque Strut Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the left torque strut bracket.
Install the left torque strut bracket bolts.
Tighten: Tighten the left torque strut bracket bolts to 50 N.m (37 lb ft).
