Engine Coolant Thermostat Housing Installation

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Thermostat Housing Gasket
    GM1412155Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW gasket onto the thermostat housing.

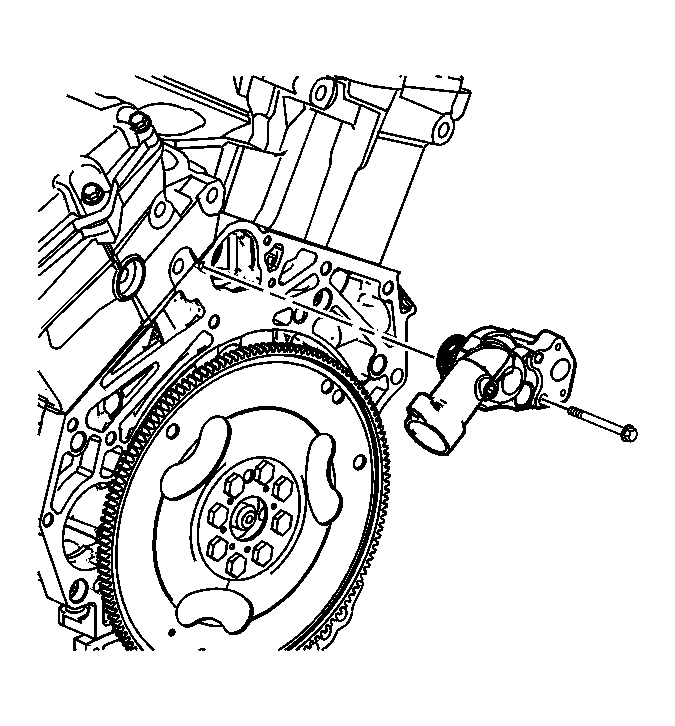

    2. Fig 2: View Of Thermostat Housing & Bolts
    GM1412152Courtesy of GENERAL MOTORS CORP.
  2. Install the thermostat housing.
    3. NOTE: Refer to Fastener Notice .
  3. Install the thermostat housing bolts.

    Tighten:  Tighten the thermostat housing bolts to 10 N.m (89 lb in).

    4. Fig 3: Identifying Heater Inlet/Outlet Pipe Gasket & O-Ring
    GM1412151Courtesy of GENERAL MOTORS CORP.
  4. Install a NEW gasket and O-ring onto the heater inlet/outlet pipe assembly.

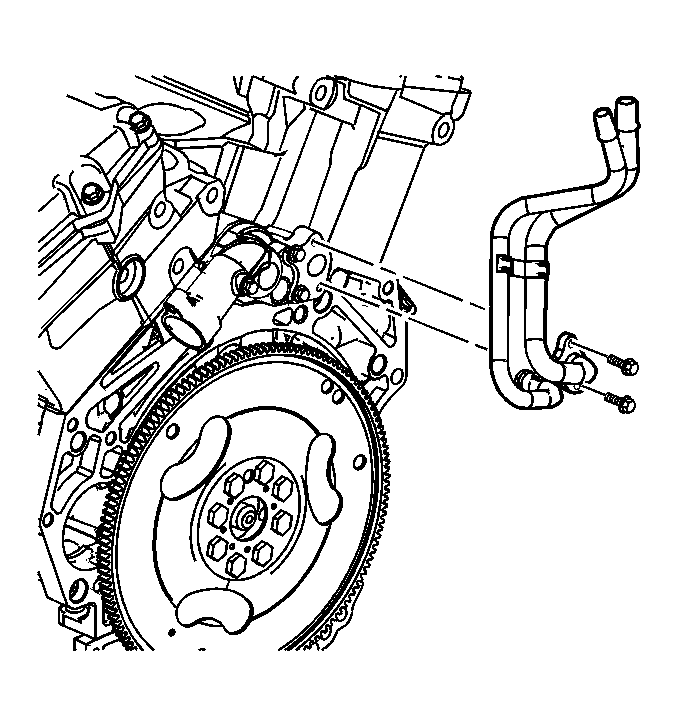

    5. Fig 4: View Of Heater Inlet/Outlet Pipe Assembly & Bolts
    GM1412150Courtesy of GENERAL MOTORS CORP.
  5. Install the heater inlet/outlet pipe assembly.
  6. Install the heater inlet/outlet pipe assembly bolts.

    Tighten:  Tighten the heater inlet/outlet pipe assembly bolts to 10 N.m (89 lb in).
