Drive Belt Tensioner Installation

WARNING: This page is about a different variant/trim than selected.

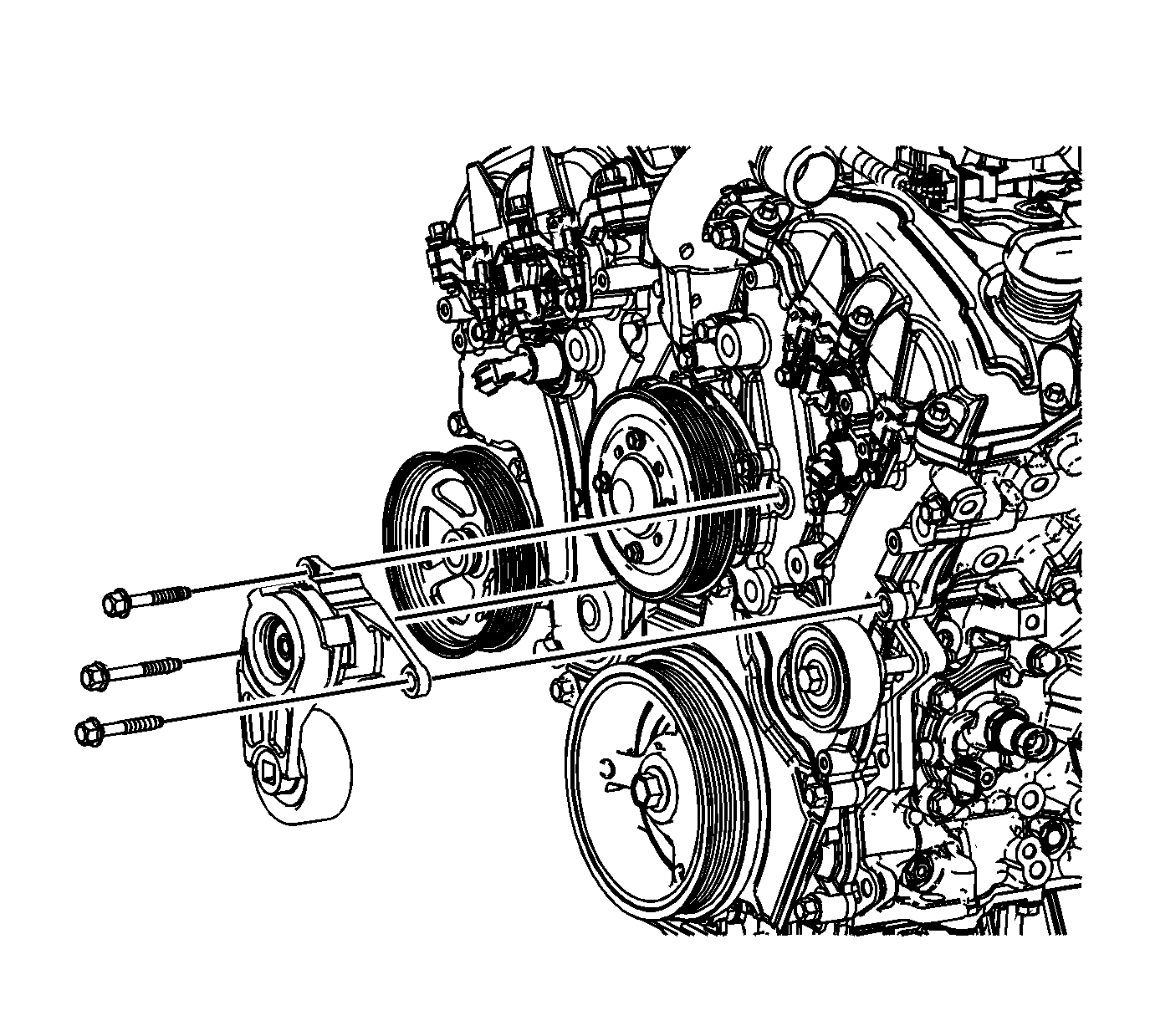

    Fig 1: View Of Drive Belt Tensioner
    GM1864407Courtesy of GENERAL MOTORS CORP.
  1. Place the left drive belt tensioner assembly in position to the engine front cover.
    2. NOTE: Refer to Fastener Notice .
  2. Install the left drive belt tensioner bracket bolts.

    Tighten:  Tighten the left drive belt tensioner bracket bolts to 23 N.m (17 lb ft).
