Drive Belt Idler Pulley Installation

WARNING: This page is about a different variant/trim than selected.

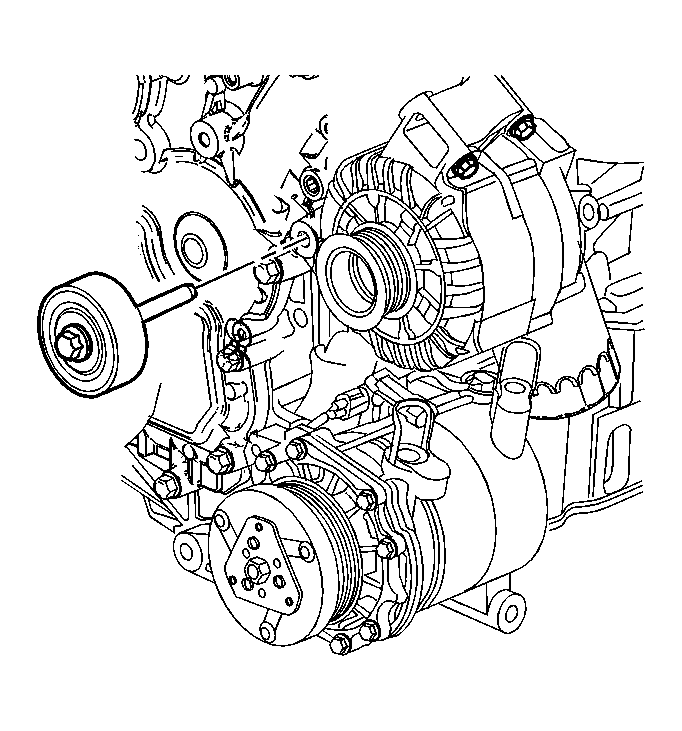

    Fig 1: Identifying Drive Belt Idler Pulley
    GM1395910Courtesy of GENERAL MOTORS CORP.
  1. Place the drive belt idler pulley and bolt in position through the generator mounting hole and into the engine front cover.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt idler pulley bolt.

    Tighten:  Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).

  3. Tighten the generator bolts.

    Tighten:  Tighten the generator bolts to 50 N.m (37 lb ft).
