Camshaft Intermediate Drive Chain Idler Installation - Left Side (Fourth Design)

WARNING: This page is about a different variant/trim than selected.

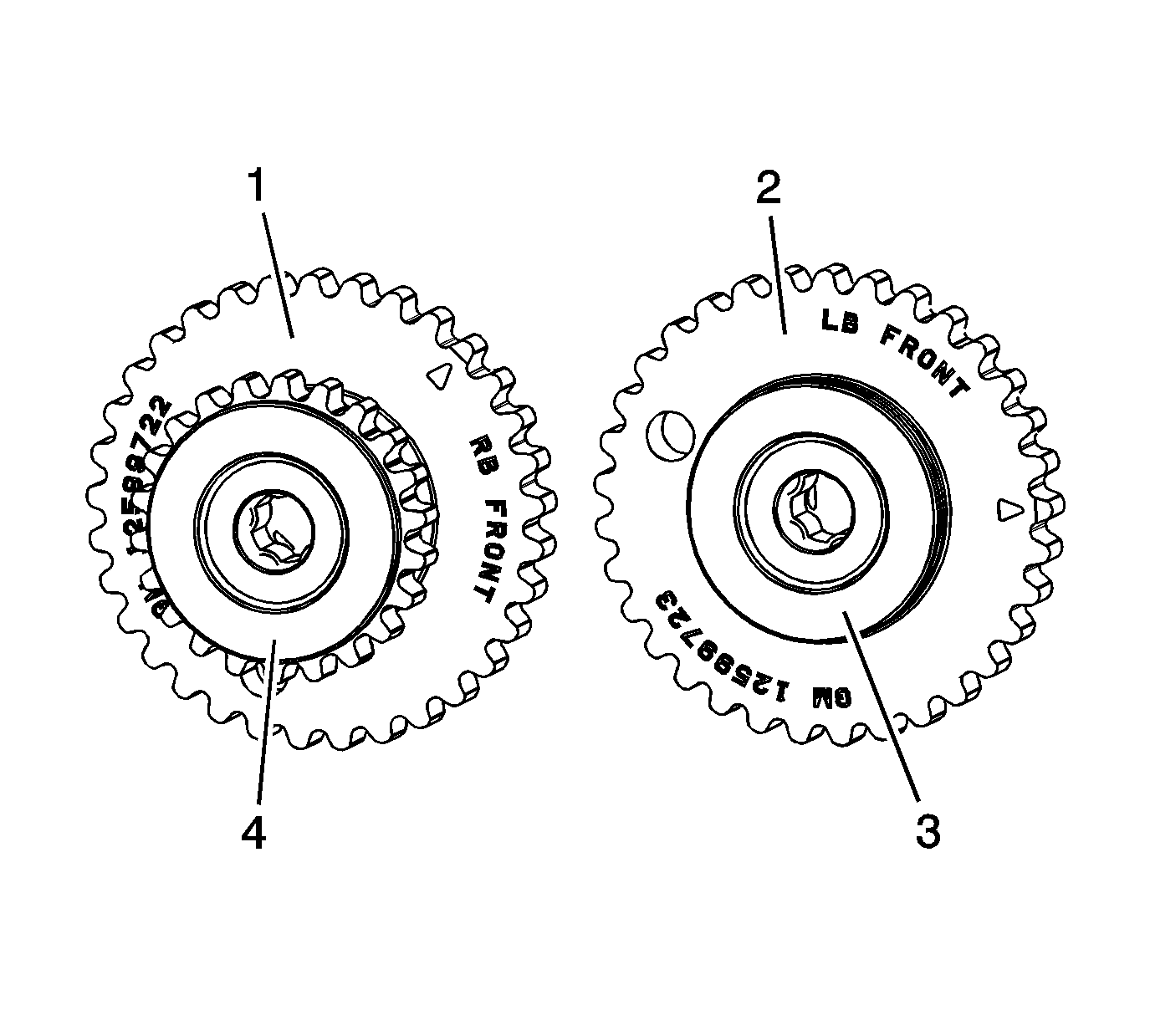

    Fig 1: View Of Camshaft Intermediate Drive Chain Idler - Left Side (Fourth Design)
    GM1852309Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the left camshaft intermediate drive chain idler (2) is being installed. The recessed hub (3) and the larger sprocket of the left camshaft intermediate drive chain idler is installed outward. The raised hub and the smaller sprocket of the left camshaft intermediate drive chain idler is installed towards the block.

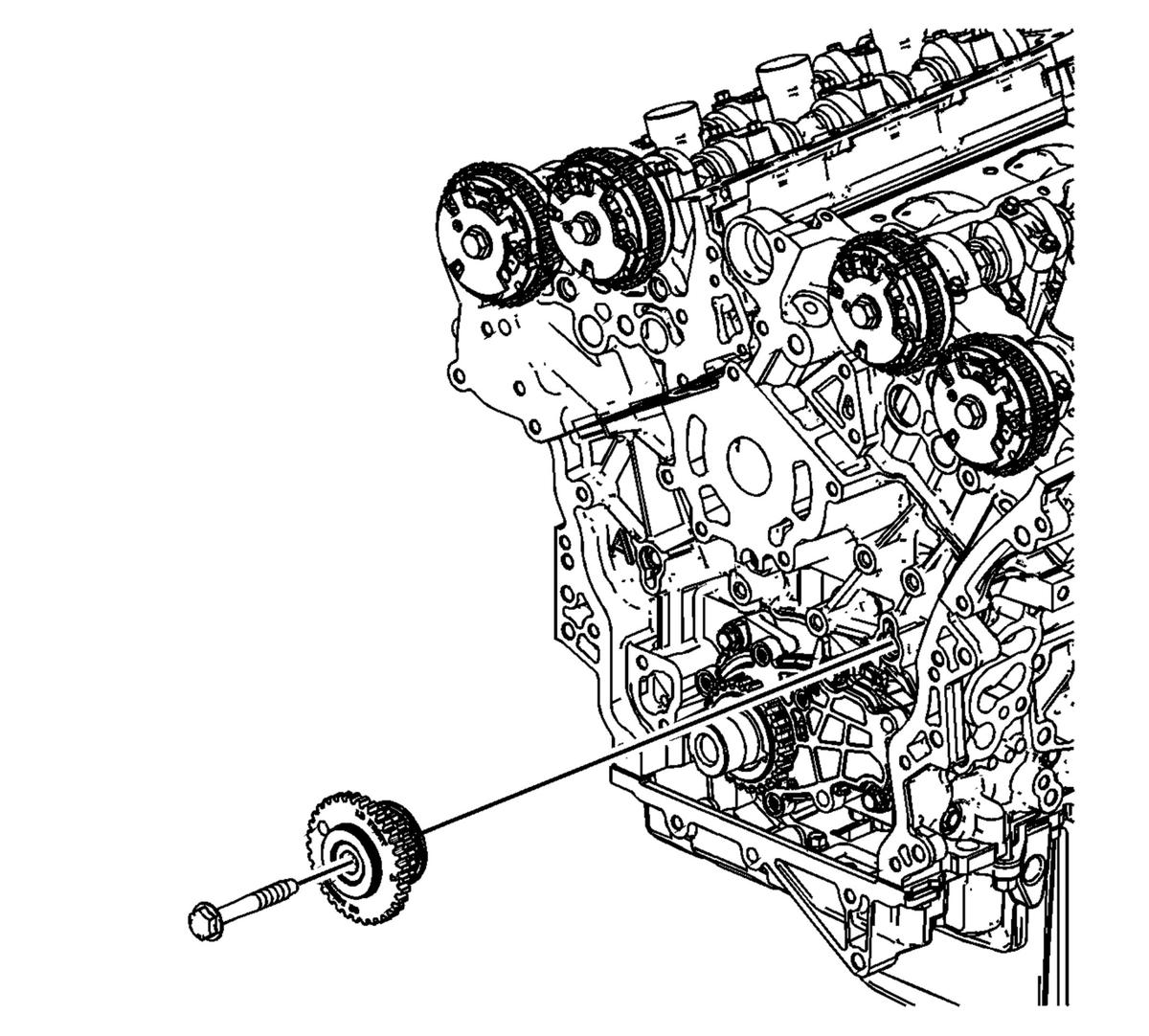

    2. Fig 2: View Of Camshaft Intermediate Drive Chain Idler & Bolt
    GM1852312Courtesy of GENERAL MOTORS CORP.
  2. Place the left camshaft intermediate drive chain idler to the cylinder block.
    3. NOTE: Refer to Fastener Notice .
  3. Install the camshaft intermediate drive chain idler bolt.

    Tighten:  Tighten the camshaft intermediate drive chain idler bolt to 58 N.m (43 lb ft).
