Upper to Lower Intake Manifold Disassemble Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Upper-To-Lower Intake Manifold Bolts
    GM1531017Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not reuse the upper-to-lower intake manifold gasket and the intake manifold-to-cylinder head sealing gaskets.
  1. Remove the upper-to-lower intake manifold bolts.

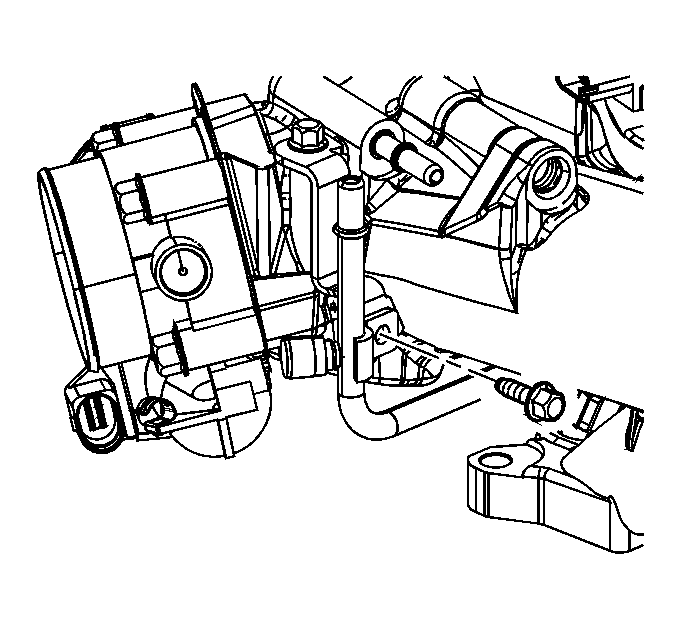

    2. Fig 2: Identifying Fuel Rail Feed Hose Bracket Bolts
    GM1531021Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuel rail feed hose bracket bolts from the upper intake manifold.
    3. Fig 3: View Of Fuel Injector Wiring Harness & Bracket Bolts
    GM1531023Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector wiring harness bracket bolt from the upper intake manifold.

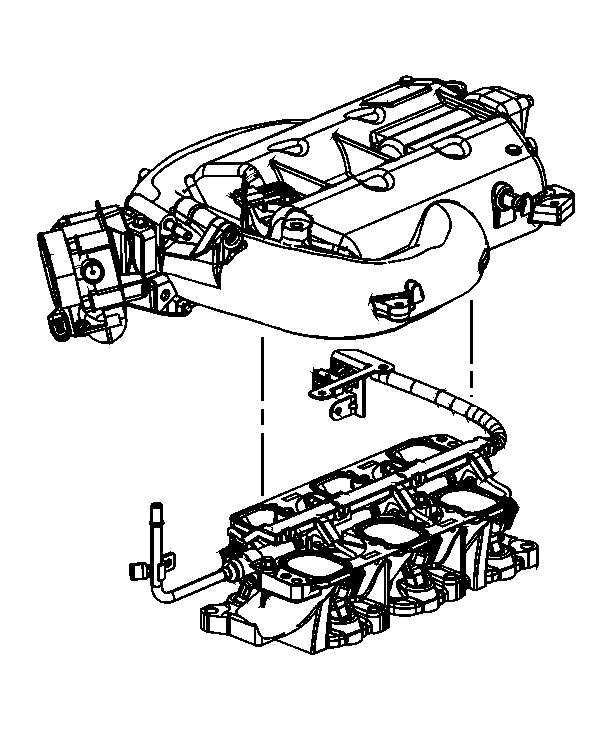

    4. Fig 4: View Of Upper Intake Manifold & Lower Intake Manifold
    GM1531026Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper intake manifold from the lower intake manifold.

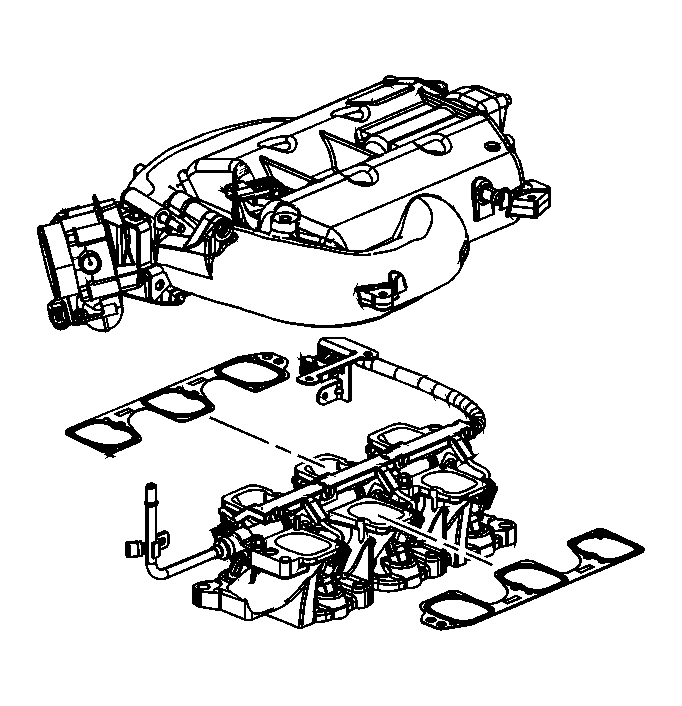

    5. Fig 5: View Of Upper-To-Lower Intake Manifold Gaskets
    GM1531028Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the upper-to-lower intake manifold gaskets.
