Exhaust Manifold Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

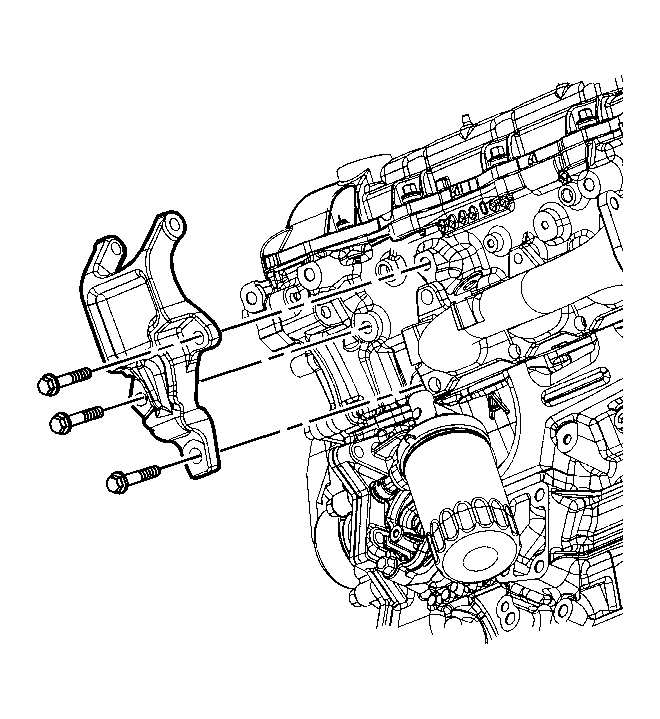

    Fig 1: View Of Left Torque Strut Bracket & Bolts
    GM1412139Courtesy of GENERAL MOTORS CORP.
  1. Remove the left torque strut bracket bolts.
  2. Remove the left torque strut bracket.

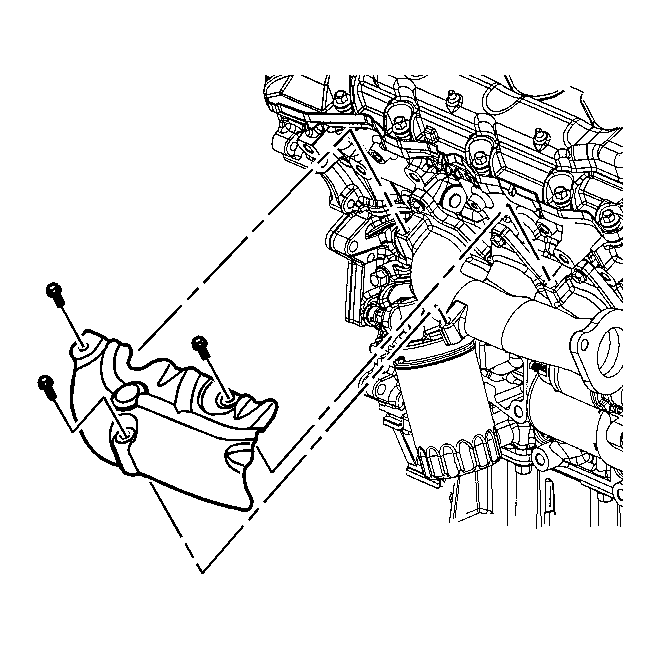

    3. Fig 2: Identifying Left Exhaust Manifold Heat Shield Bolts
    GM1395926Courtesy of GENERAL MOTORS CORP.
  3. Remove the left exhaust manifold heat shield bolts.
  4. Remove the left exhaust manifold heat shield.

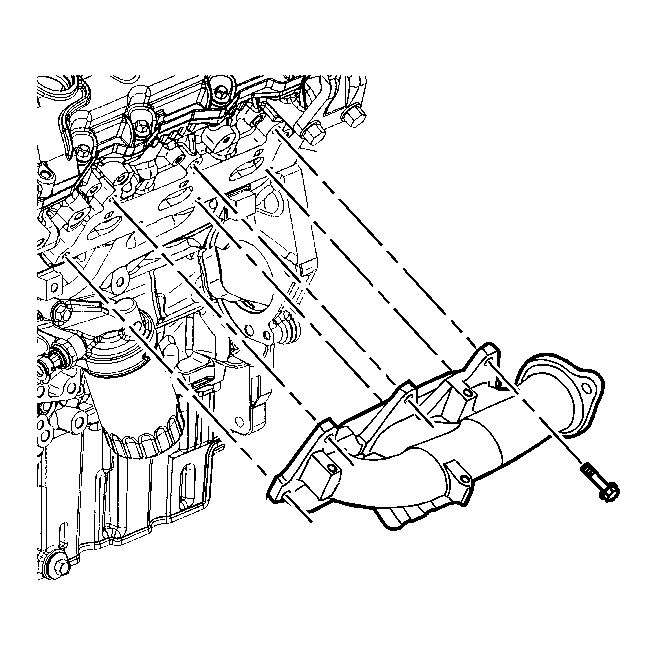

    5. Fig 3: View Of Left Exhaust Manifold
    GM1395931Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold bolts from the left cylinder head.
  6. Remove the left exhaust manifold.
  7. Remove and discard the exhaust manifold gasket.
