Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  1. Install the EN 46106  through the starter mounting hole. See Special Tools .
    2. Fig 2: View Of Crankshaft Balancer Bolt
    GM1864410Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft balancer bolt.

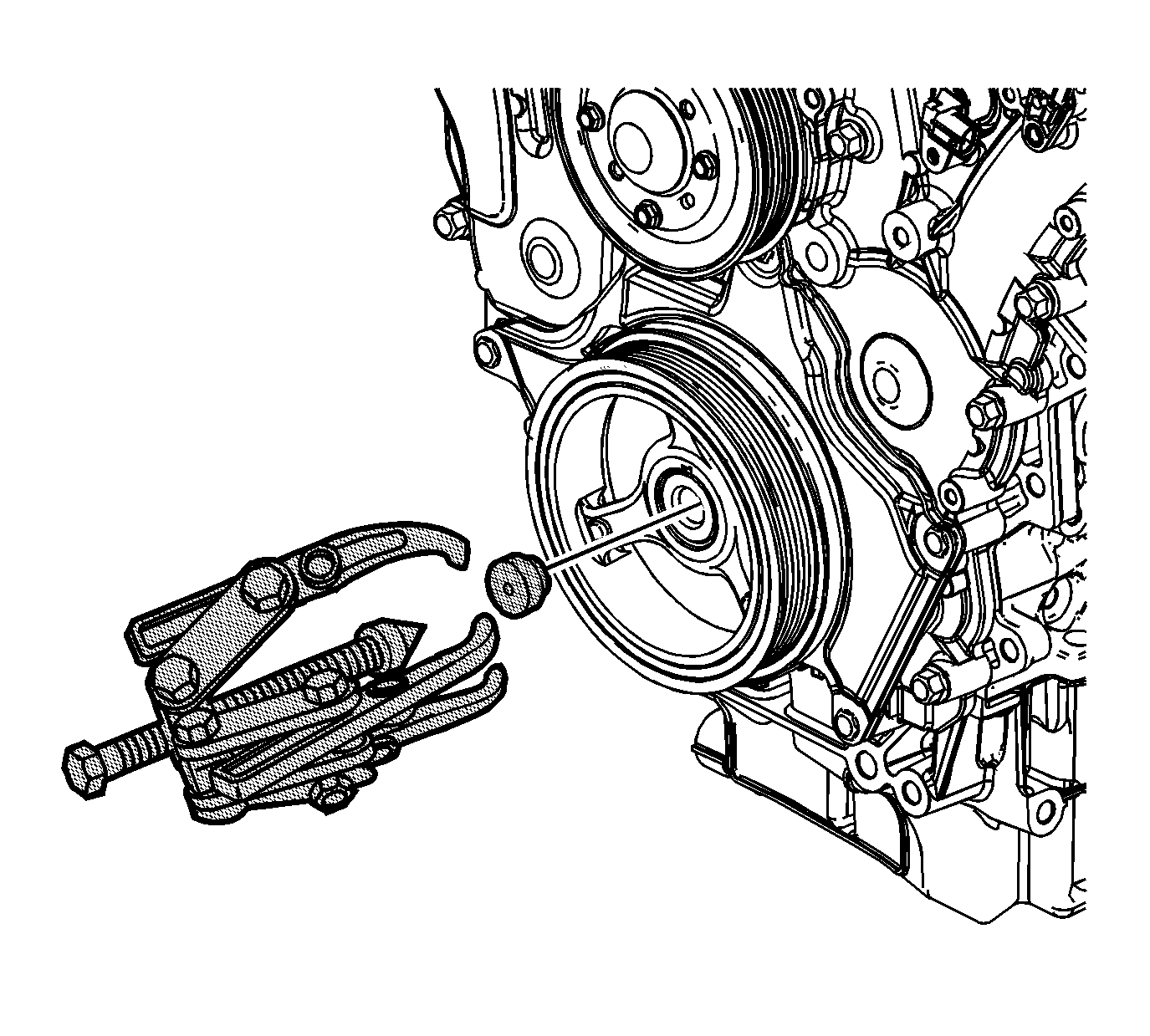

    3. Fig 3: Identifying Crankshaft Balancer Remover
    GM1864555Courtesy of GENERAL MOTORS CORP.
  3. Install the J 38416-2  in the nose of the crankshaft. See Special Tools .
  4. Install the J 41816  in order to remove the crankshaft balancer.
  5. Tighten the center bolt of the J 41816  in order to pull the crankshaft balancer off of the crankshaft.
  6. Remove the J 41816  from the crankshaft balancer.
    7. Fig 4: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  7. Remove the EN 46106  . See Special Tools .
