Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Assemble the oil pan. Refer to Oil Pan Assemble .

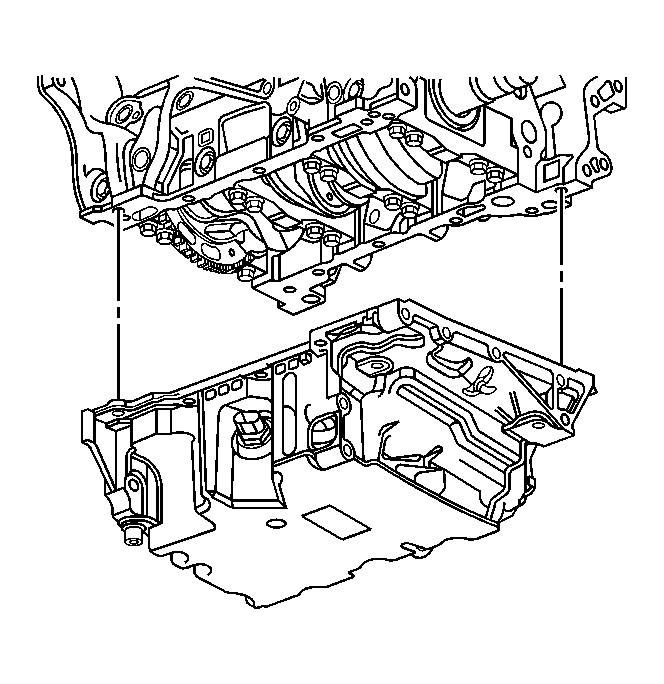

  2. Fig 1: View Of Oil Pan
    GM1581040Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pan. Refer to Oil Pan Installation .
  4. Connect the oil level senor electrical connector.
  5. Raise the frame. Refer to Frame Replacement .

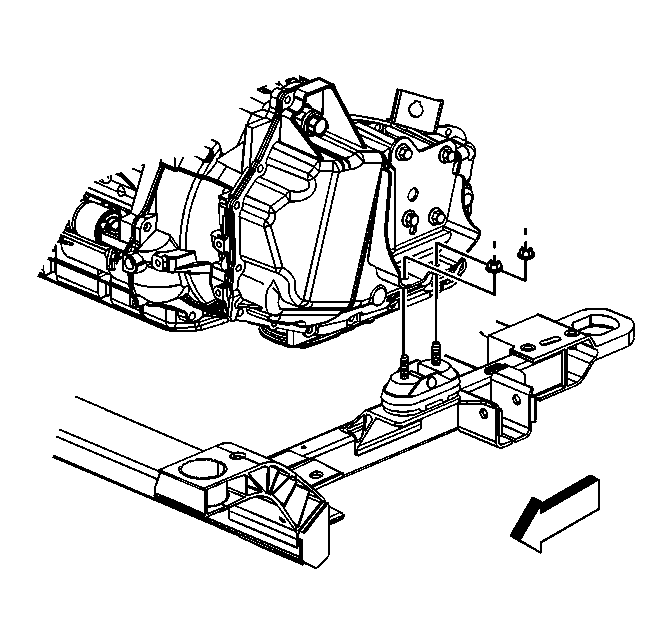

  6. Fig 2: View Of Transmission/Transaxle Mount
    GM630964Courtesy of GENERAL MOTORS CORP.
  7. Install the transmission mount bolts. Refer to Transmission Mount Replacement - Left Side .
  8. Install the engine mount struts. Refer to the following procedures:
  9. Fig 3: Identifying Engine Mount Lower Nuts
    GM96002Courtesy of GENERAL MOTORS CORP.
  10. Install the right engine mount nuts. Refer to Engine Mount Inspection .
  11. Fig 4: Identifying J 28467-34
    GM1401475Courtesy of GENERAL MOTORS CORP.
  12. Remove the engine support fixture. Refer to Engine Support Fixture .
  13. Fig 5: View Of Wiring Harness, Retainers and Cradle
    GM1581006Courtesy of GENERAL MOTORS CORP.
  14. Install the battery cable wiring harness in the retainers on the frame.
  15. Fig 6: View Of Front Wheel Speed Sensor Harness Connectors
    GM1209233Courtesy of GENERAL MOTORS CORP.
  16. Install the speed sensor wiring harness in the retainers on the frame.

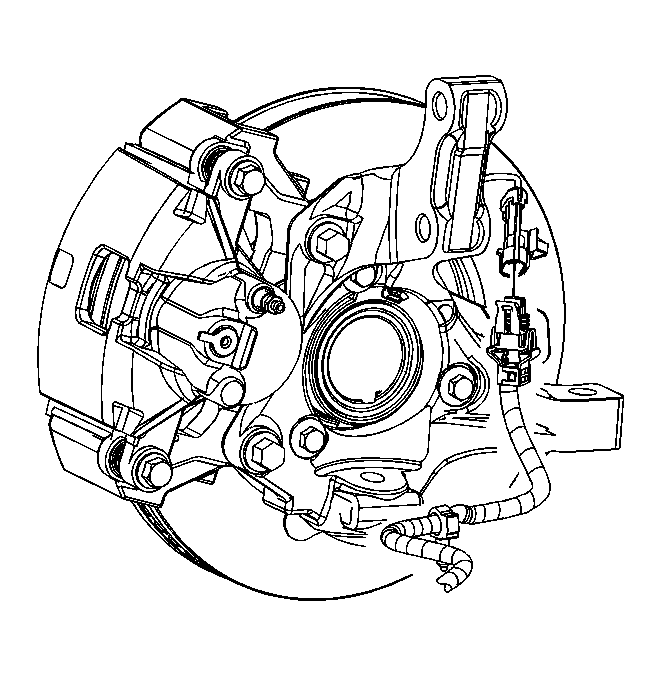

  17. Fig 7: Locating Wheel Speed Sensor Electrical Connector
    GM1580150Courtesy of GENERAL MOTORS CORP.
  18. Connect the speed sensor electrical connectors.
  19. Install the transmission cooler lines in the retainers on the frame.
  20. Install the power steering lines in the retainers on the frame.
  21. Fig 8: Securing Power Steering Gear To Exhaust Manifold
    GM378919Courtesy of GENERAL MOTORS CORP.
  22. Install the steering rack on the frame. Refer to Steering Gear Replacement .
  23. Install the tie rods in the steering knuckle. Refer to Rack and Pinion Outer Tie Rod End Replacement .
  24. Fig 9: Identifying Strut Upper Mounting Nuts
    GM1209238Courtesy of GENERAL MOTORS CORP.
  25. Install the retaining bolts for the struts. Refer to Strut Assembly Replacement .
  26. Install the brakes calipers. Refer to Front Brake Caliper Replacement .
  27. Install the engine splash shields. Refer to Engine Splash Shield Replacement .
  28. Install the oil level indicate.
  29. Install the tires and wheels. Refer to Tire and Wheel Removal and Installation .
  30. Fill the engine with oil. Refer to Engine Oil and Oil Filter Replacement .
