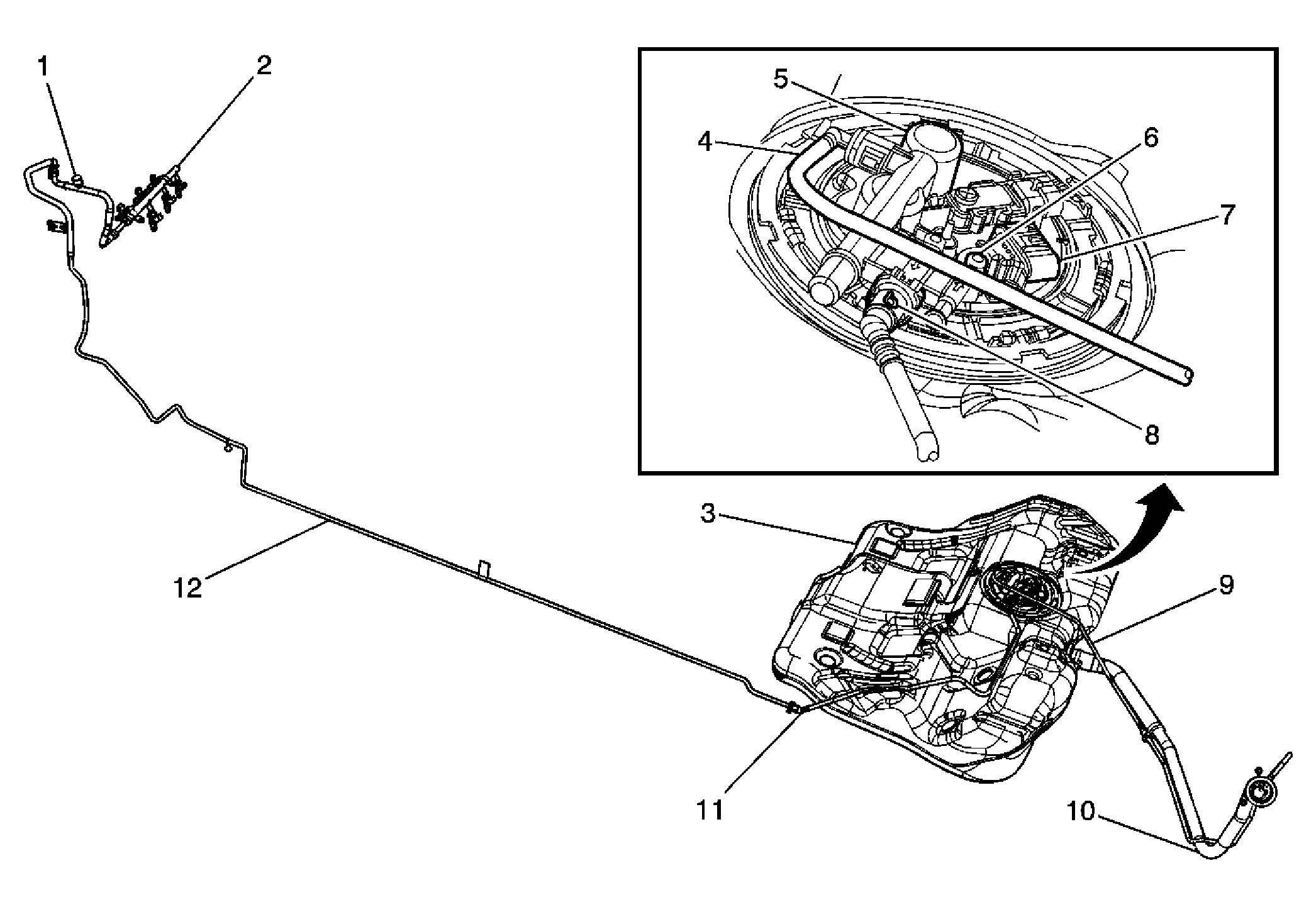

Fuel Hose/Pipes Routing Diagram
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Fuel Pressure Test Connection |
| 2 | Fuel Rail Assembly |
| 3 | Fuel Tank |
| 4 | Fuel Sender Module Assembly |
| 5 | Fill Limit Vent Valve (FLVV) |
| 6 | Fuel Return Inlet - Not Used |
| 7 | Fuel Sender Module Electrical Connector |
| 8 | Fuel Feed Hose/Pipe Connection |
| 9 | Fuel Filler Pipe Vapor Recirculation Hose |
| 10 | Fuel Filler Pipe |
| 11 | Fuel Feed Hose/Pipe - Fuel Tank |
| 12 | Fuel Feed Hose/Pipe - Chassis |
