Harness Routing Views

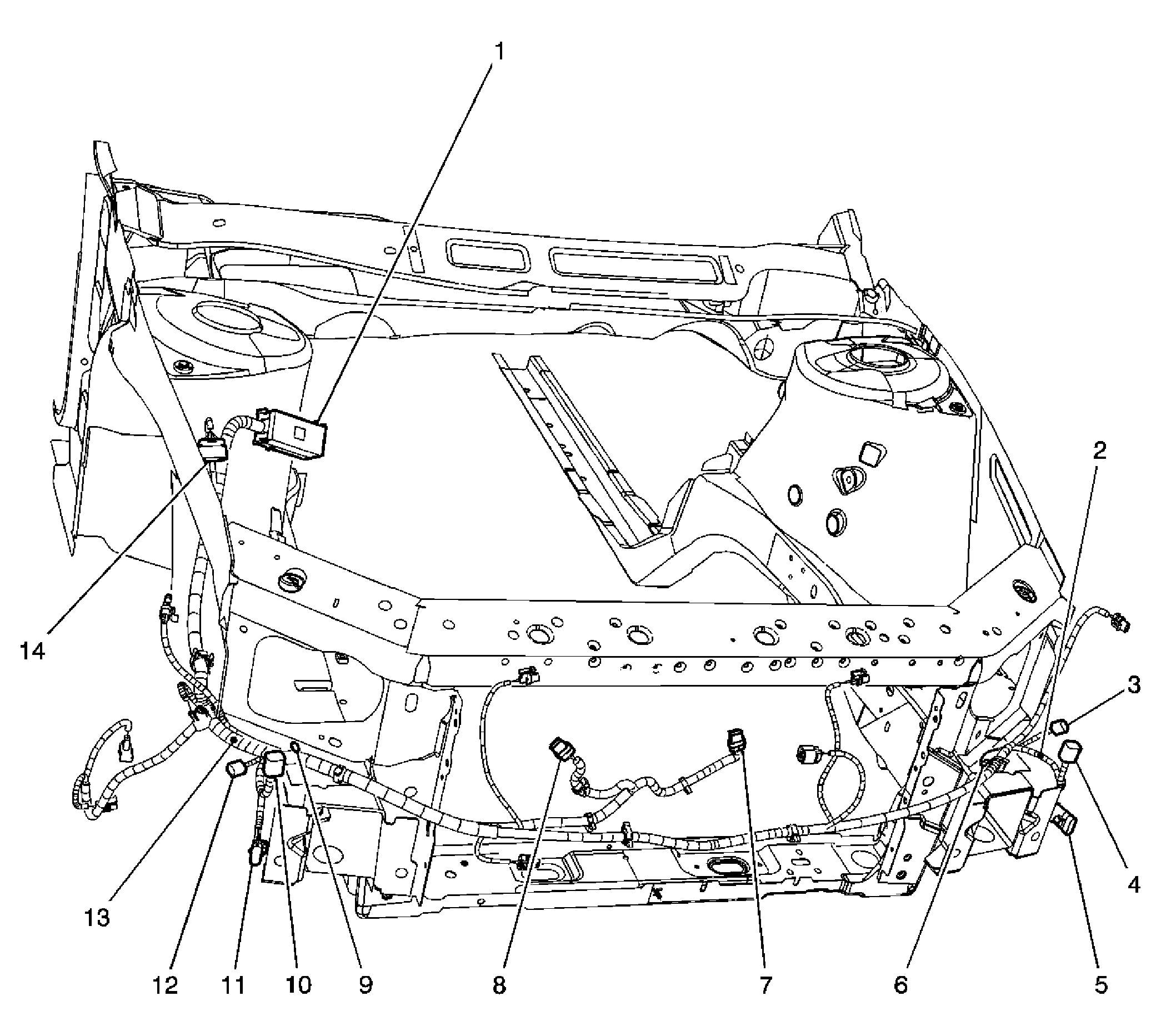

Fig 1: Harness (Forward Lamp)
GM1803141Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood X3
2 J112
3 X145
4 X141
5 X143
6 G101
7 Cooling Fan - Left Connector
8 Cooling Fan - Right Connector
9 G100
10 X142
11 X144
12 X146
13 J124
14 X120

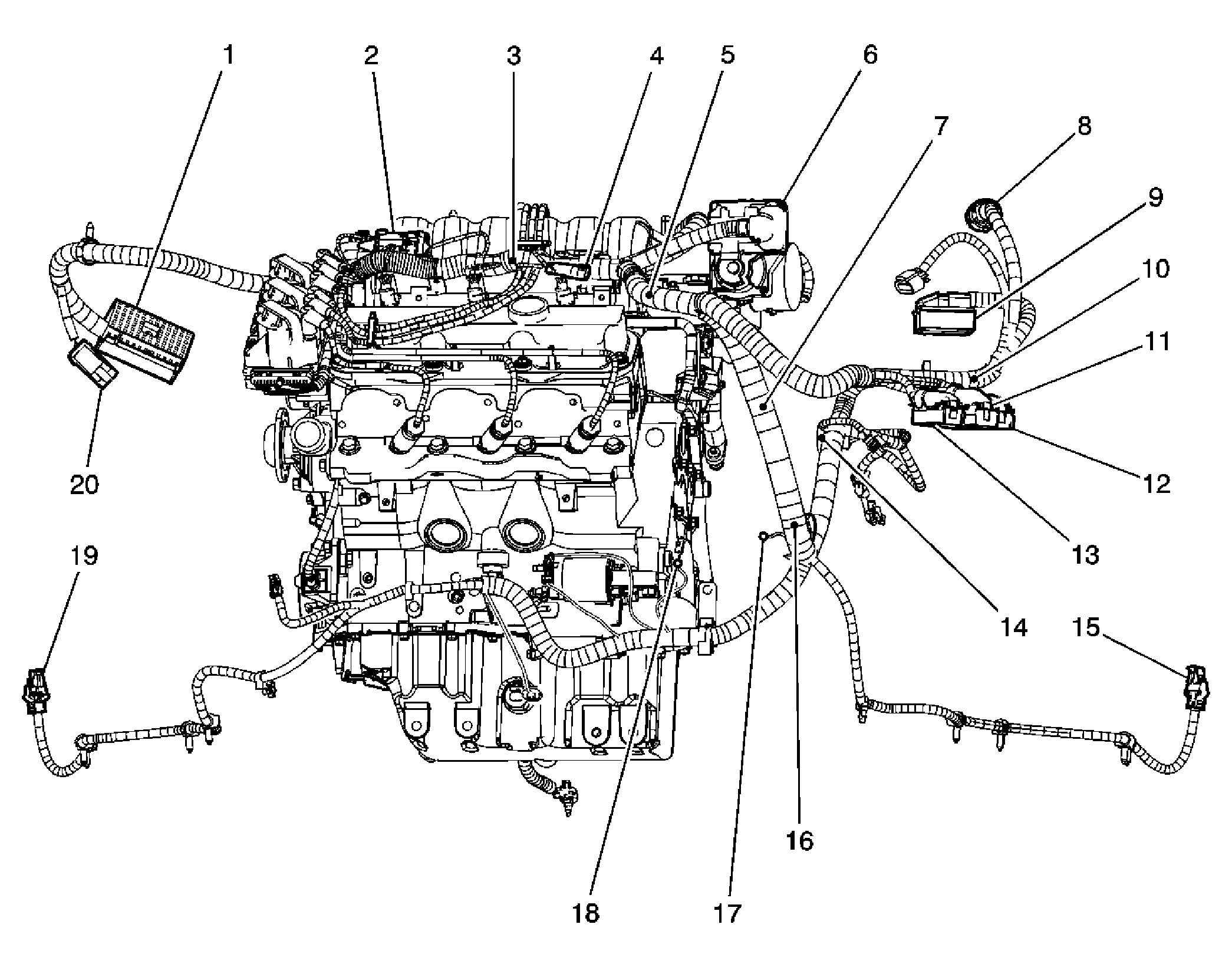

Fig 2: Harness (Front of the Engine - L26)
GM1803031Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood X1
2 X110
3 J109
4 X126
5 J102
6 Throttle Actuator Control (TAC) Module Connector
7 J101
8 X101
9 Electronic Brake Control Module (EBCM) Connector
10 J117 (NU3)
11 Powertrain Control Module (PCM) X2 Connector
12 Powertrain Control Module (PCM) X3 Connector
13 Powertrain Control Module (PCM) X1 Connector
14 X100
15 Wheel Speed Sensor (WSS) - Left Front Connector
16 J114 (NU3)
17 G115 (NU3)
18 G115 (JL9)
19 Wheel Speed Sensor (WSS) - Right Front Connector
20 X104

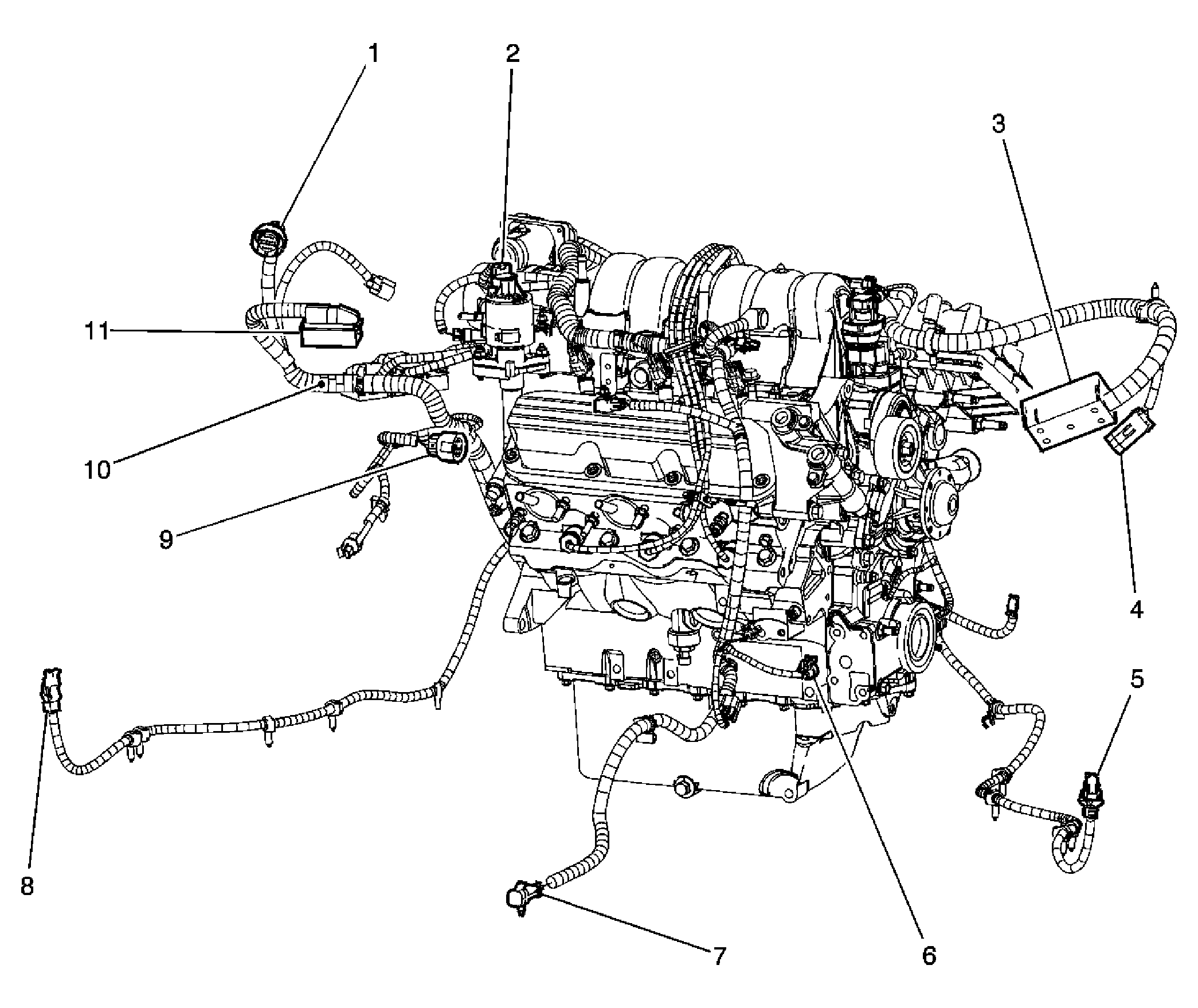

Fig 3: Harness (Rear of the Engine - L26)
GM1803023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X101
2 Evaporative Emission (EVAP) Canister Purge Solenoid
3 Fuse Block - Underhood X1
4 X104
5 Wheel Speed Sensor (WSS) - RF Connector
6 Engine Oil Pressure (EOP) Sensor Connector
7 Heated Oxygen Sensor (HO2S) Connector
8 Wheel Speed Sensor (WSS) - Left Front Connector
9 X100
10 J113 (NU3)
11 Electronic Brake Control Module (EBCM) Connector

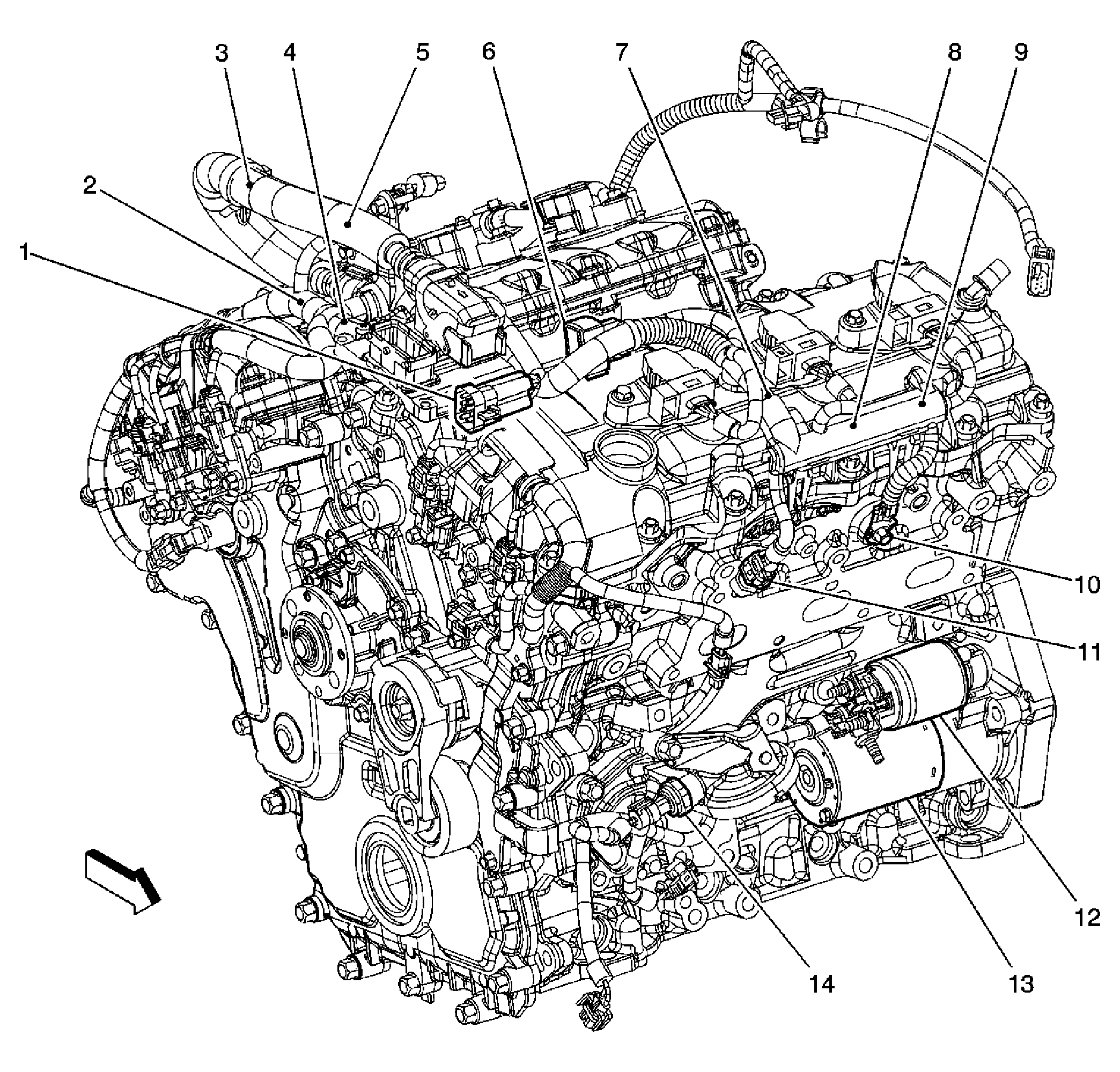

Fig 4: Harness (Front of the Engine - LY7)
GM1803135Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X107
2 J121
3 J120
4 J110
5 J119
6 X109
7 J103
8 J131
9 J133
10 G131
11 Engine Coolant Temperature (ECT) Sensor
12 Starter Solenoid
13 Starter
14 Engine Oil Pressure (EOP) Sensor

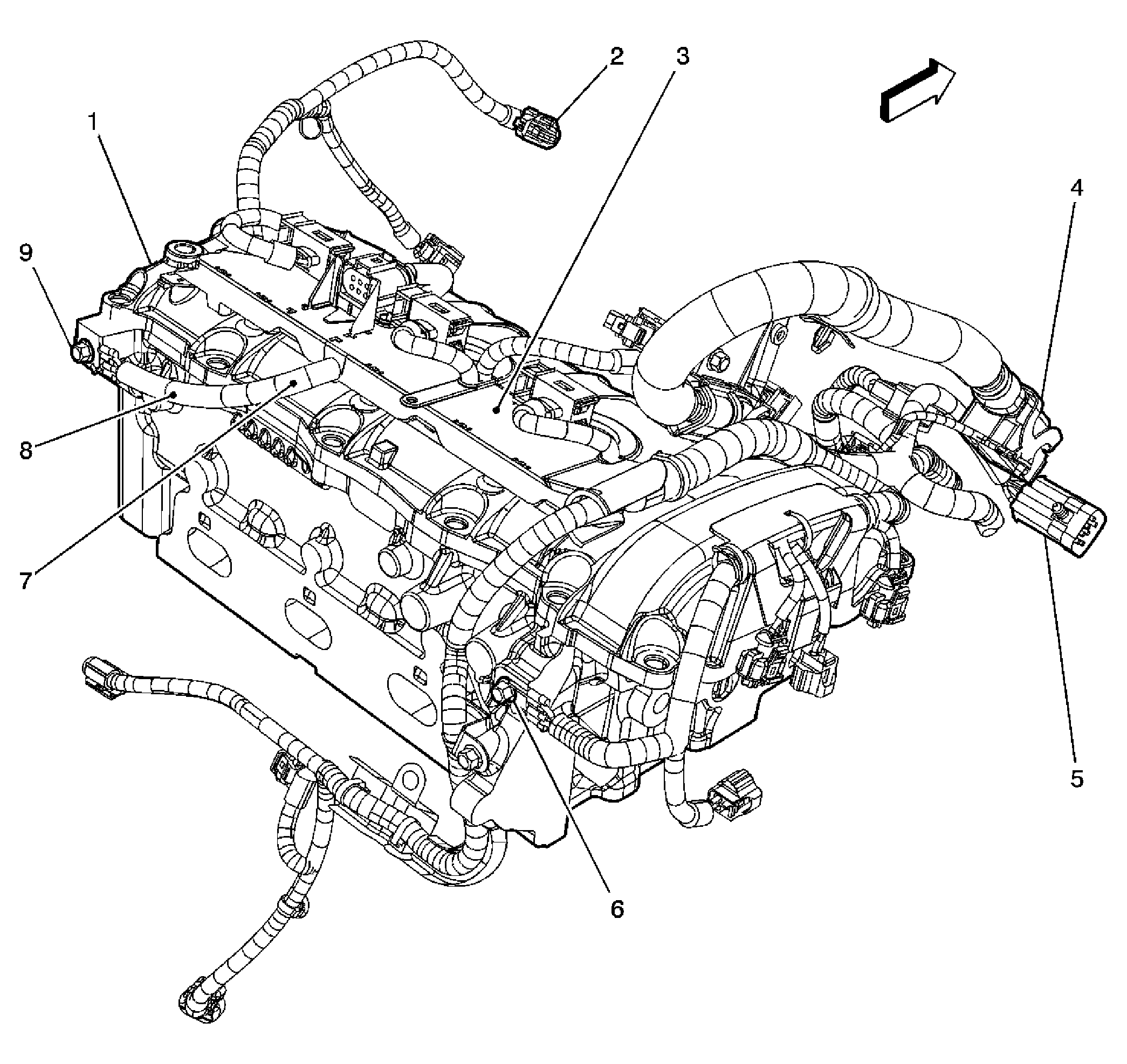

Fig 5: Harness (Rear Cylinder Head - LY7)
GM1803136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cylinder Block
2 Throttle Actuator Control (TAC) Module Connector
3 J108
4 Engine Control Module (ECM) X1 Connector
5 X107
6 G115
7 J131
8 J130
9 G130

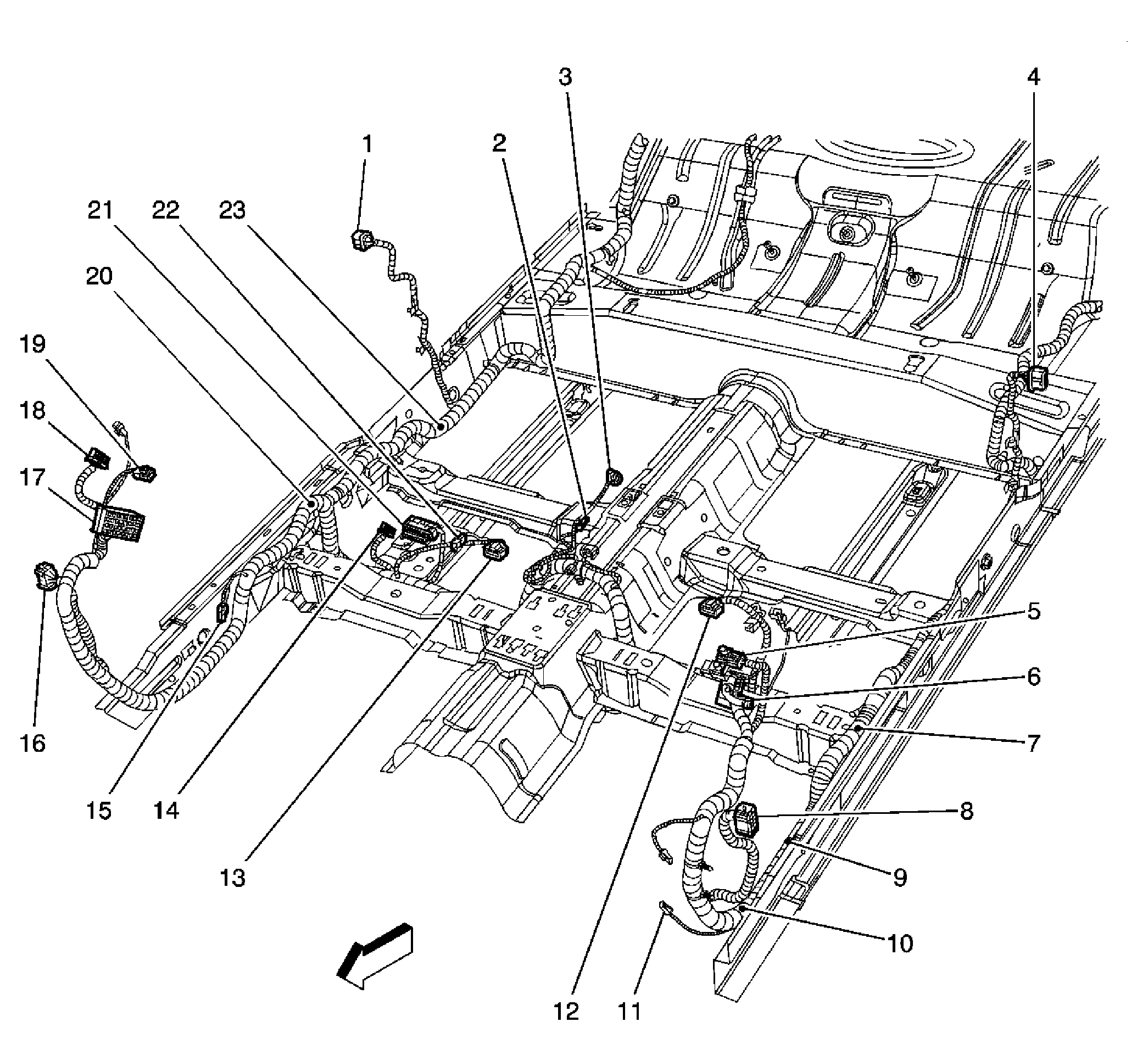

Fig 6: Harness (Front Body)
GM1803139Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X356
2 X241
3 X240
4 X355
5 X208
6 Body Control Module (BCM) X2
7 J303
8 X260
9 G301
10 J350
11 X202
12 X311
13 X313
14 JX407
15 G302
16 X261
17 Fuse Block - Iinstrument Panel X2
18 X200
19 X278
20 J300
21 Inflatable Restraint Sensing and Diagnostic Module (SDM)
22 X315
23 J406

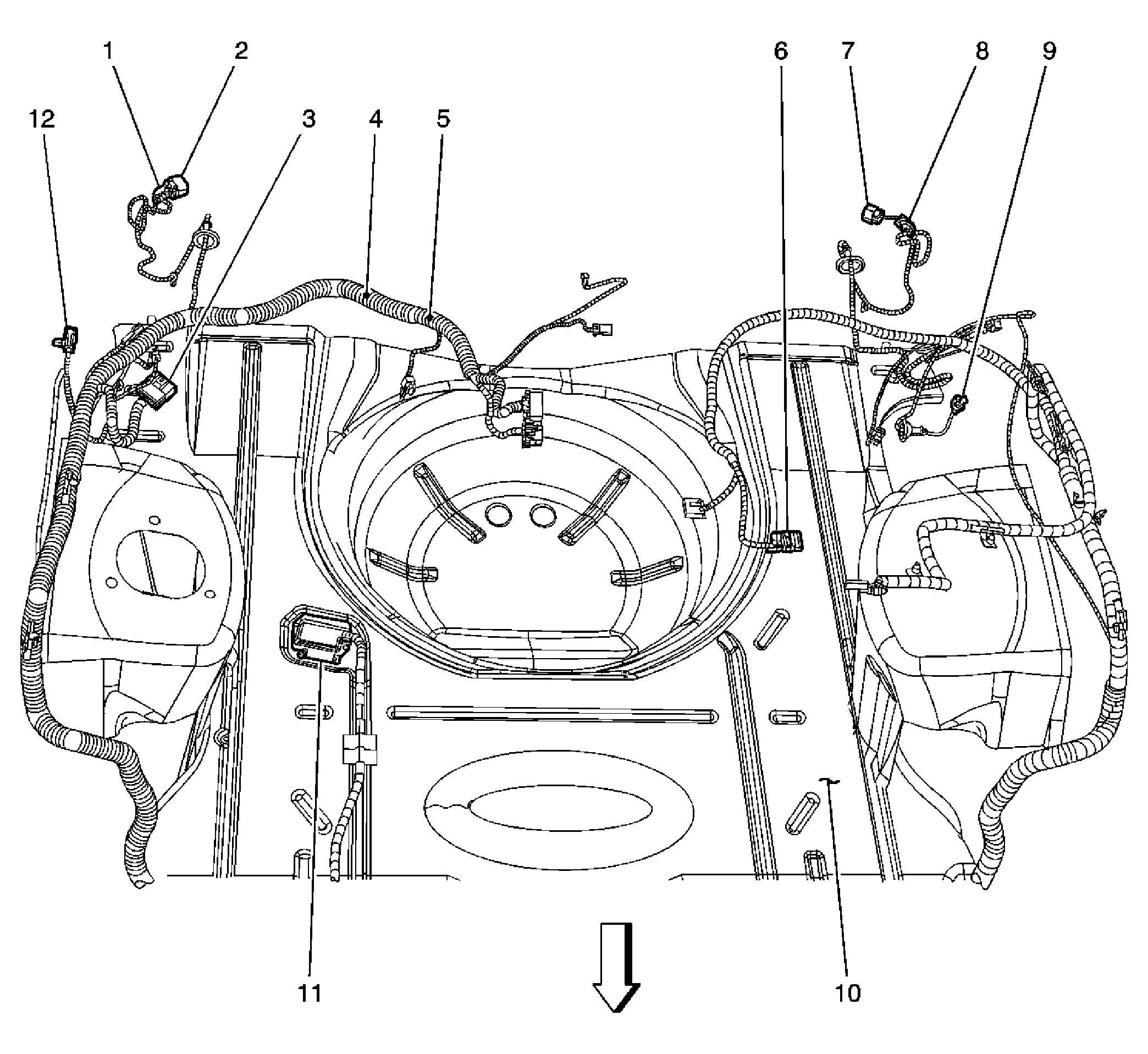

Fig 7: Harness (Rear Body)
GM1803080Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X402
2 X450
3 X390
4 J360
5 J361
6 Rear Object Sensor Control Module Connector (UD7)
7 X401
8 X406
9 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
10 Rear Floor Pan
11 X405
12 X400

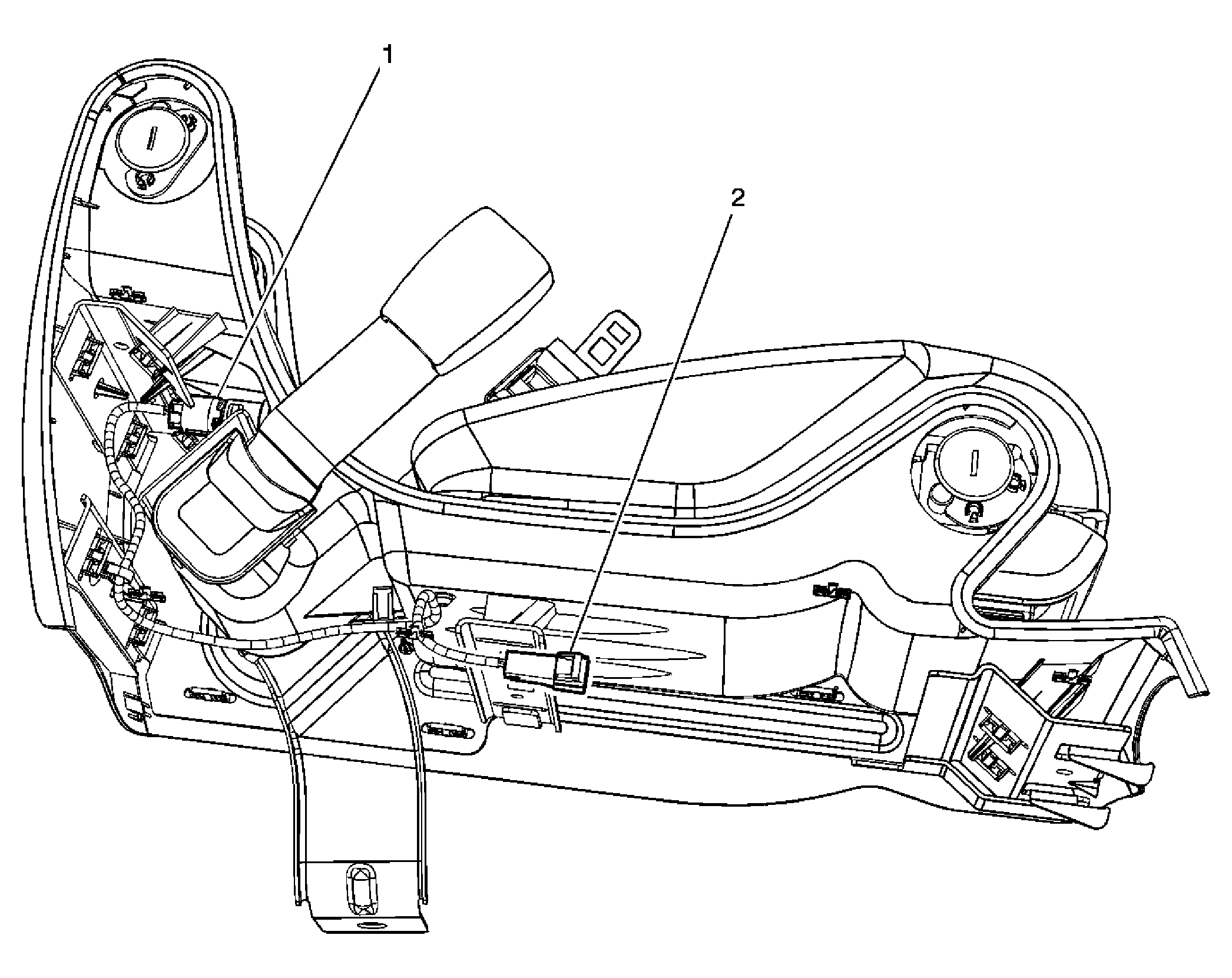

Fig 8: Harness (Console)
GM1803082Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet
2 X240

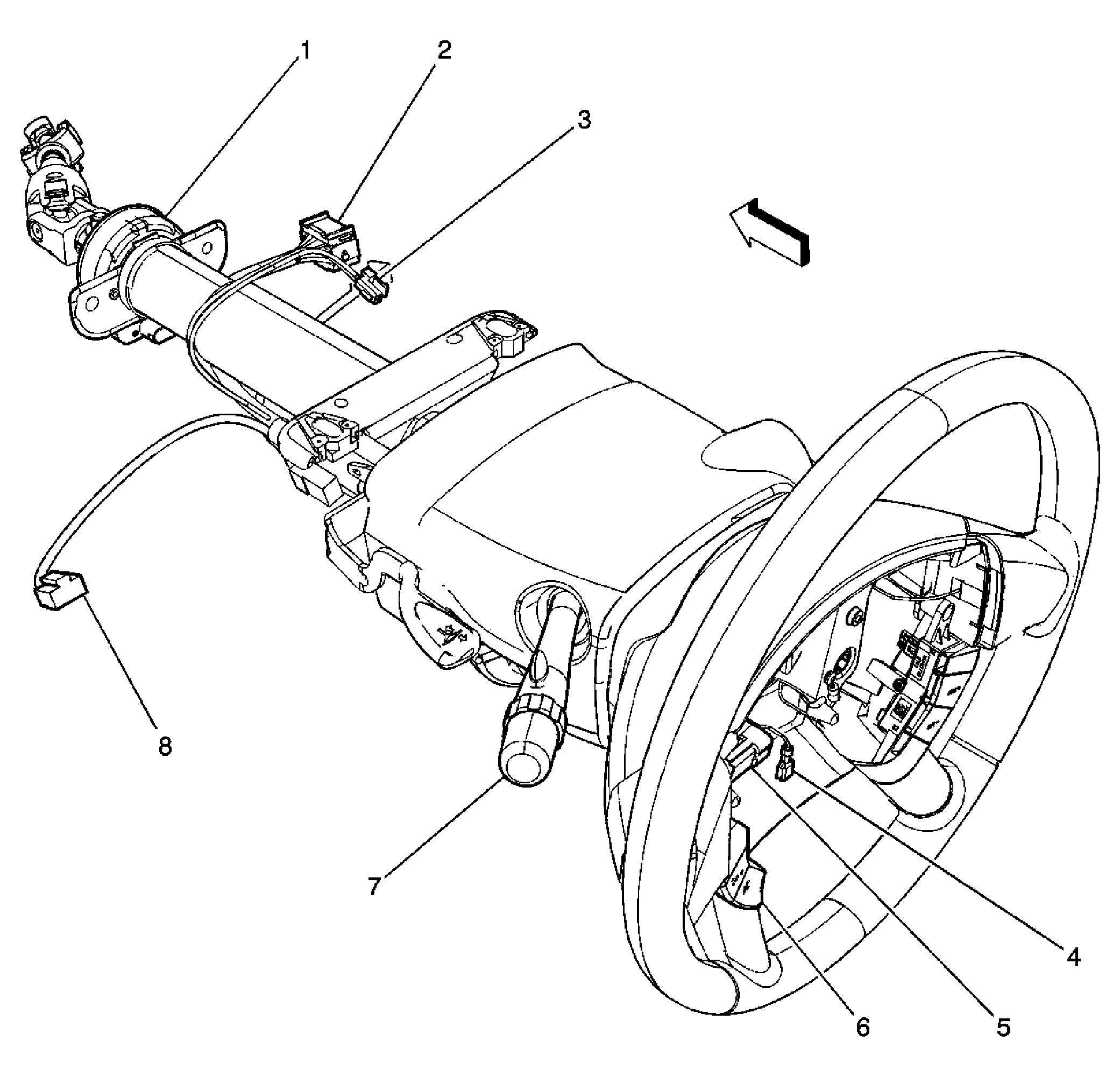

Fig 9: Harness (Steering Column)
GM1803071Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Angle Sensor
2 X201
3 A/T Shiftlock Solenoid Connector
4 Horn Switch Connector
5 X277
6 Steering Wheel Controls
7 Multifunction Accessory Switch
8 Body Control Module (BCM) Connector

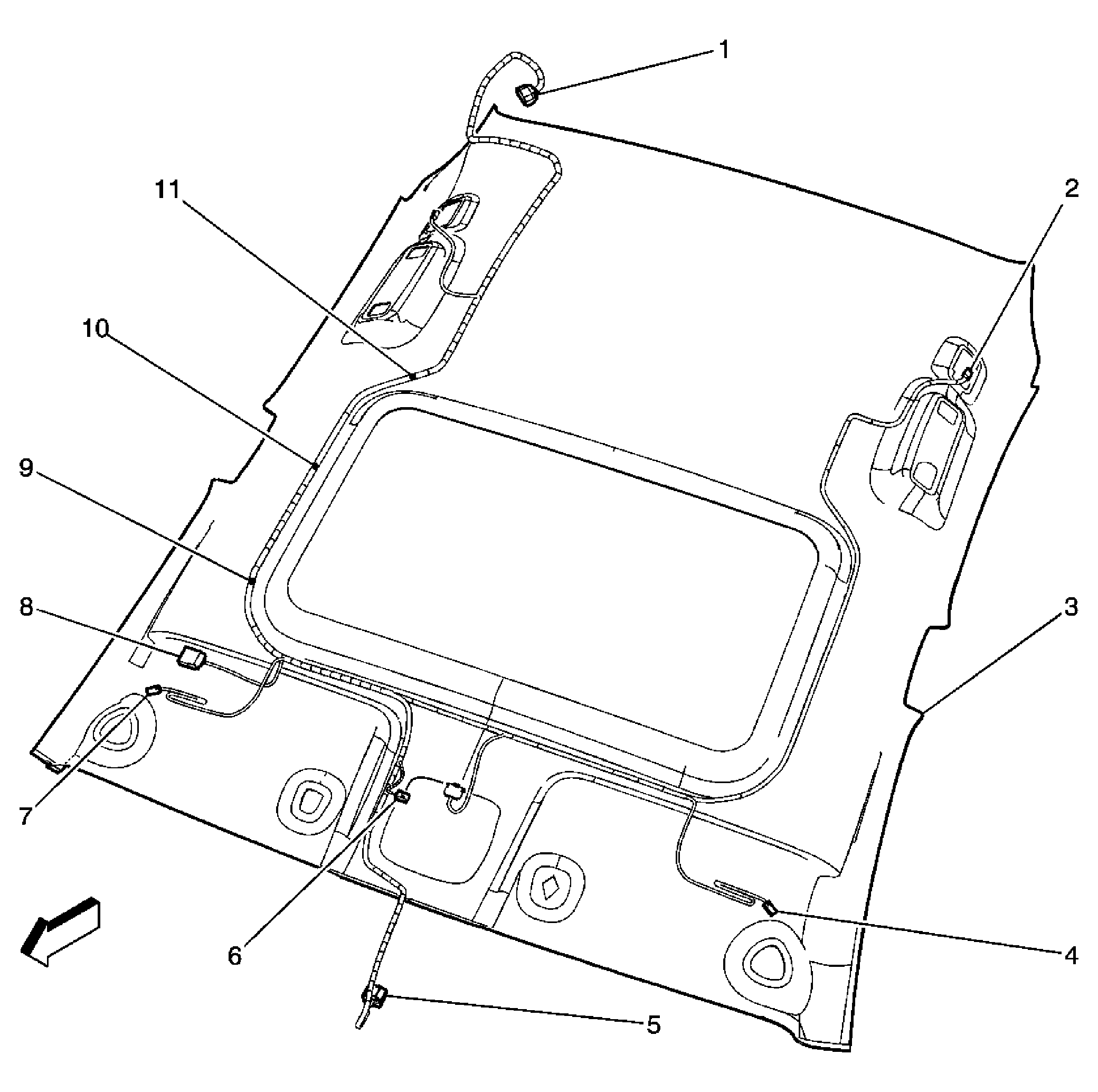

Fig 10: Harness (Headliner Harness - CF5)
GM1803068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X390
2 Dome/Reading Lamp - Left Connector
3 Headliner
4 X317
5 Inside Rearview Mirror (ISRVM) Connector
6 Reading Lamp Overhead Console
7 X318
8 X398
9 J394
10 J393
11 J398

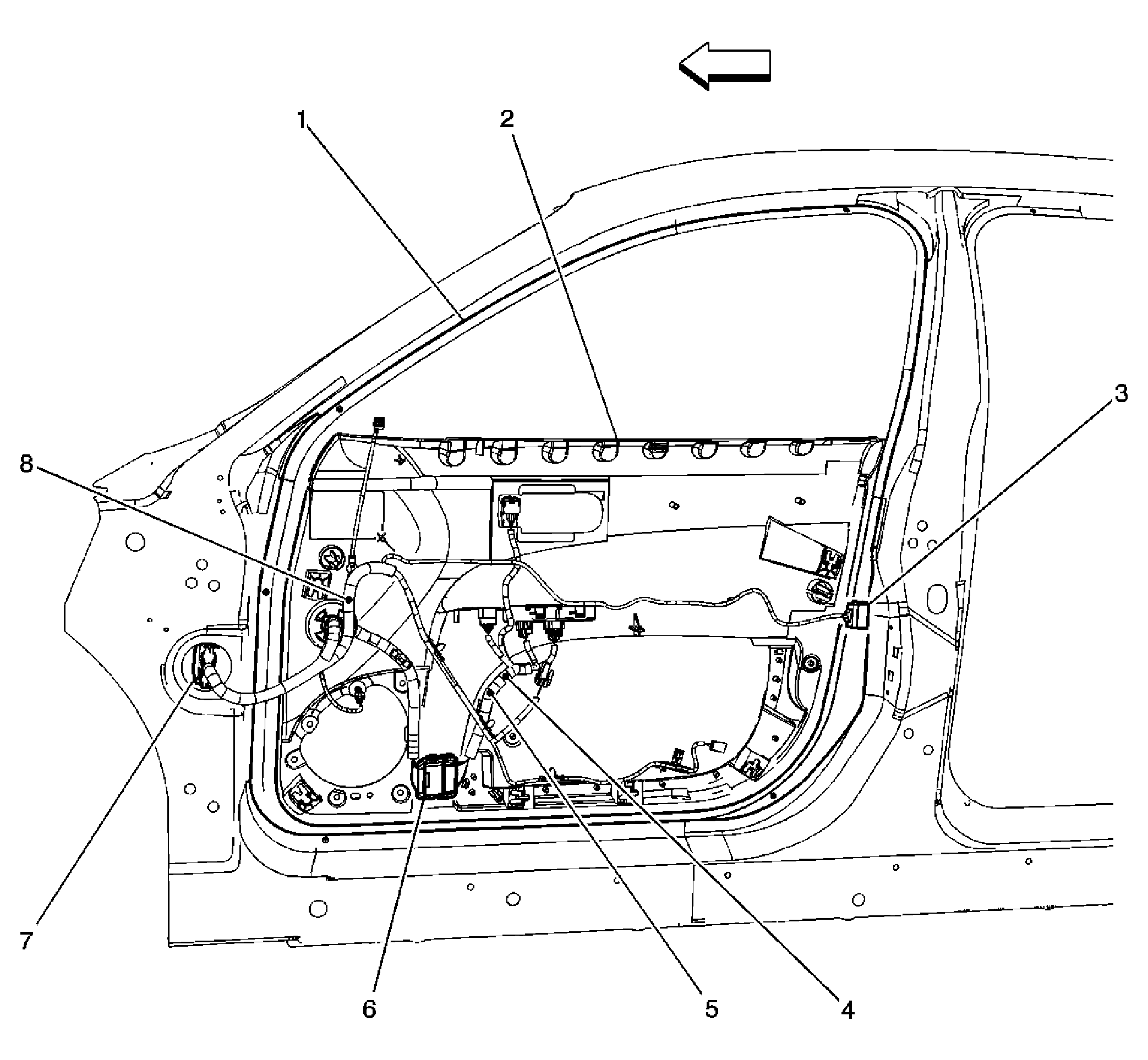

Fig 11: Harness (Driver Door Frame and Trim)
GM1803037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Trim Panel
3 Door Latch Connector
4 J502
5 J501
6 X501
7 X260
8 J500

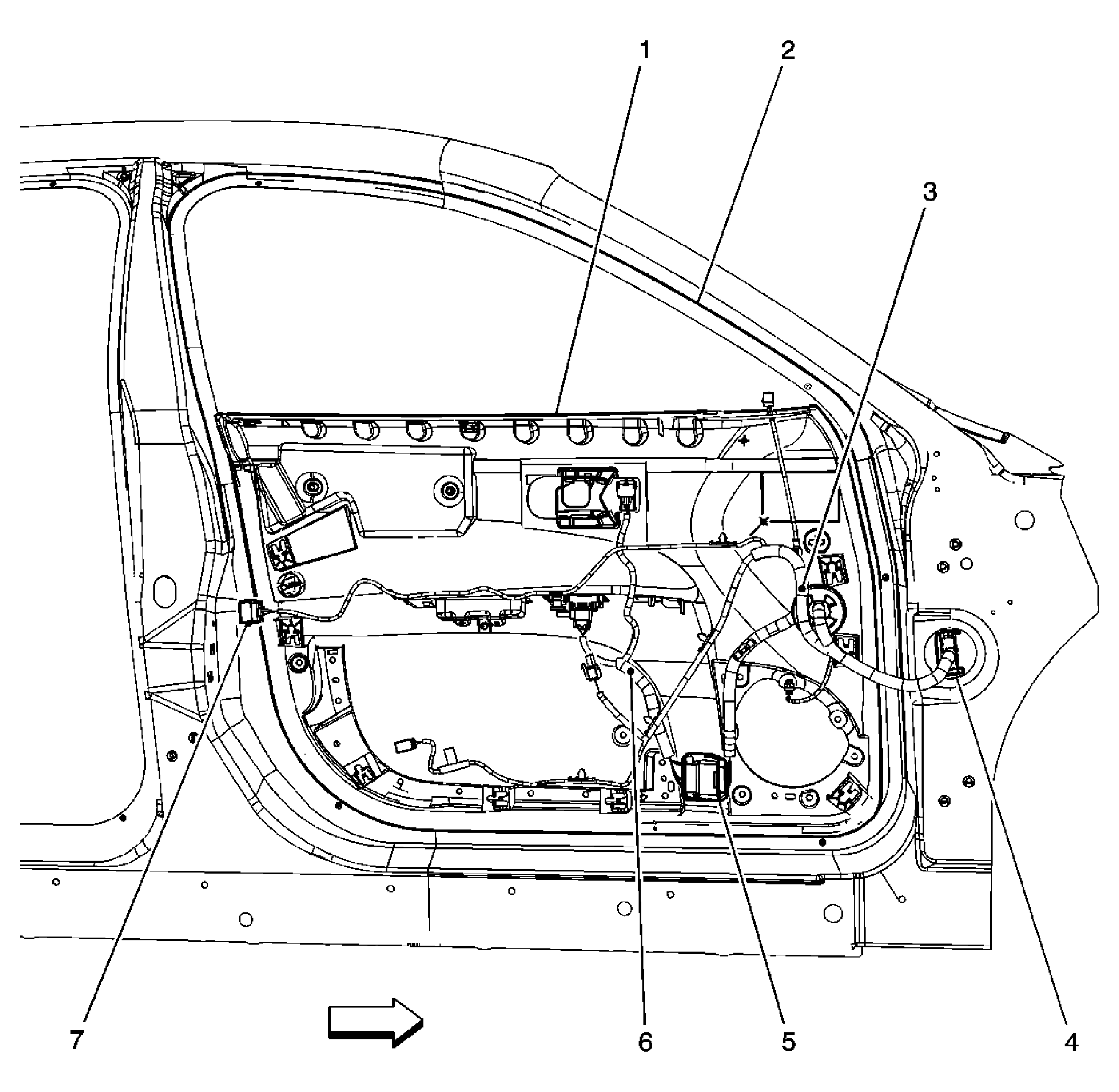

Fig 12: Harness (Passenger Door Frame and Trim)
GM1803062Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Trim Panel
2 Door Frame
3 J604
4 X261
5 X601
6 J605
7 Door Latch Connector

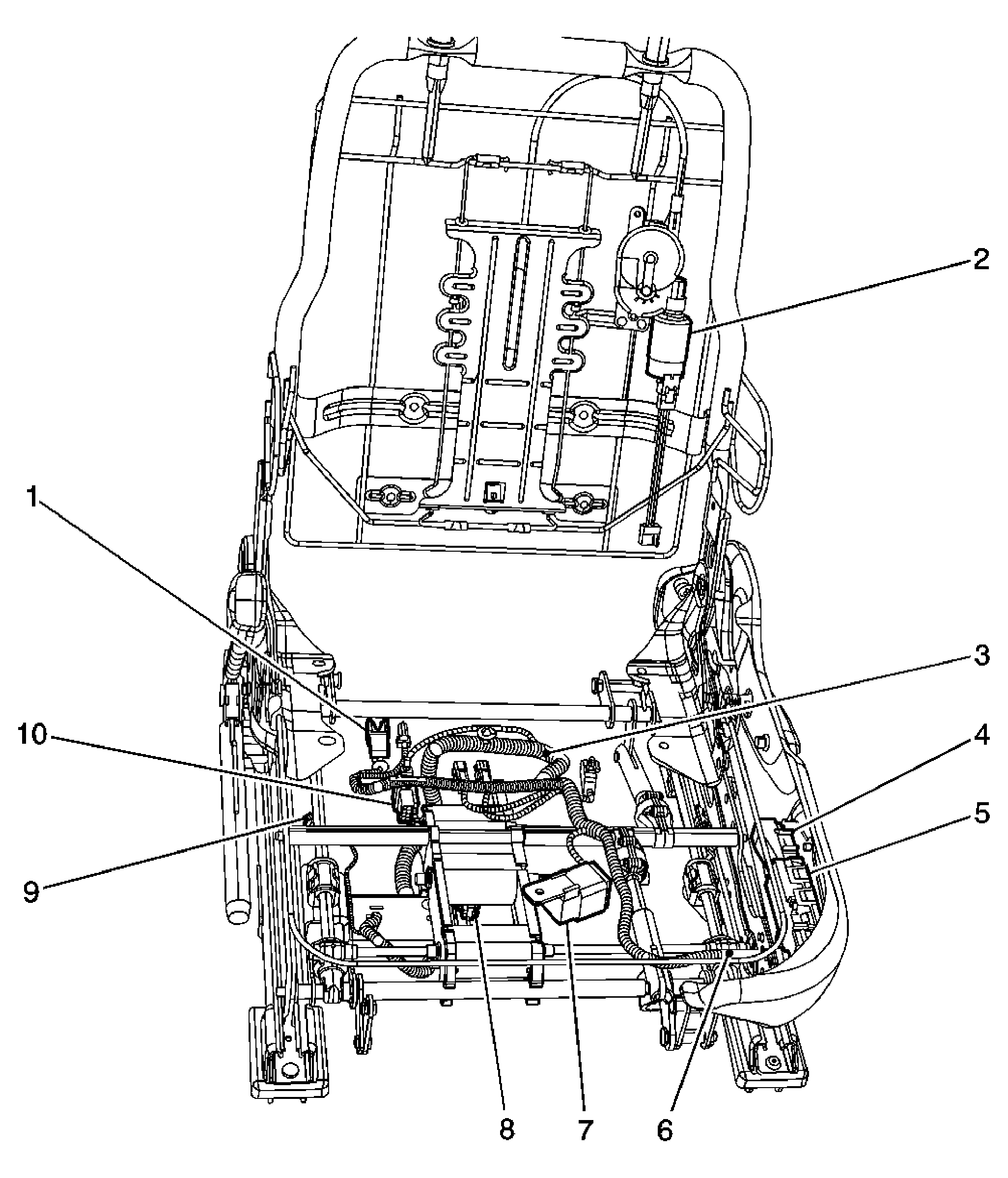

Fig 13: Harness (Driver Seat)
GM1803076Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Pretensioner - Left
2 Lumbar Motor
3 J330
4 Lumbar Adjuster Switch - Driver
5 Seat Adjuster Switch - Driver
6 J331
7 Heated Seat Relay
8 X311
9 X316
10 Seat Adjuster Motor Assembly Connector

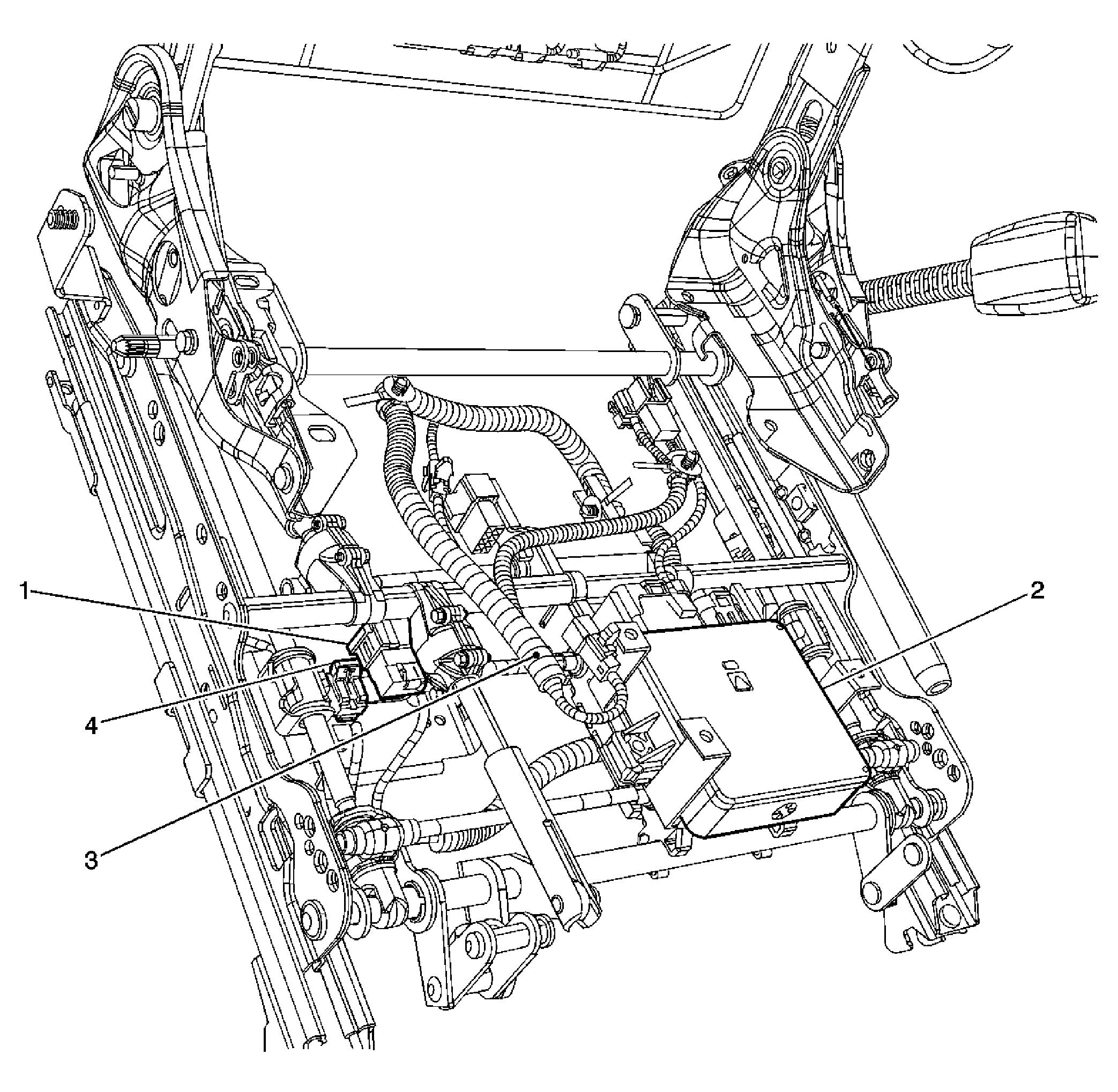

Fig 14: Harness (Passenger Seat)
GM1803086Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X313
2 Inflatable Restraint Passenger Presence System (PPS) Module
3 J333
4 X315

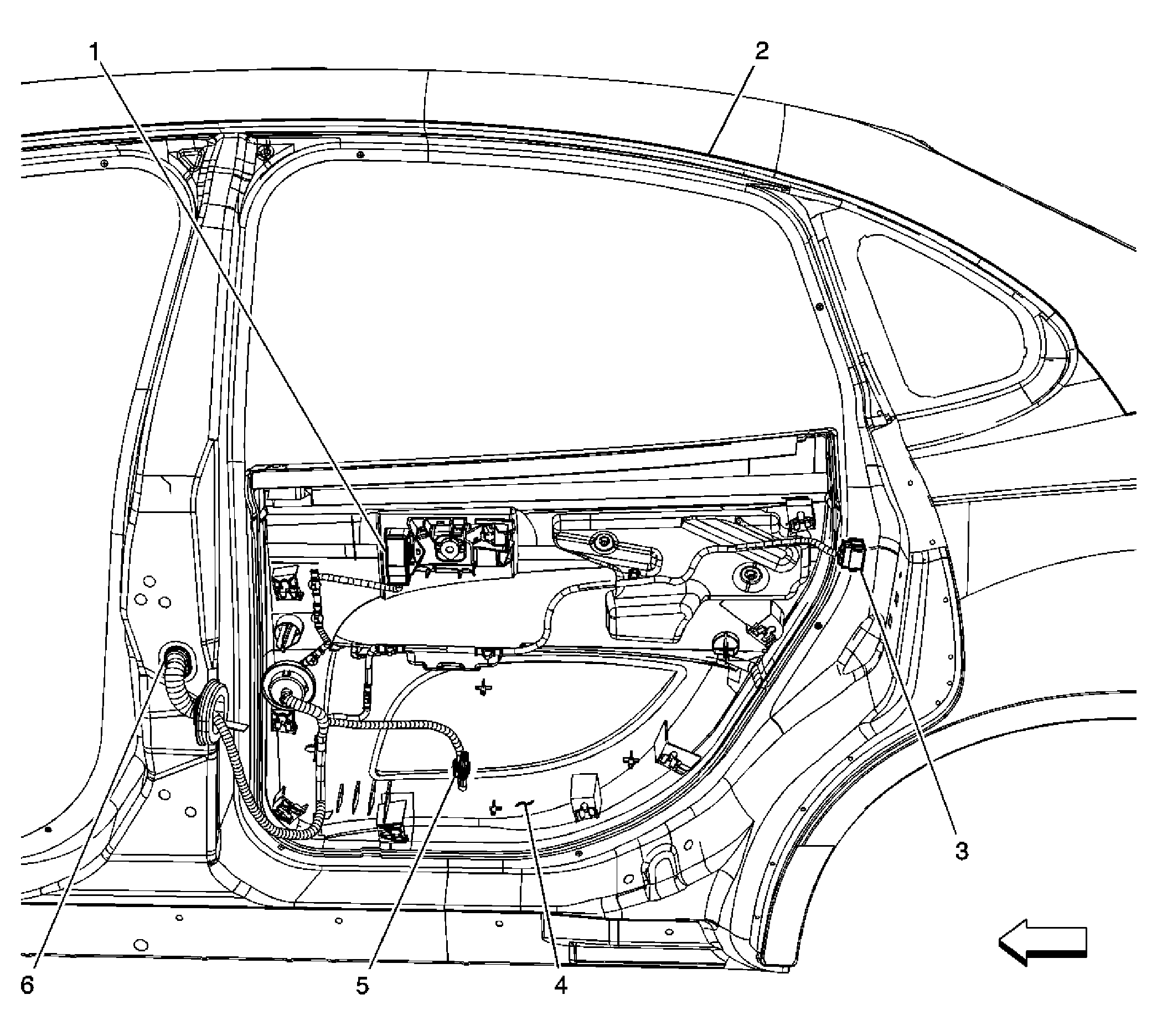

Fig 15: Left Rear Door Harness
GM1456707Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window/Door Lock Switch Connector
2 Door Frame
3 Door Lock Actuator
4 Door Trim Panel
5 Window Motor Connector
6 X355

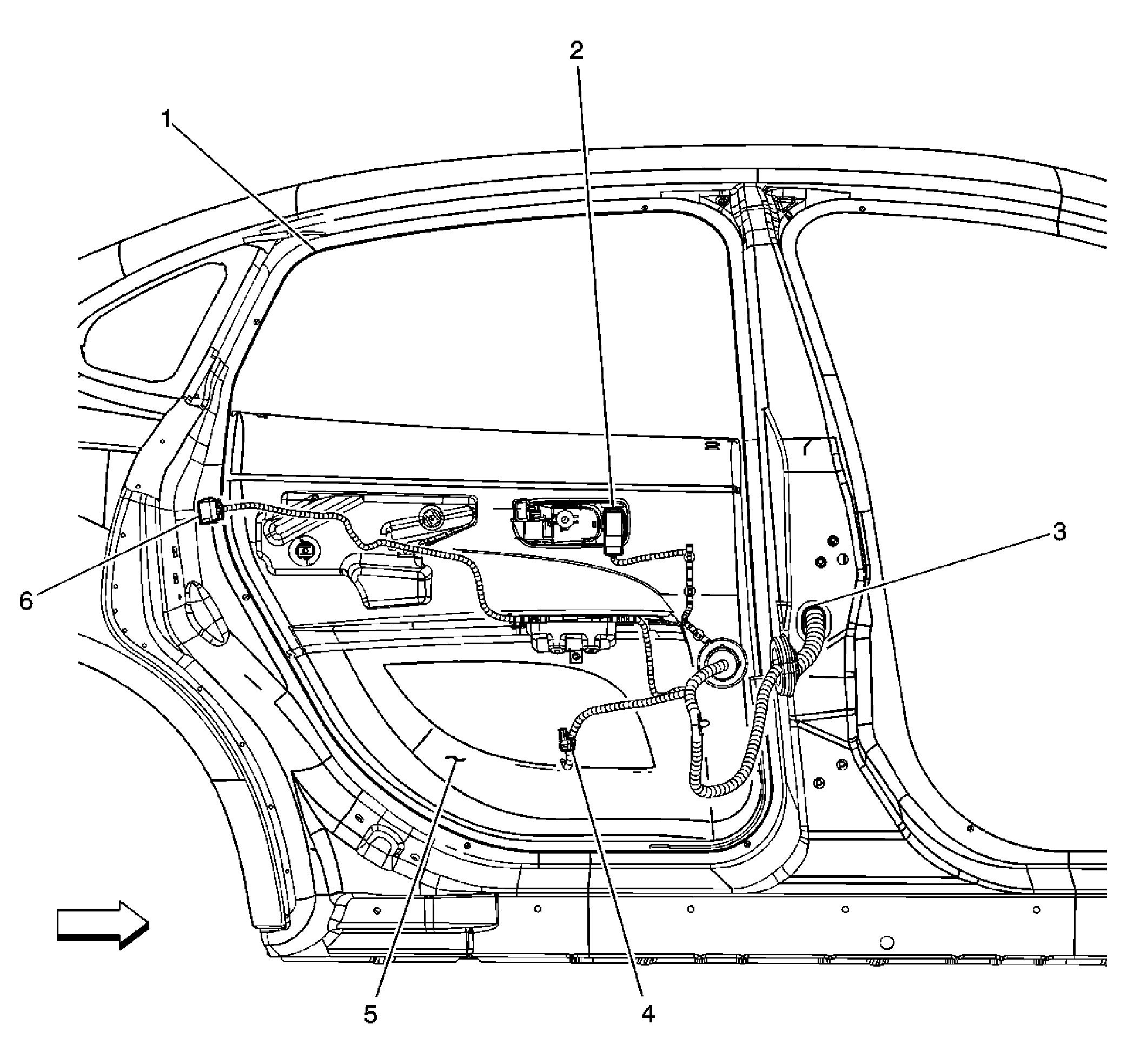

Fig 16: Harness (RR Door)
GM1803130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Window/Door Lock Switch Connector
3 X356
4 Window Motor
5 Door Trim Panel
6 Door Latch Assembly Connector

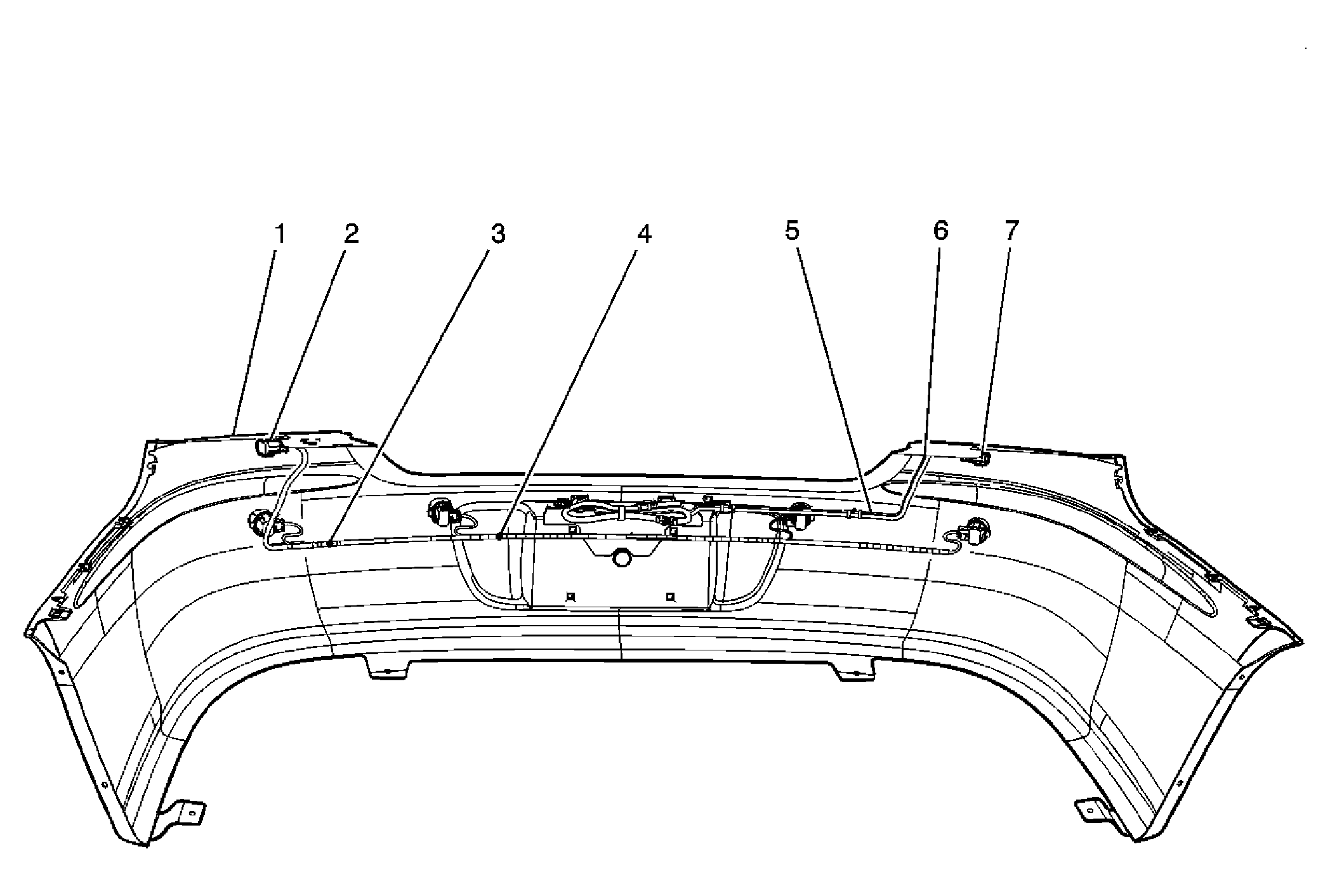

Fig 17: Harness (Object Sensor and License Lamp)
GM1803064Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Fascia
2 X450
3 J450
4 J451
5 J401
6 J402
7 X406
