Ground Distribution Schematics

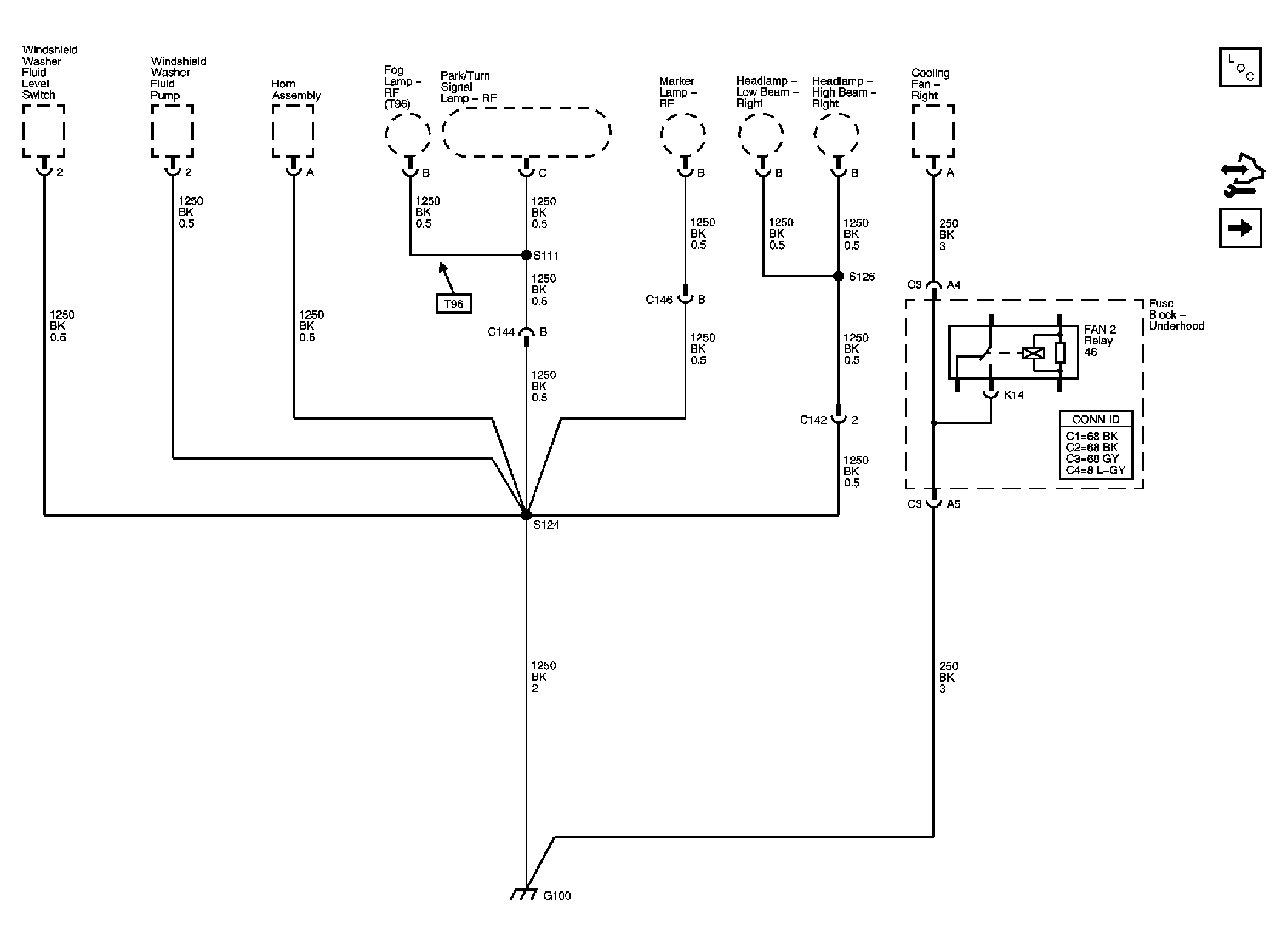

Fig 1: G100 Schematic
GM1889066Courtesy of GENERAL MOTORS CORP.

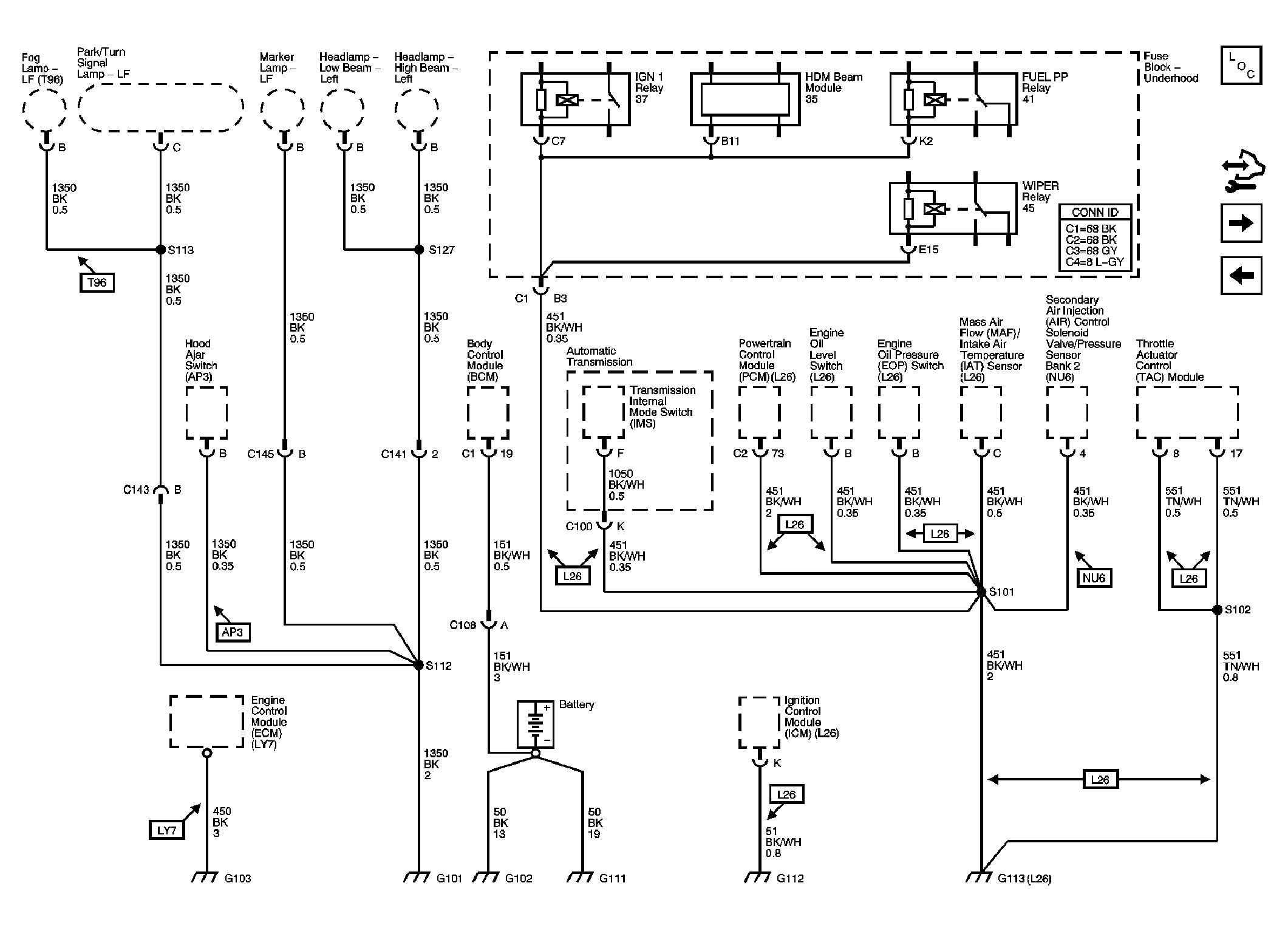

Fig 2: G101, G102, G103, G111, G112, and G113 Schematic
GM1889069Courtesy of GENERAL MOTORS CORP.
Fig 3: G115 - L26 Schematic
GM1889071Courtesy of GENERAL MOTORS CORP.

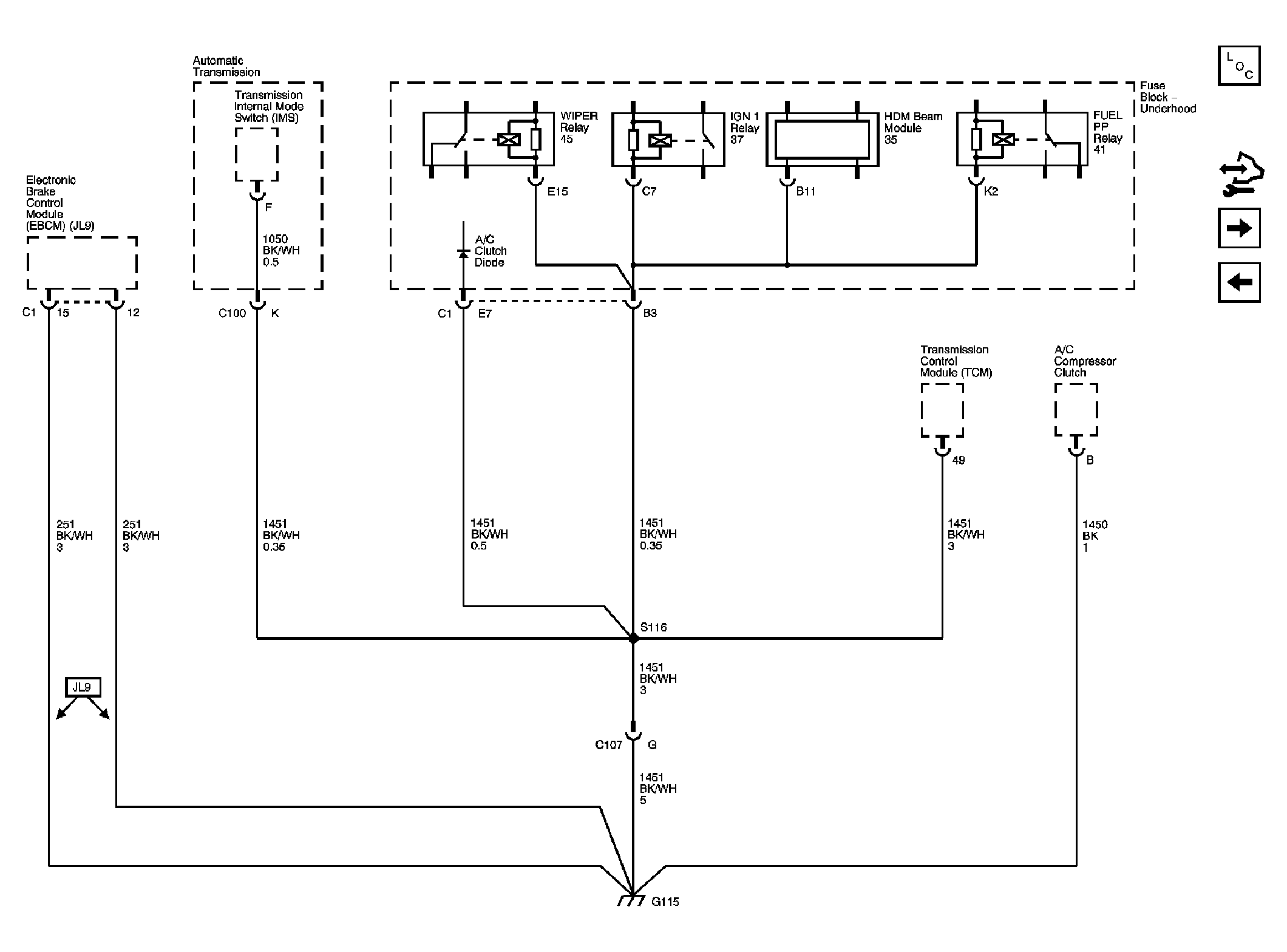

Fig 4: G115 - LY7 Schematic
GM1889074Courtesy of GENERAL MOTORS CORP.
Fig 5: G130, G131 - LY7 Schematic
GM1889092Courtesy of GENERAL MOTORS CORP.

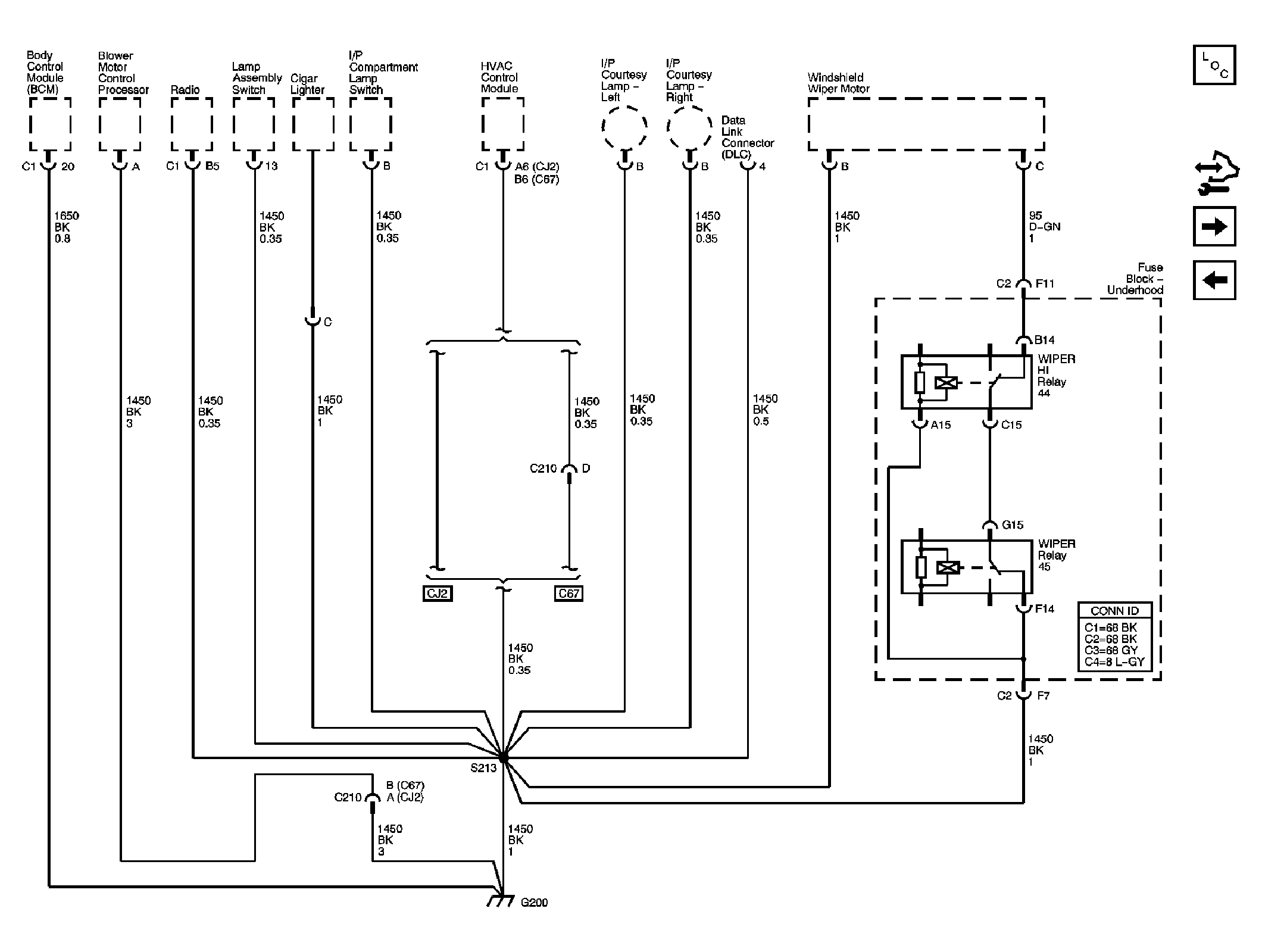

Fig 6: G200 Schematic
GM1889079Courtesy of GENERAL MOTORS CORP.
Fig 7: G201 Schematic
GM1889081Courtesy of GENERAL MOTORS CORP.

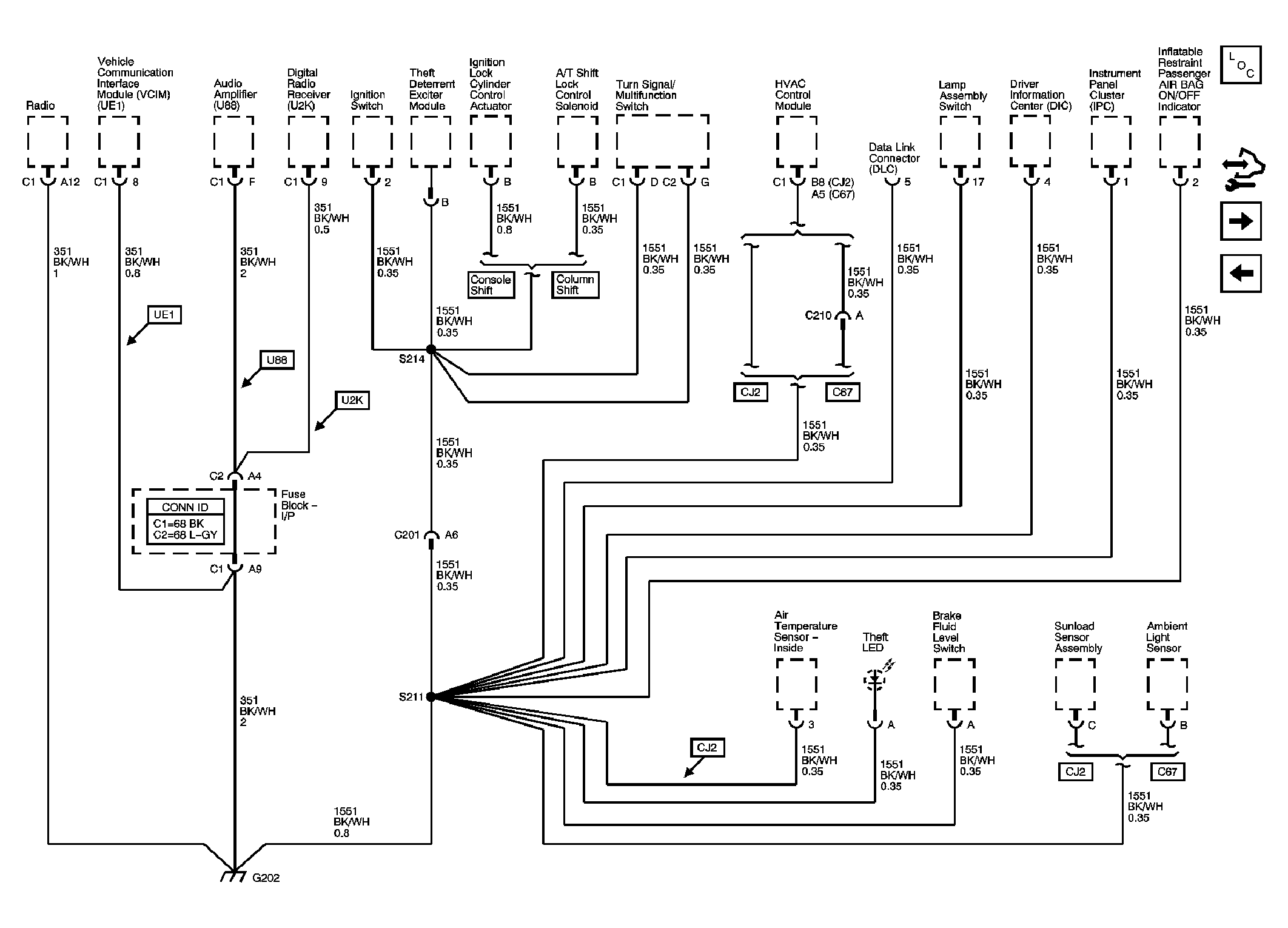

Fig 8: G202 Schematic
GM1889082Courtesy of GENERAL MOTORS CORP.

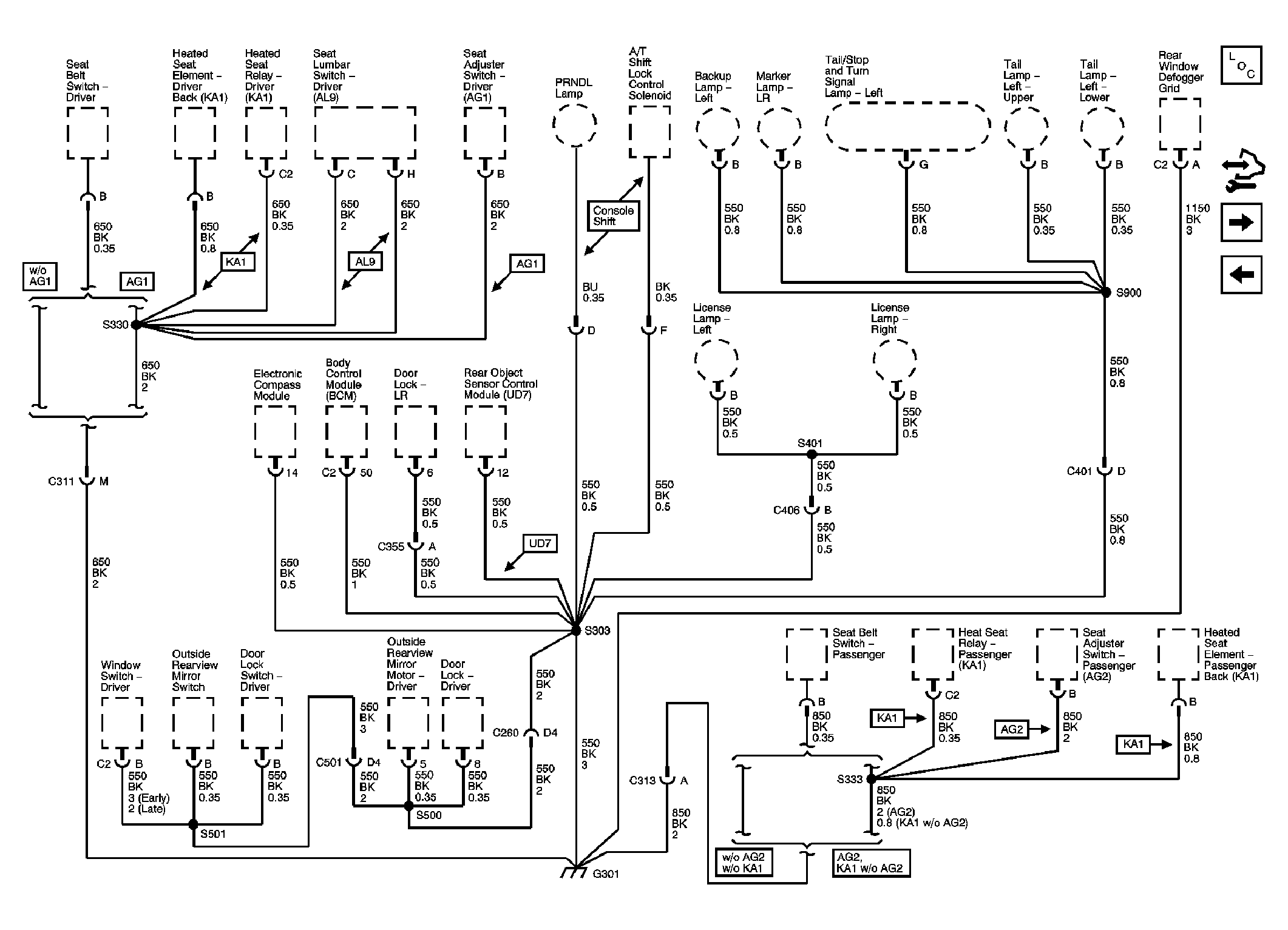

Fig 9: G301 Schematic
GM1889085Courtesy of GENERAL MOTORS CORP.

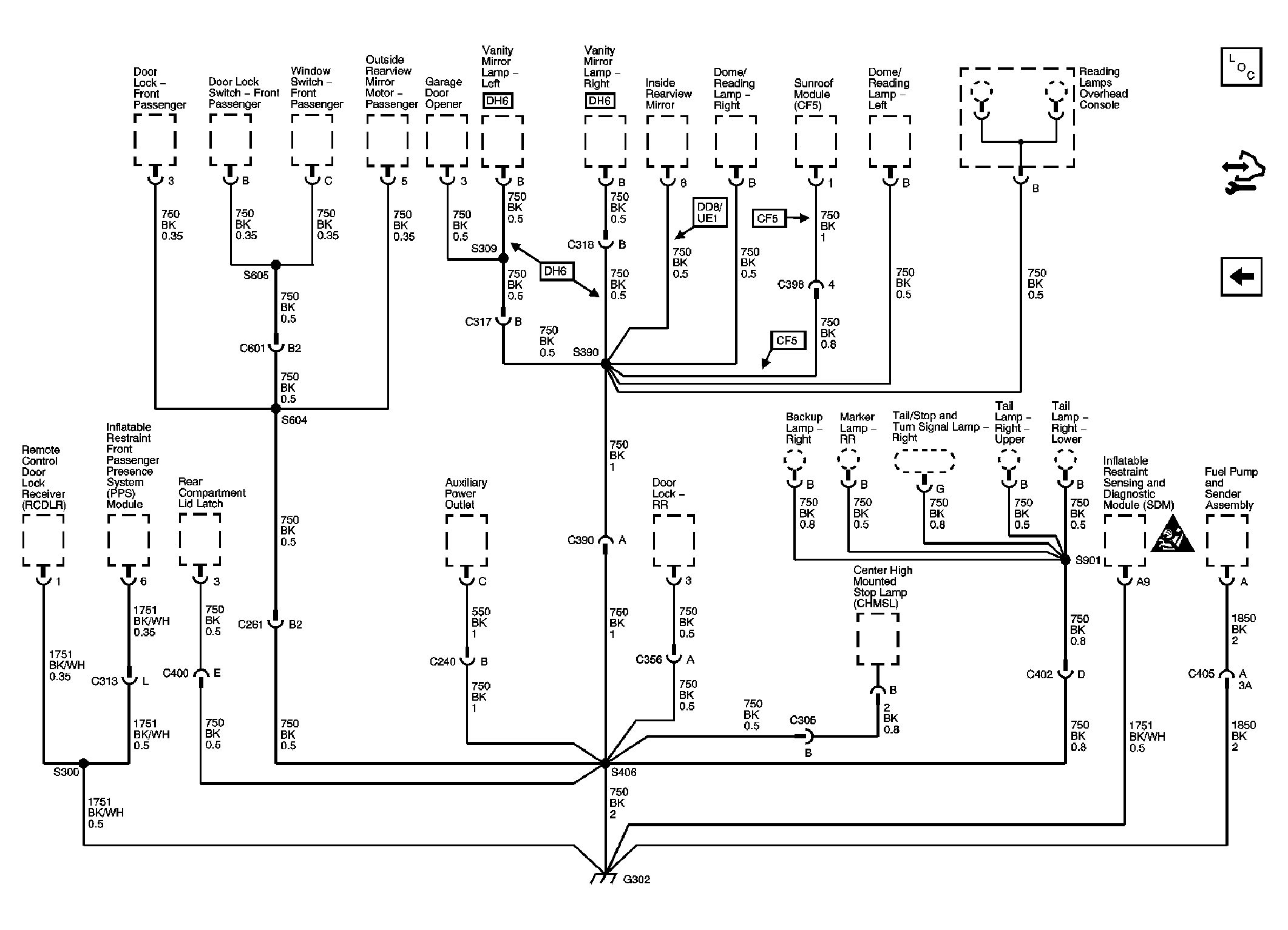

Fig 10: G302 Schematic
GM1889089Courtesy of GENERAL MOTORS CORP.
