Instrument Cluster Schematics

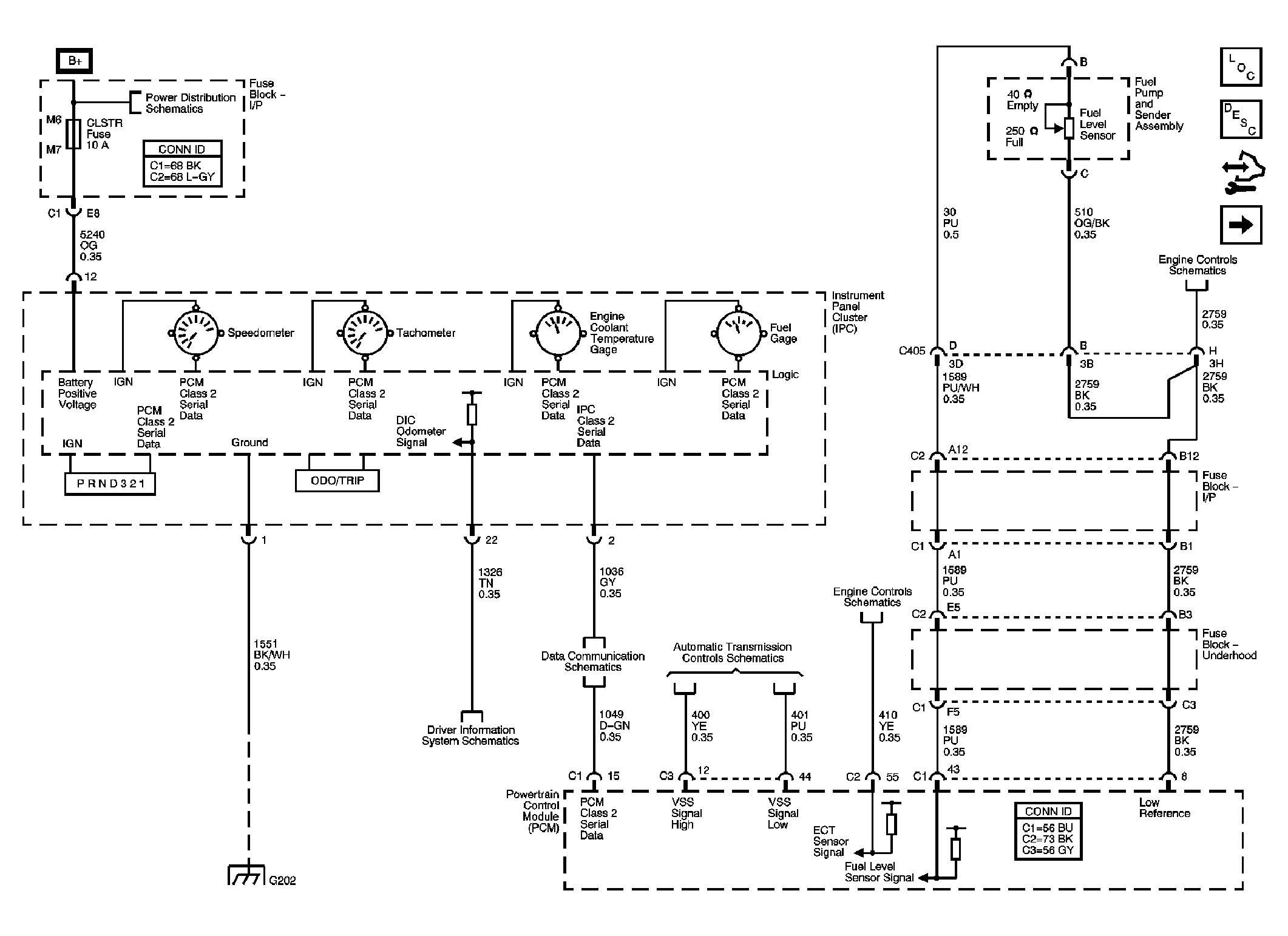

Fig 1: Power, Ground, Serial Data, and Gages Schematic - L26

Courtesy of GENERAL MOTORS CORP.

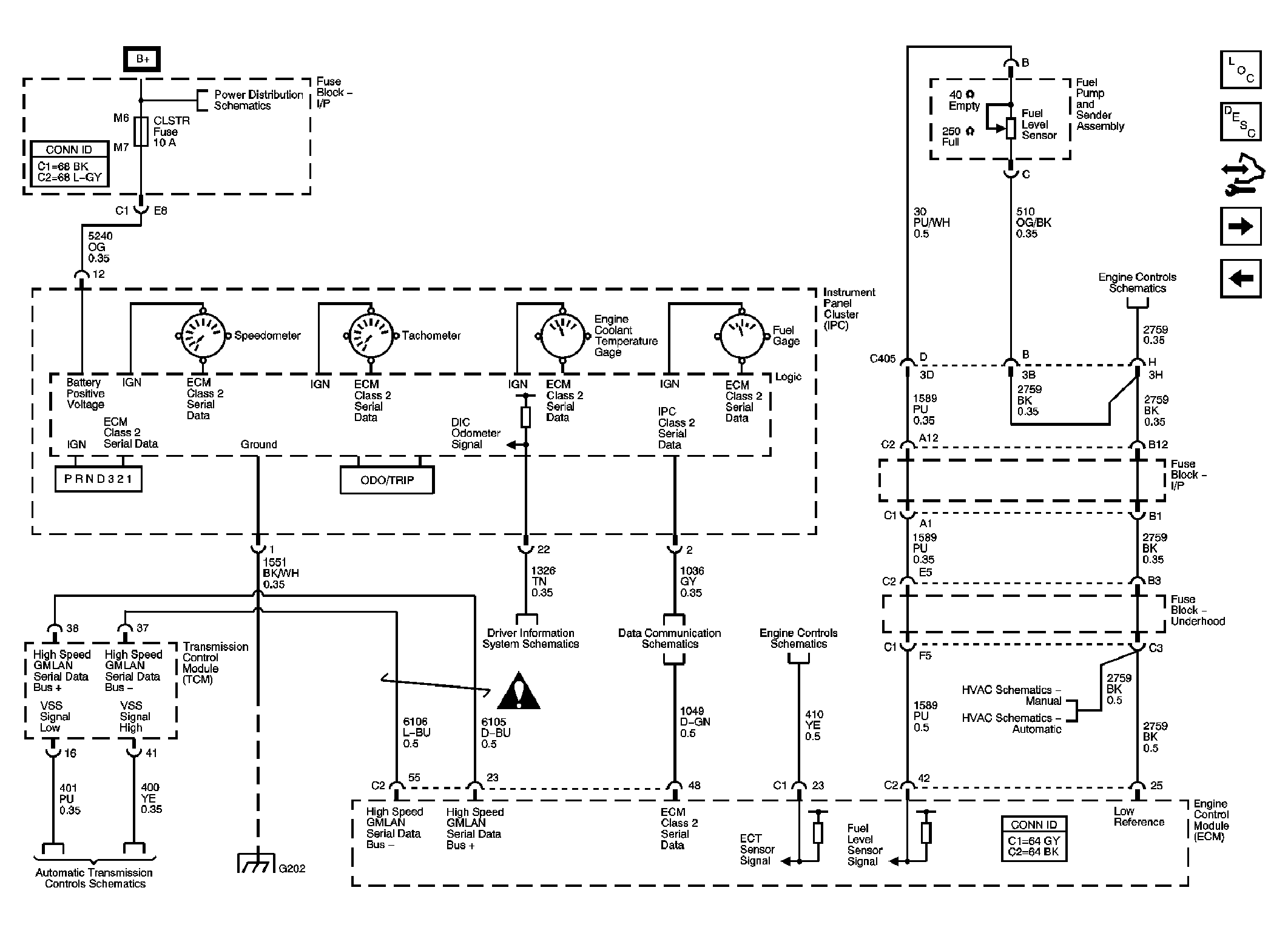

Fig 2: Power, Ground, Serial Data, and Gages Schematic - LY7

Courtesy of GENERAL MOTORS CORP.

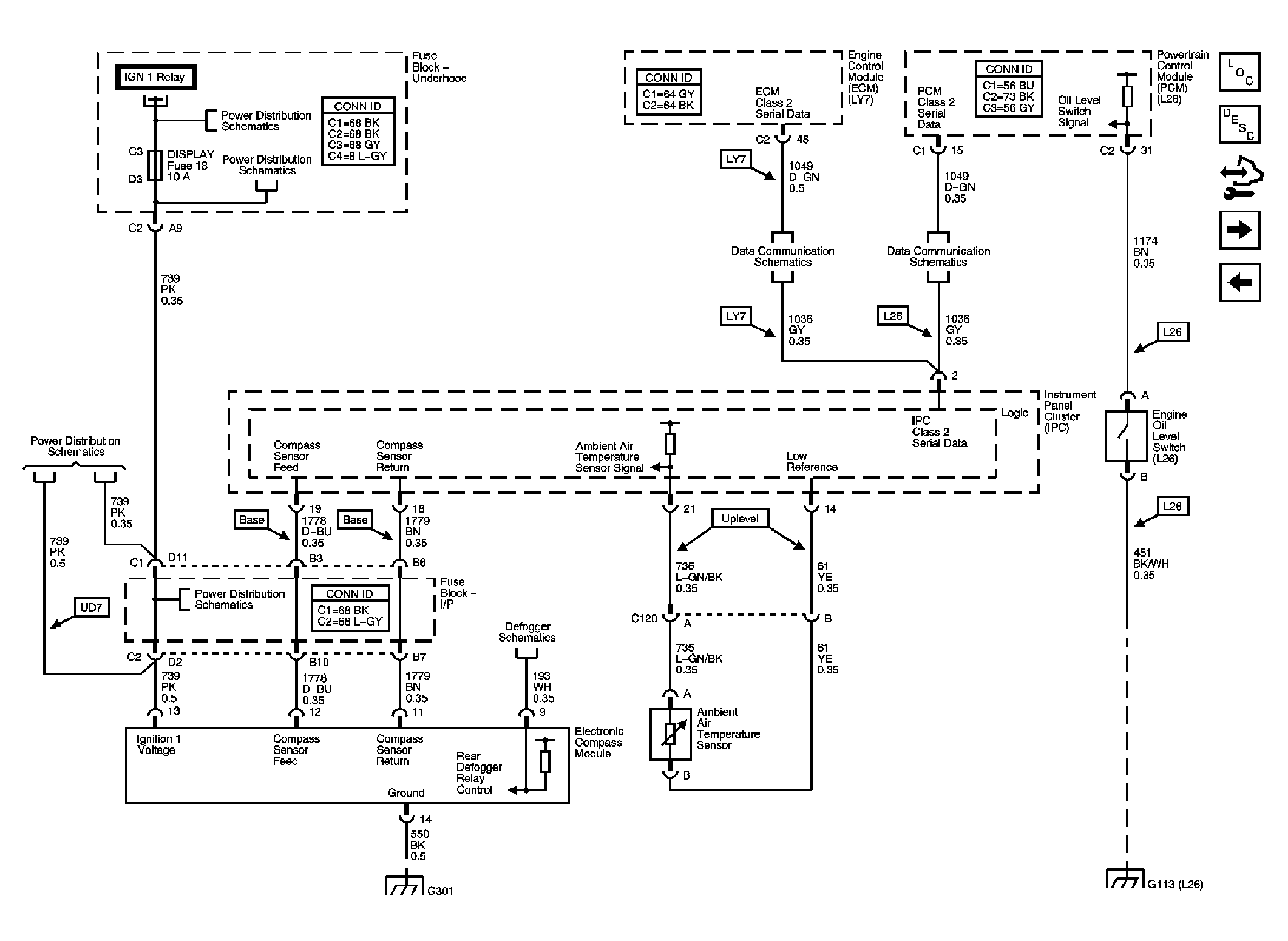

Fig 3: Ambient Air Temperature Sensor, Electronic Compass Module & Oil Level Switch Schematic

Courtesy of GENERAL MOTORS CORP.

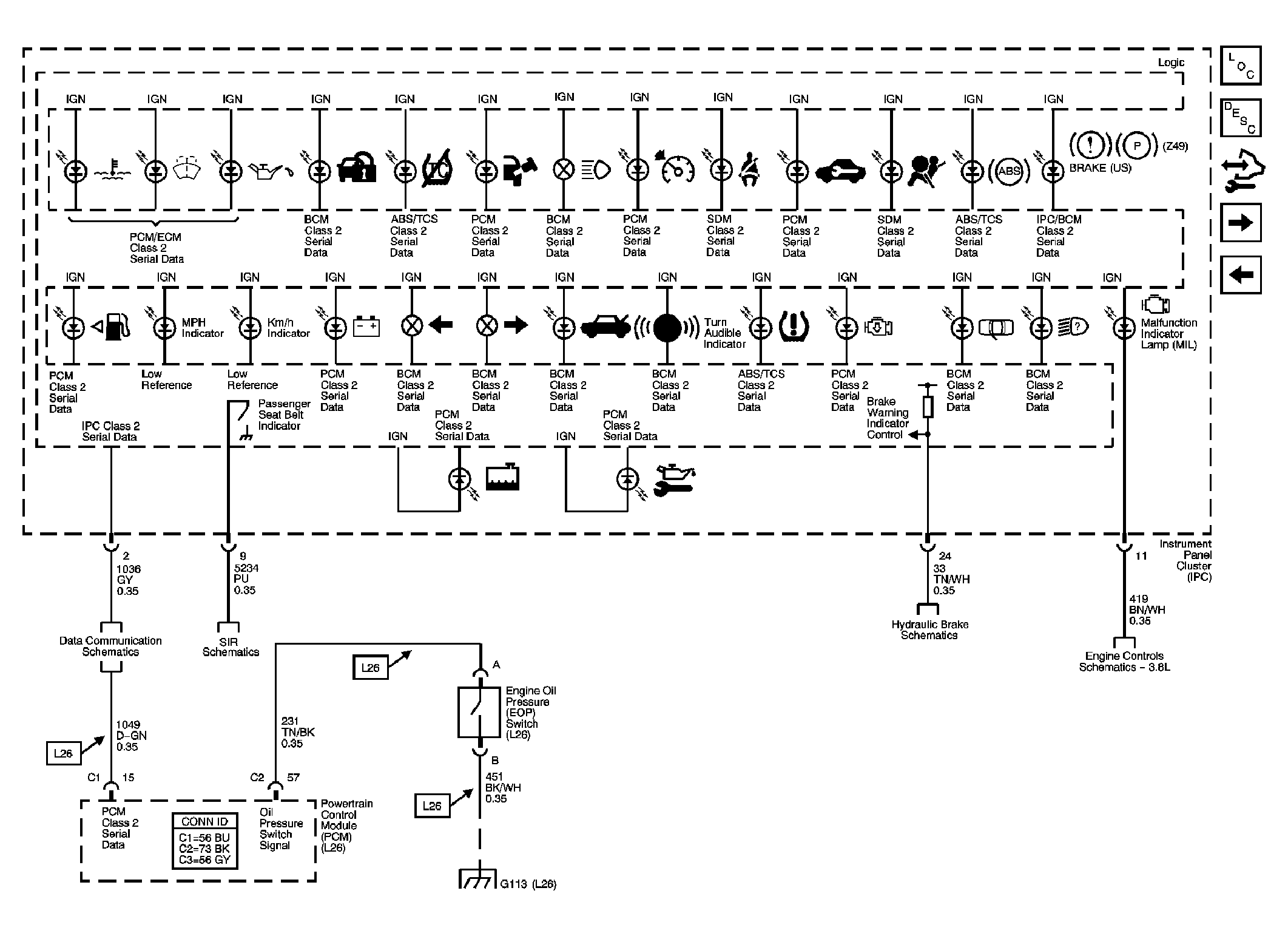

Fig 4: Indicators Schematic - U2E

Courtesy of GENERAL MOTORS CORP.

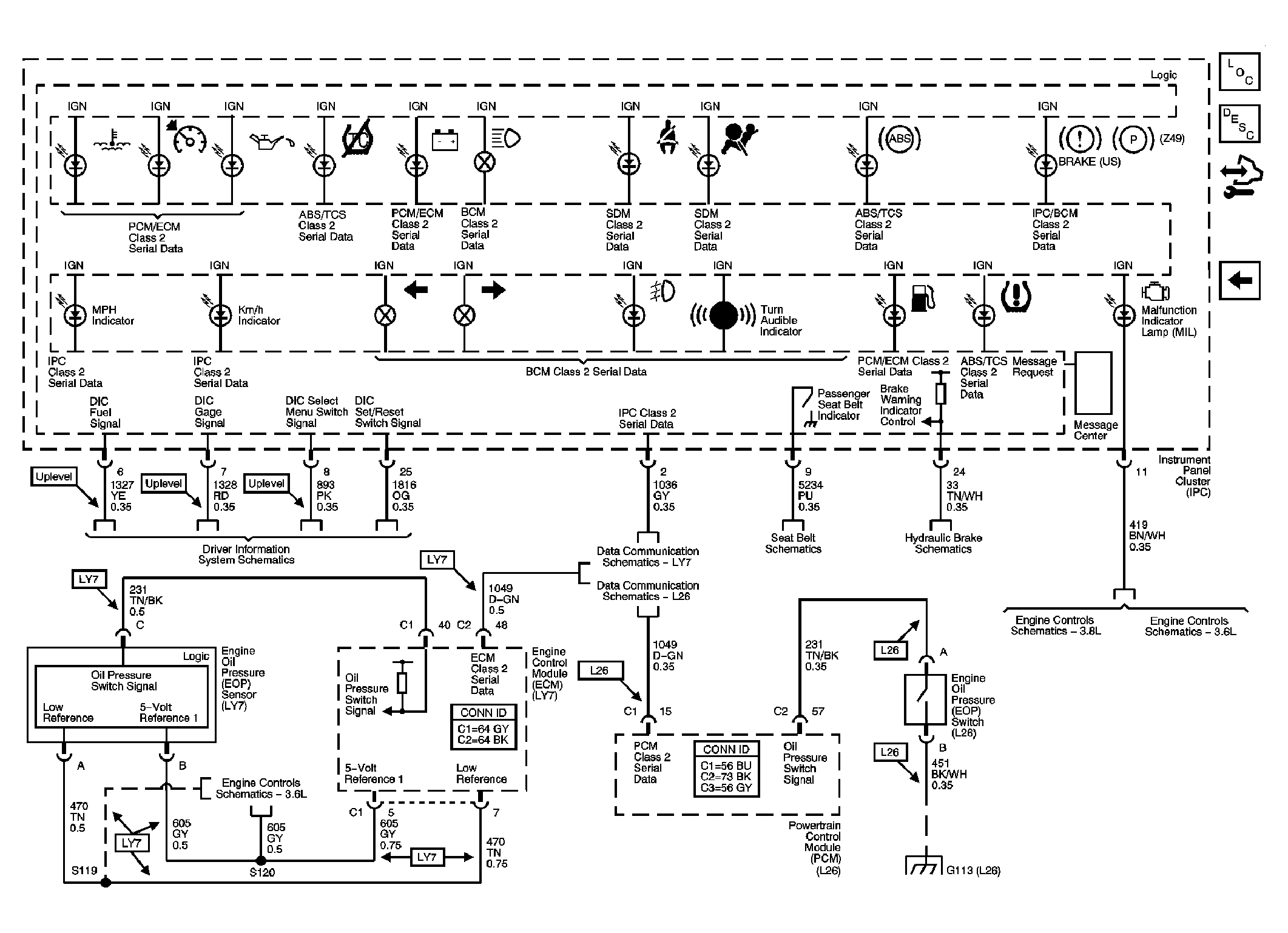

Fig 5: Indicators Schematic - UH8

Courtesy of GENERAL MOTORS CORP.
