Driver Information System Schematics

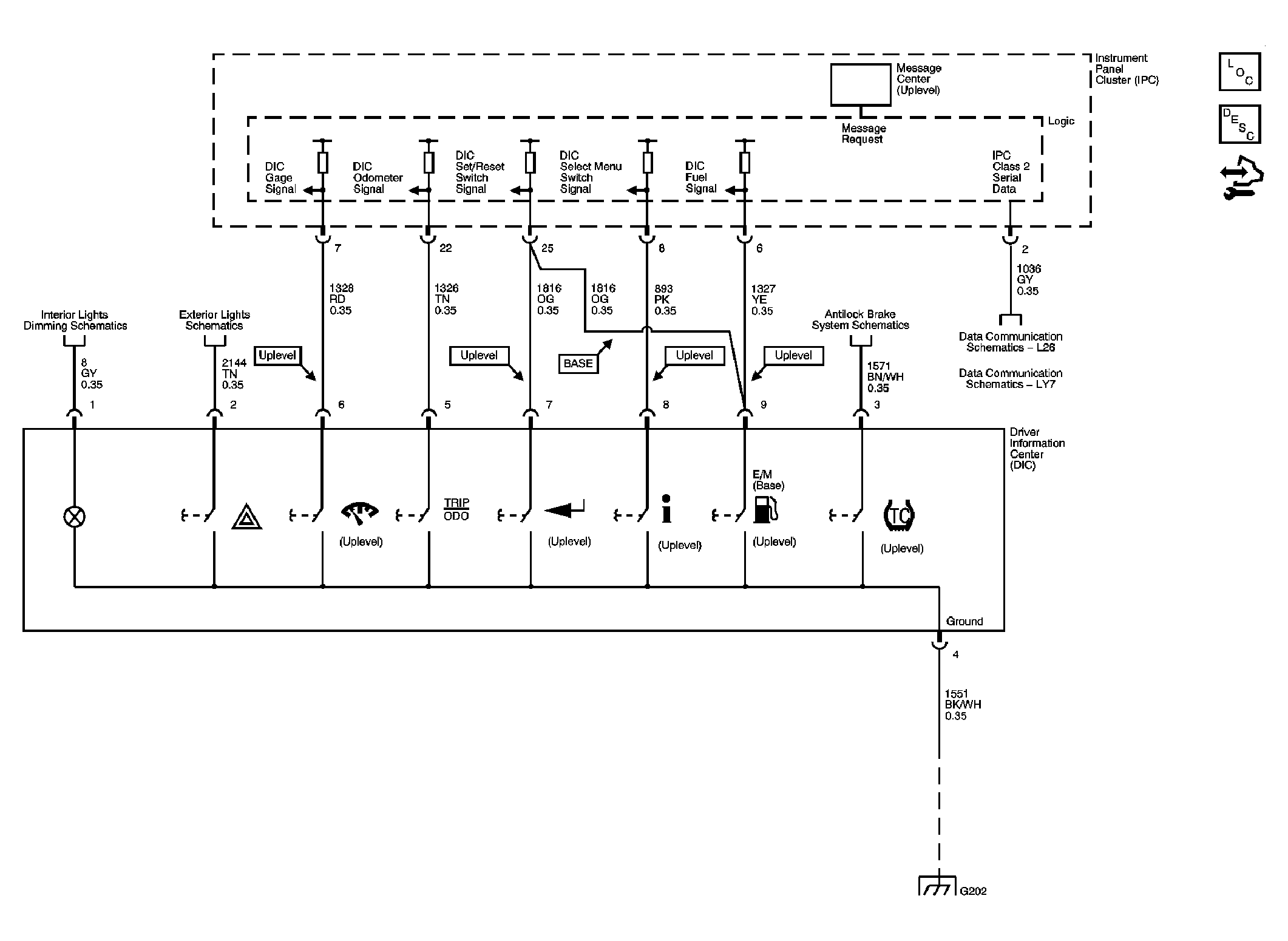

Fig 1: Driver Information System Schematic

GM1888886

Courtesy of GENERAL MOTORS CORP.
