Instrument Panel Insulator Panel Replacement - Left Side

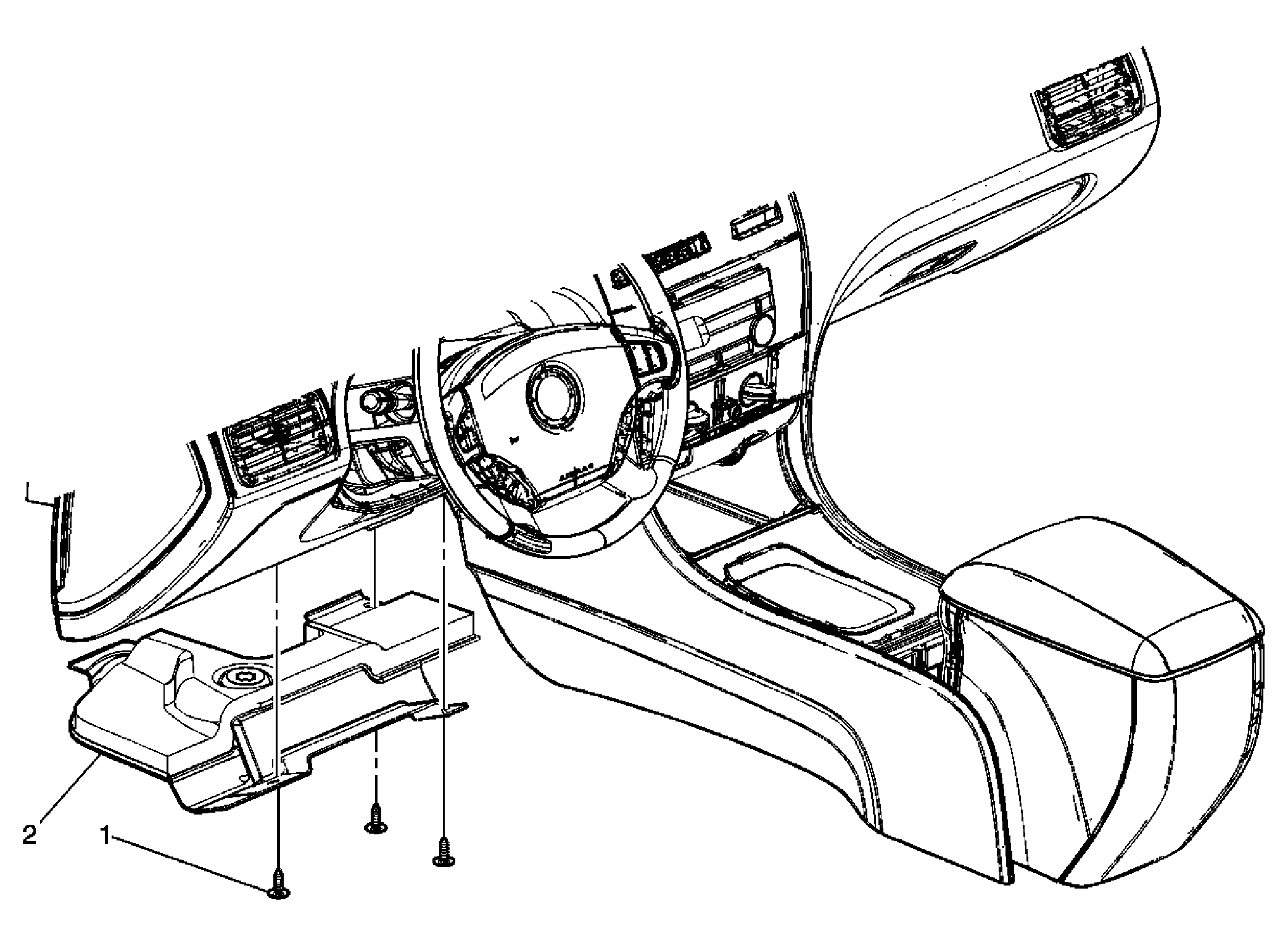

Fig 1: Identifying Left Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Instrument Panel Insulator Retainer (Qty: 3)
2	Instrument Panel Insulator Tip:  Remove the courtesy lamp from the insulator before removal.
