Front Floor Console Replacement

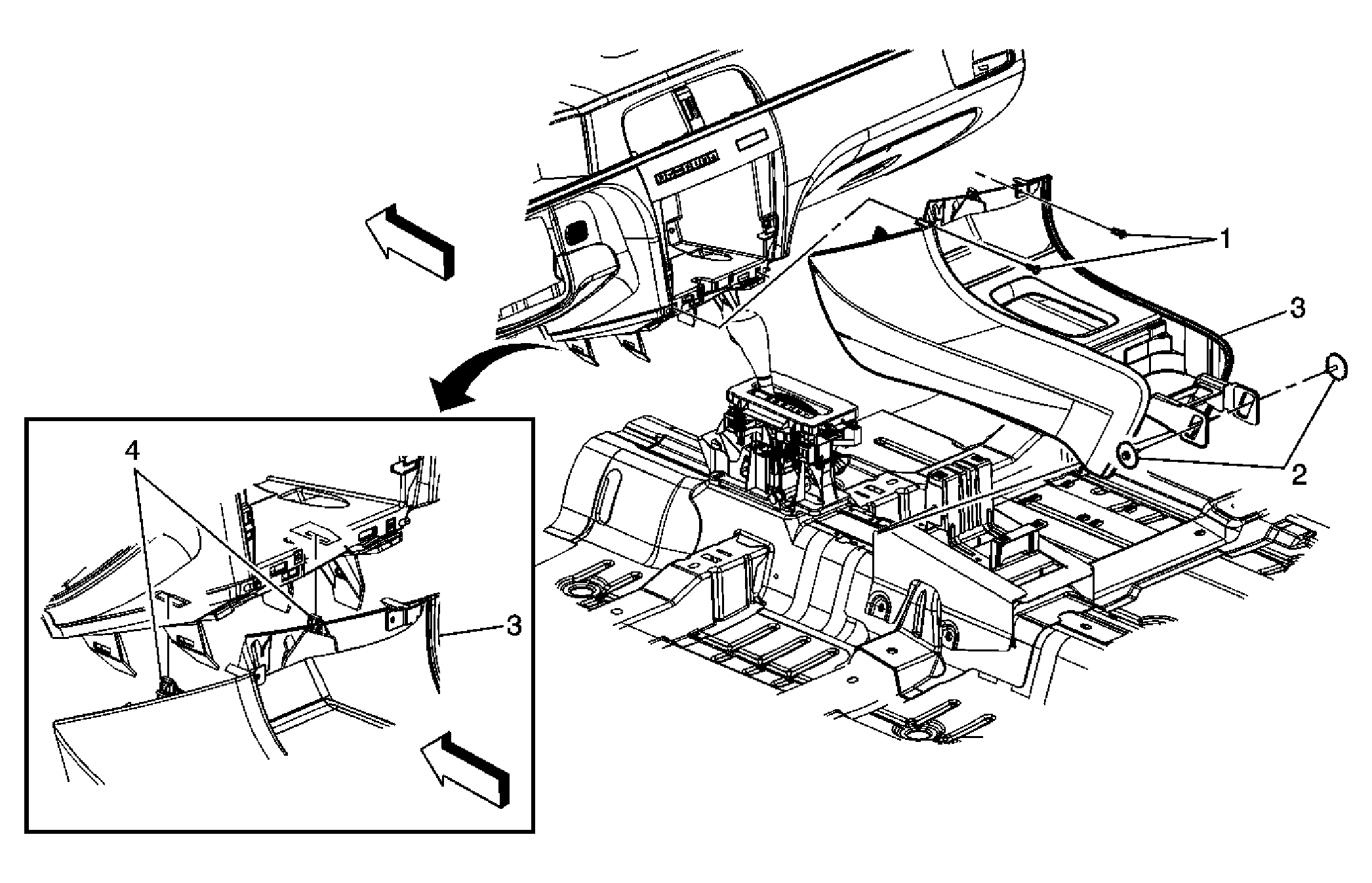

Fig 1: Identifying Front Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear floor console. Refer to Rear Floor Console Replacement . Remove the instrument panel lower trim plate. Refer to Instrument Panel Lower Trim Plate Replacement . Set the parking brake, then shift the transmission into drive and push the shift indicator down until it locks, to allow clearance to remove the console.
1	Front Floor Console Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Bolt (Qty: 2) Tighten: 10 N.m (88 lb in)
3	Front Floor Console Assembly
4	Front Floor Console Retainer Clip (Qty: 2)
