Rear Compartment Lid Replacement

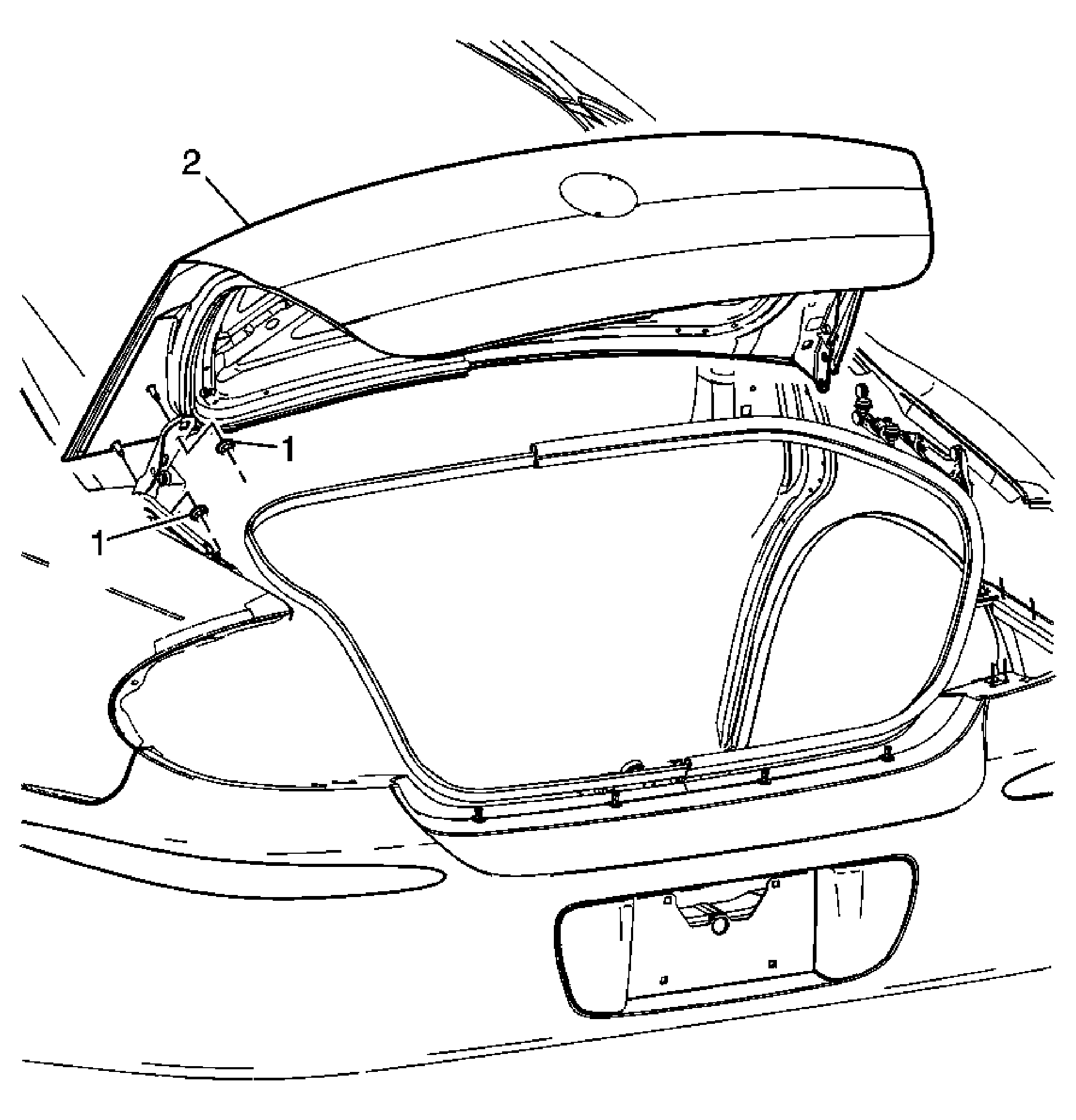

Fig 1: View Of Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Compartment Lid Nuts (Qty: 4) Tighten: 25 N.m (19 lb ft)
2	Rear Compartment Lid Tip: Disconnect electrical connector.
