Hood Latch Support Replacement

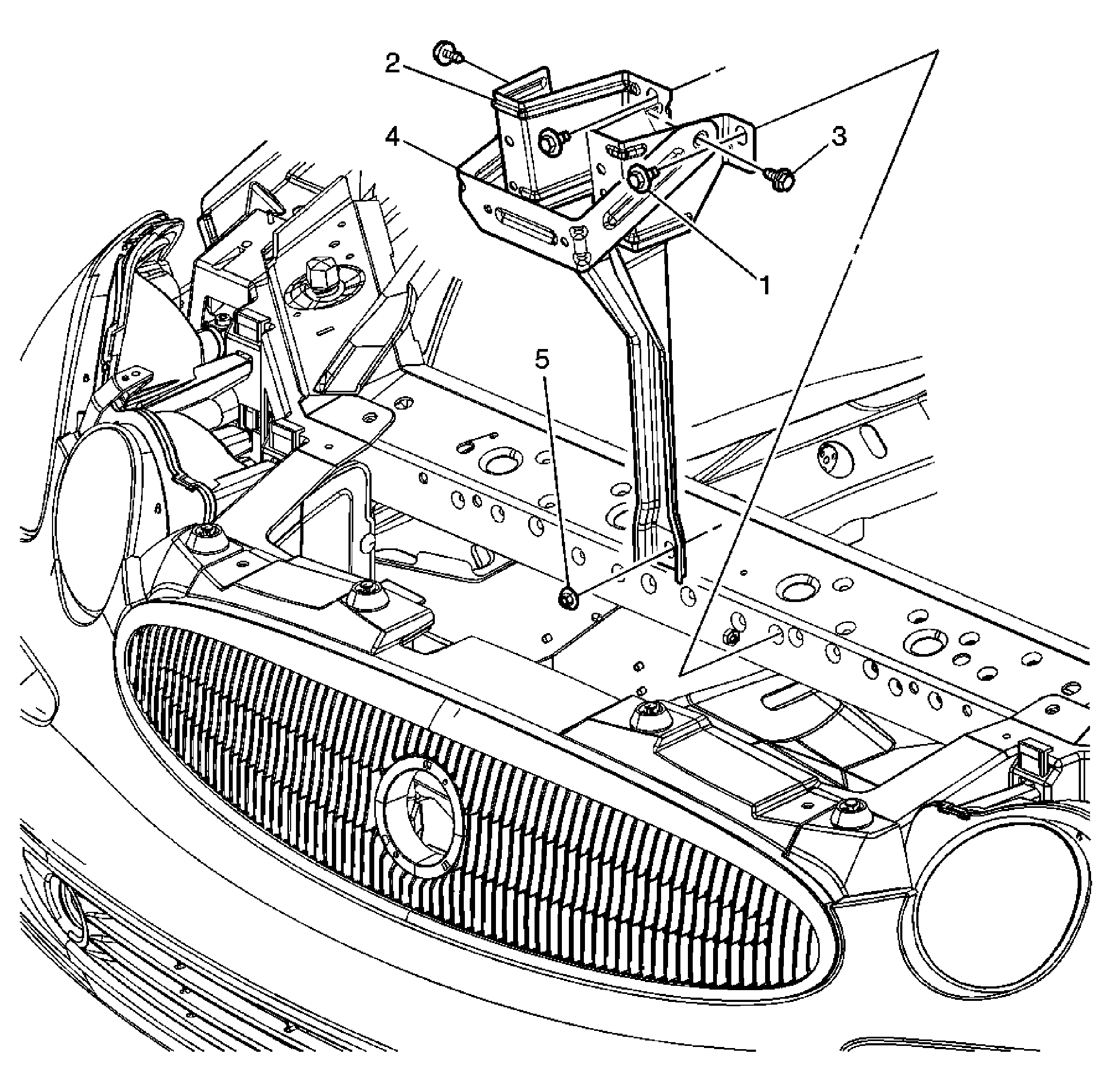

Fig 1: View Of Hood Latch Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radiator support sight shield. Refer to Radiator Support Sight Shield Replacement . Remove the hood latch. Refer to Hood Primary and Secondary Latch Replacement .
1	Hood Latch Support Secondary Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Hood Latch Secondary Support Bracket
3	Hood Latch Support Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
4	Hood Latch Support Nut Tighten: 10 N.m (89 lb in)
5	Hood Latch Support Bracket
