Removal Procedure

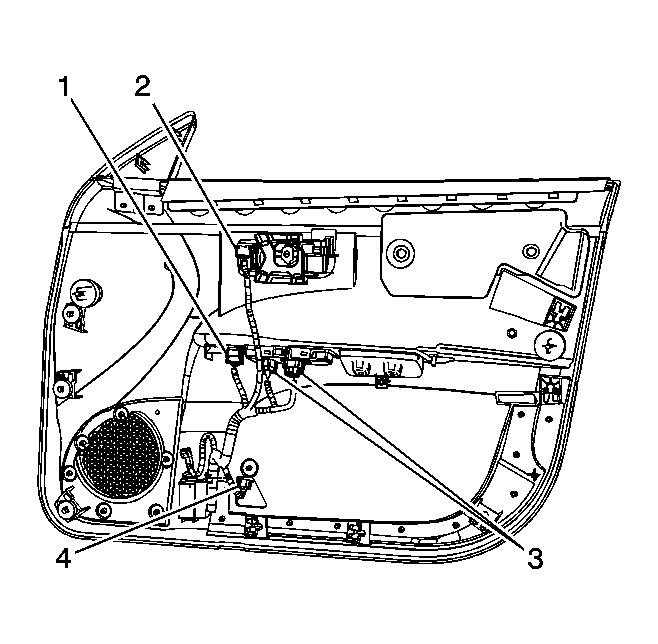

    Fig 1: Identifying Front Side Door Switch Harness
    GM1351826Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the following switch electrical connectors:
    • The power rearview mirror switch (1)
    • The power door switch (2)
    • The power window switch (3)
    • The rear compartment lid switch (4)
  3. Remove the harness from the trim panel.
