OnStar Schematics
OnStar Schematics

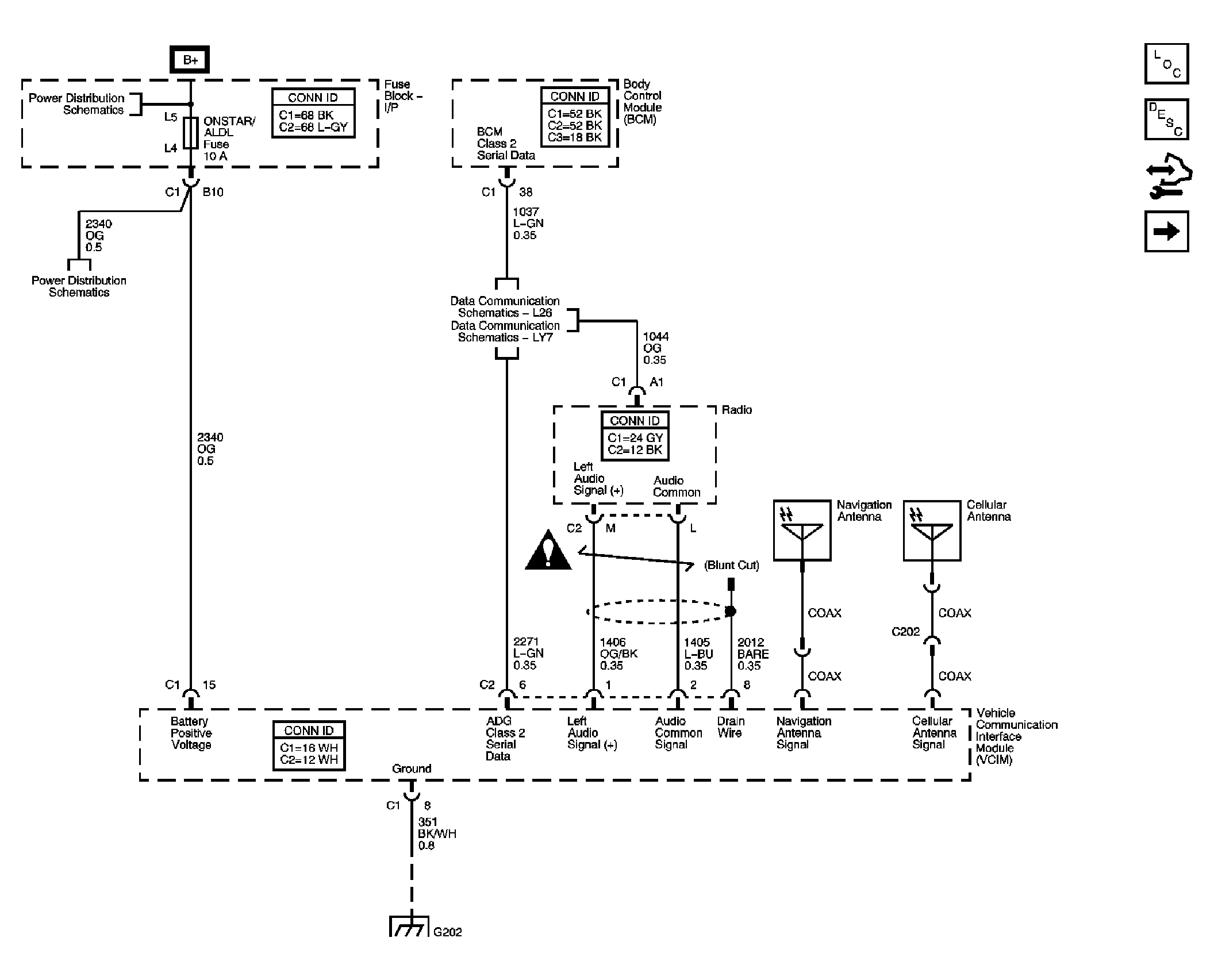

Fig 1: Power, Ground, Serial Data, and Antennas Schematic
Courtesy of GENERAL MOTORS CORP.

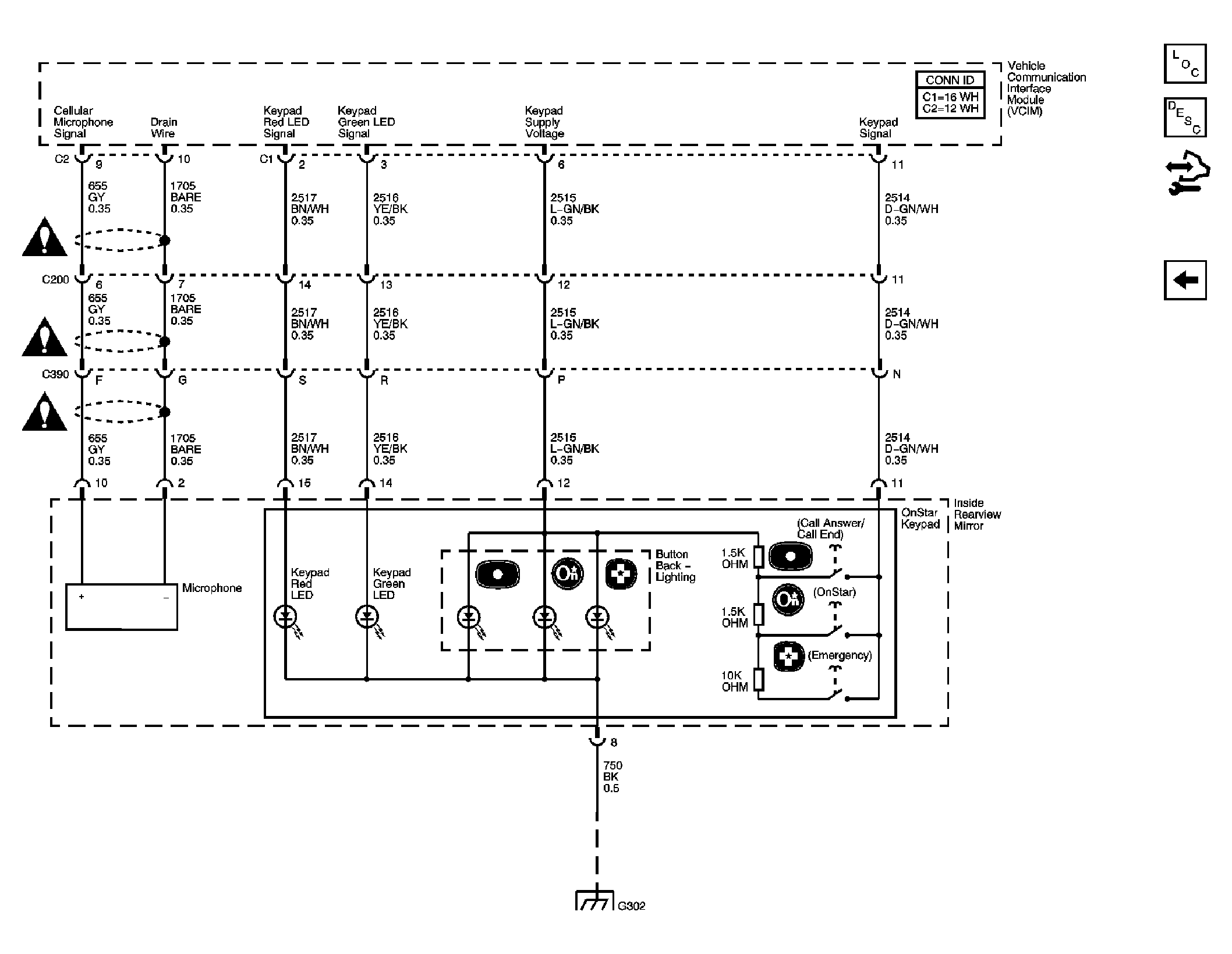

Fig 2: VCIM to Inside Rearview Mirror Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
