Data Communication Schematics

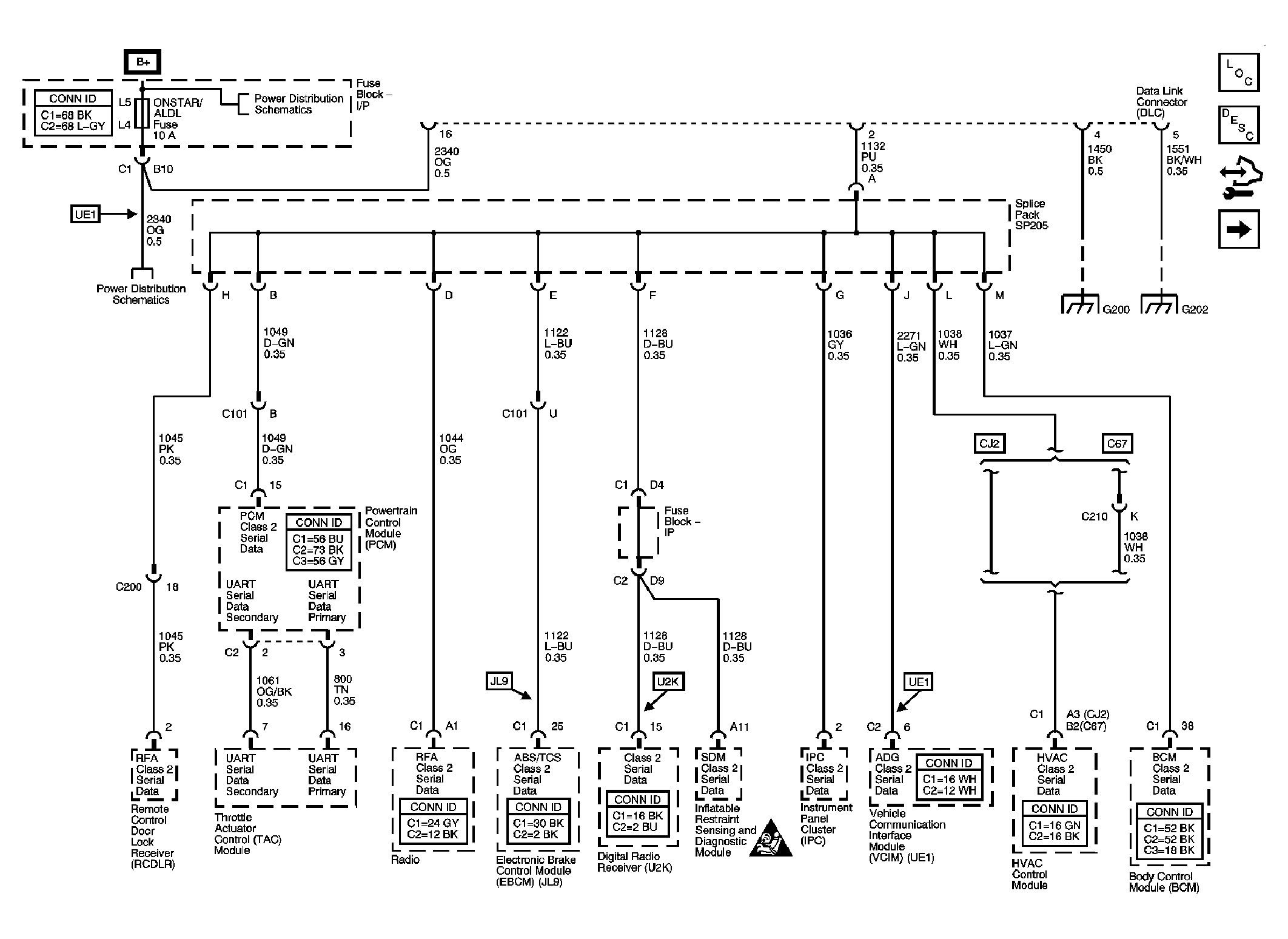

Fig 1: Data Communication Schematic - L26

GM1889373

Courtesy of GENERAL MOTORS CORP.

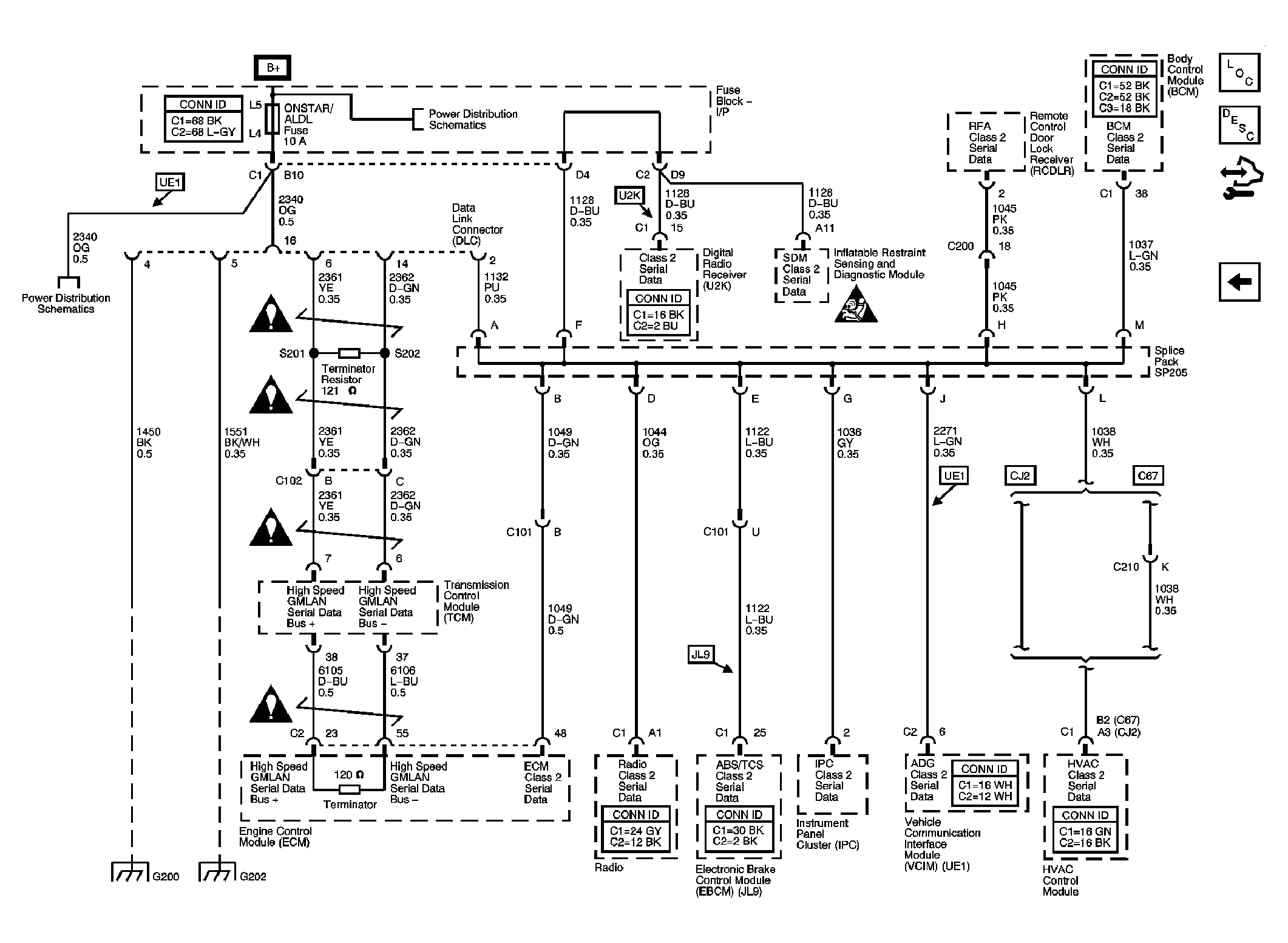

Fig 2: Data Communication Schematic - LY7

GM1889376

Courtesy of GENERAL MOTORS CORP.
