Home >> Buick >> 2008 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Diagrams

Wiper Motor: Diagrams

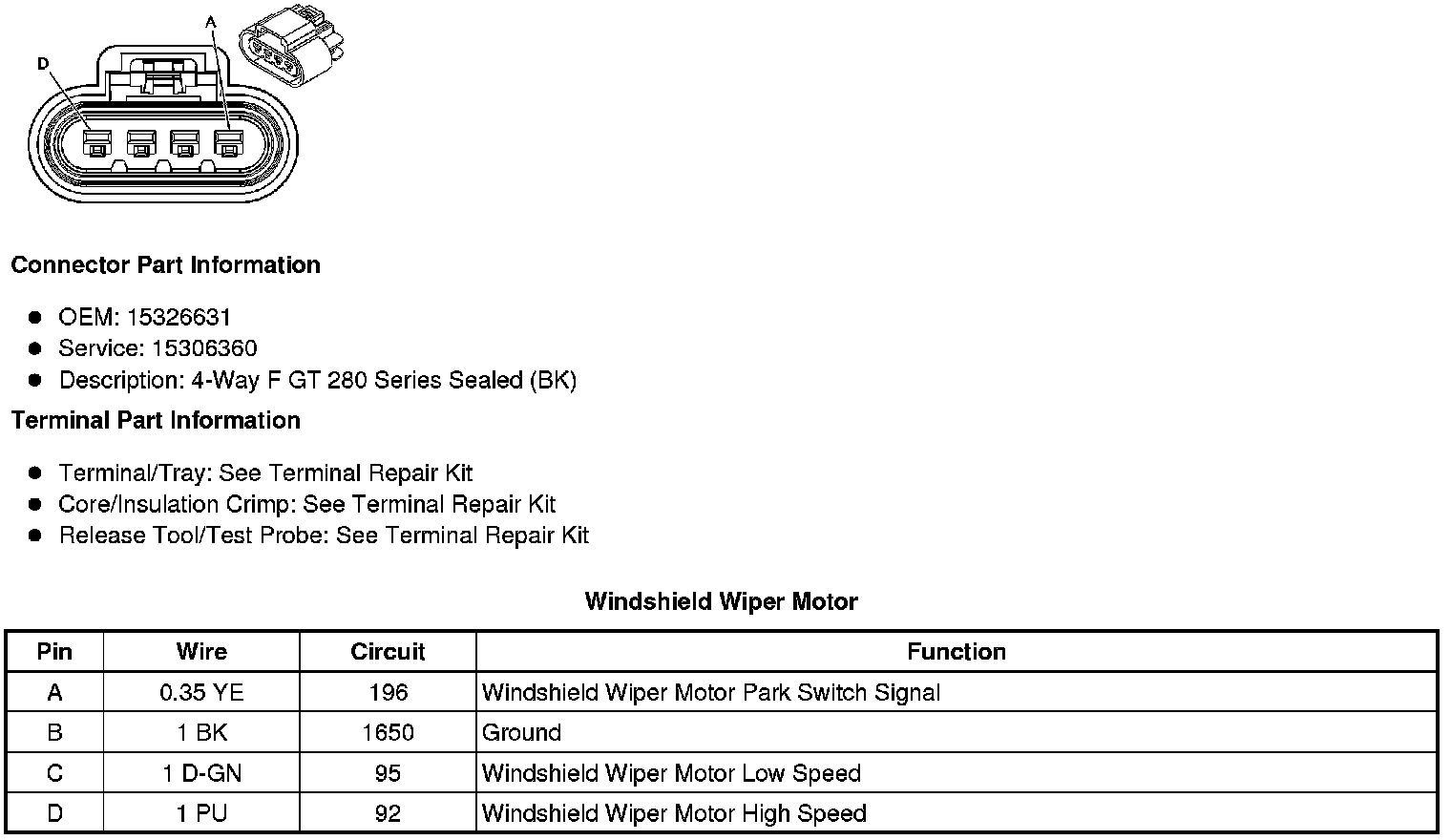

Component Connector End Views

Windshield Wiper Motor
