Home >> Buick >> 2008 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Washer Fluid Level Switch >> Diagrams

Washer Fluid Level Switch: Diagrams

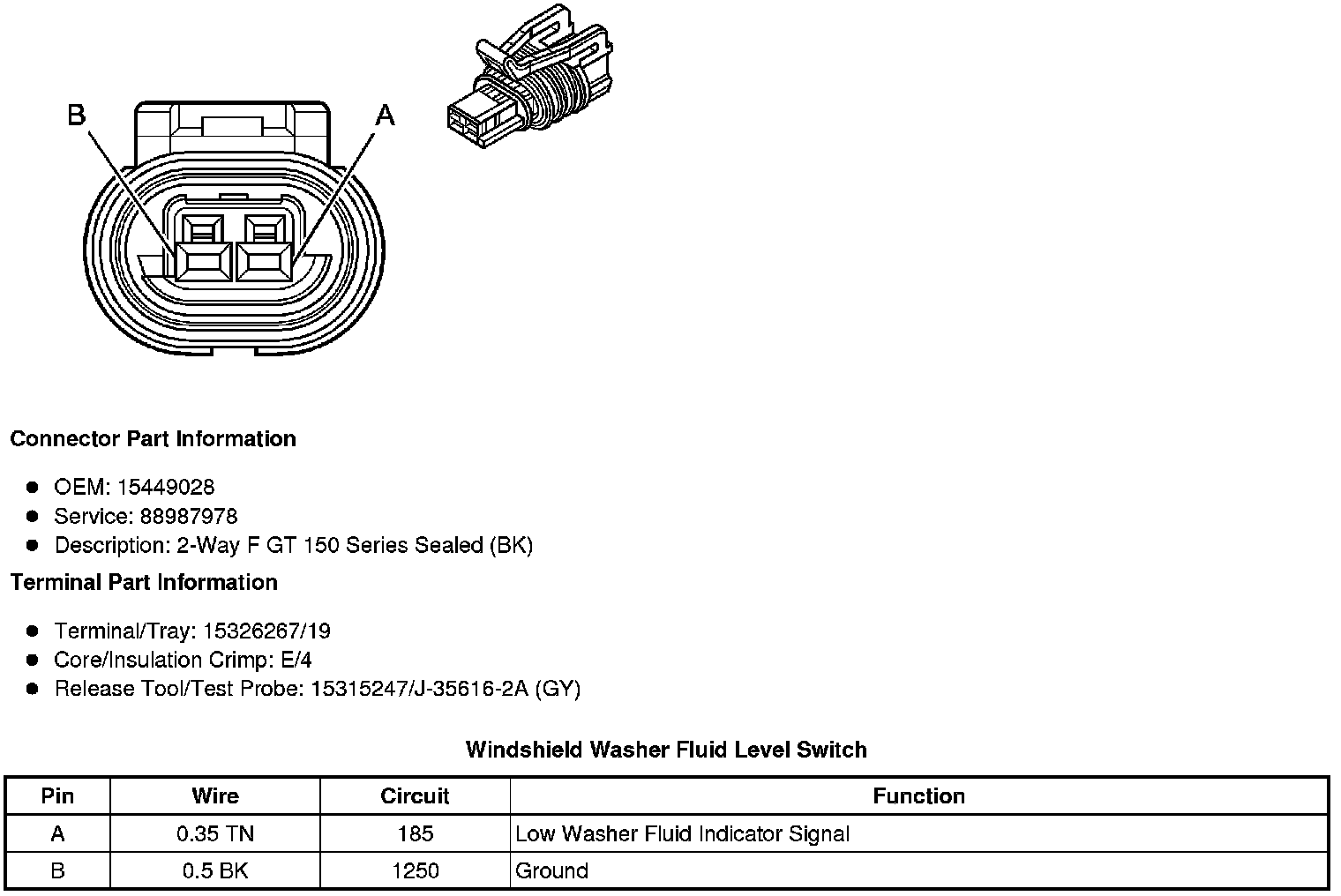

Component Connector End Views

Windshield Washer Fluid Level Switch
