Refrigerant Pressure Sensor / Switch: Diagrams
Component Connector End Views

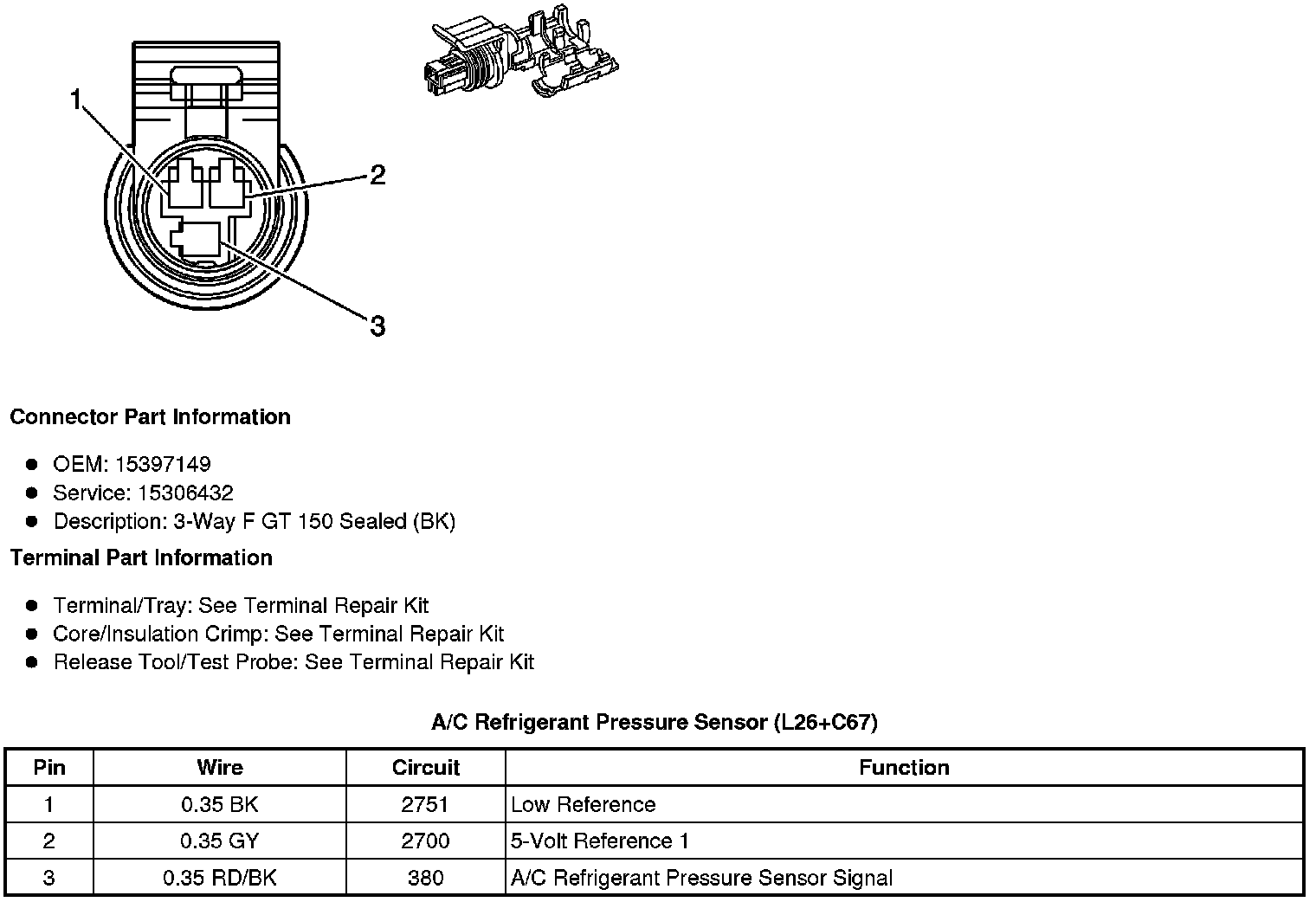

A/C Refrigerant Pressure Sensor (L26+C67)
A/C Refrigerant Pressure Sensor (LS4+C67)
A/C Refrigerant Pressure Sensor (L26+CJ2)

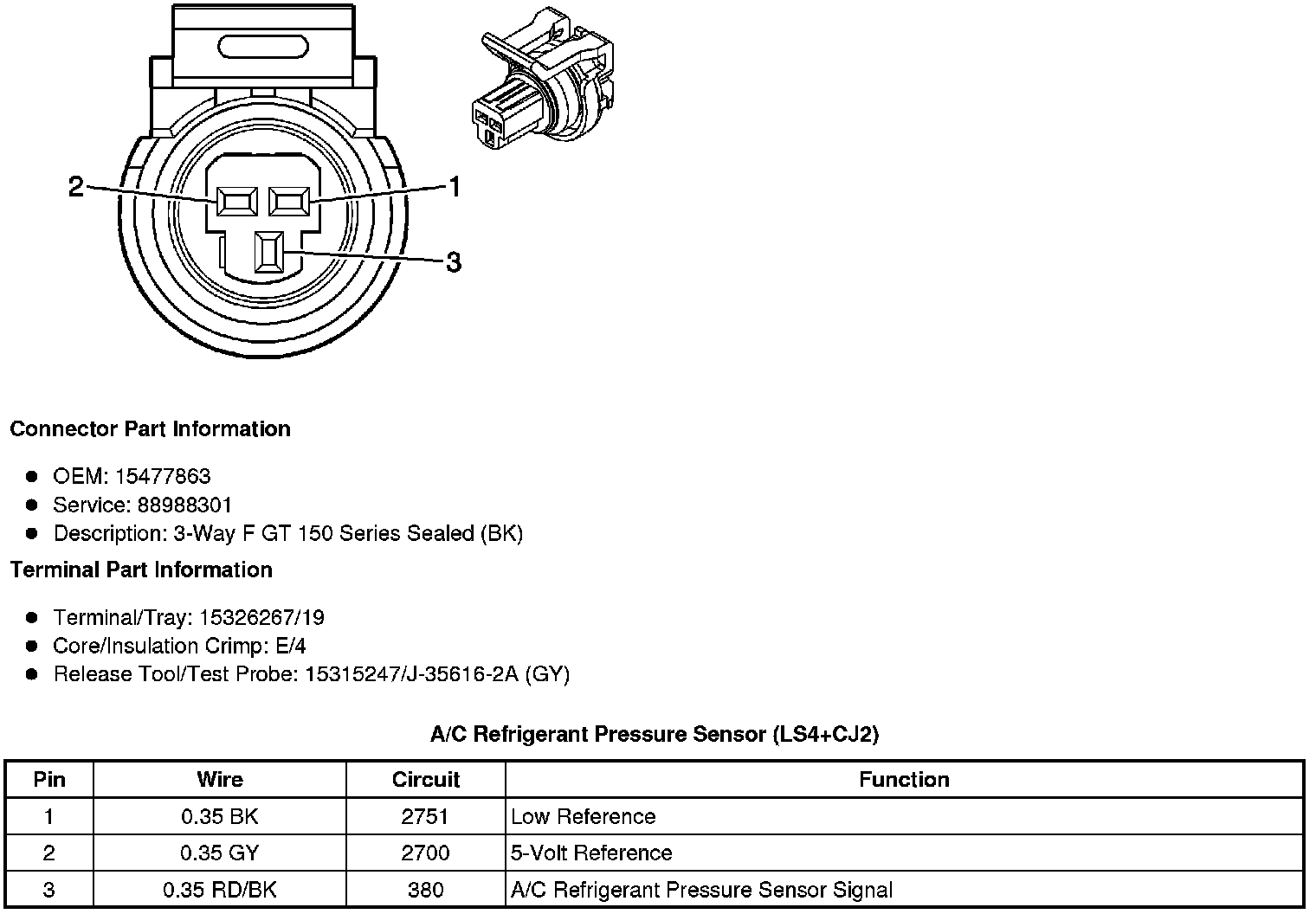

A/C Refrigerant Pressure Sensor (LS4+CJ2)
A/C Refrigerant Pressure Sensor (LY7+C67)

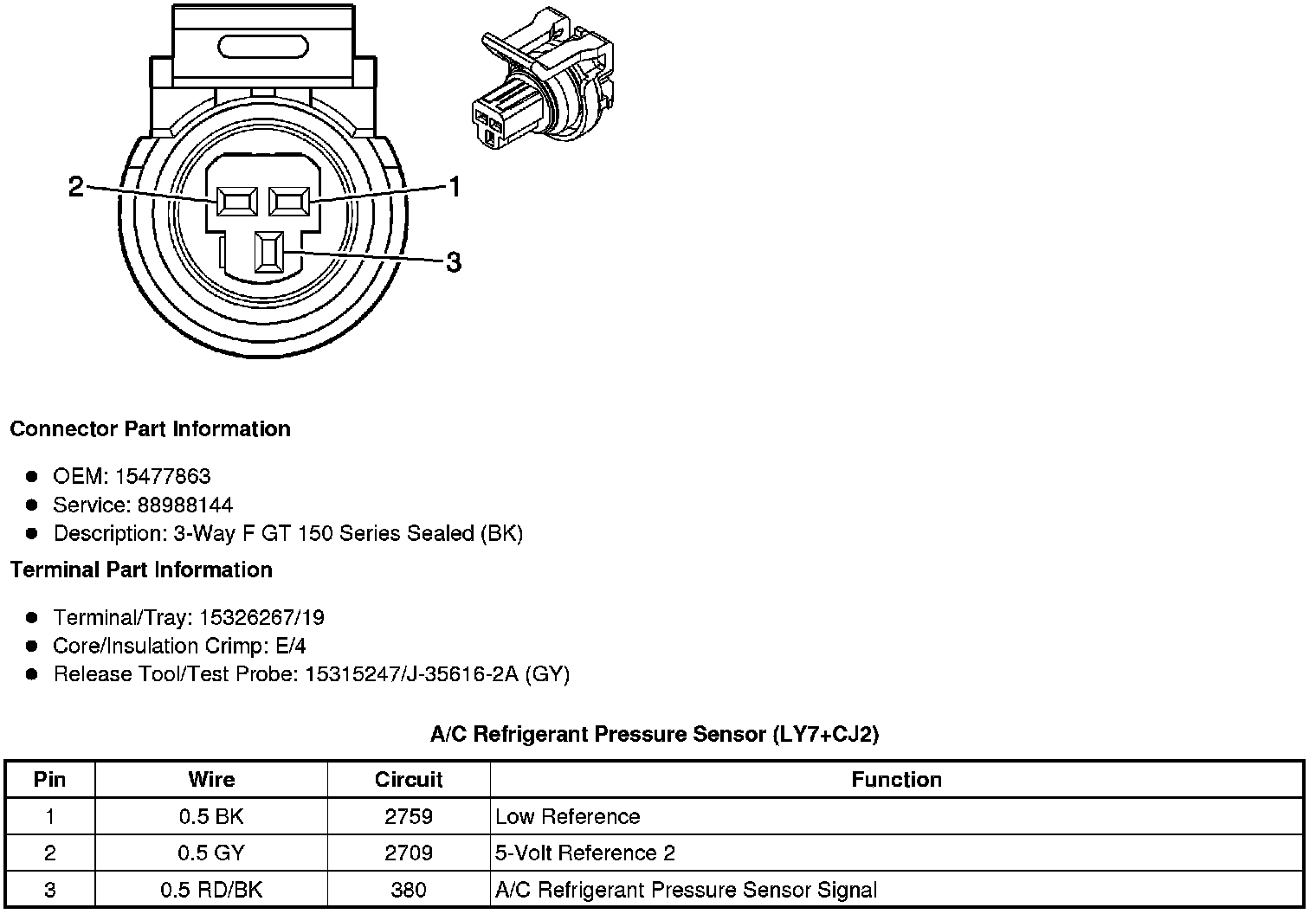

A/C Refrigerant Pressure Sensor (LY7+CJ2)
