Yaw Rate Sensor: Diagrams

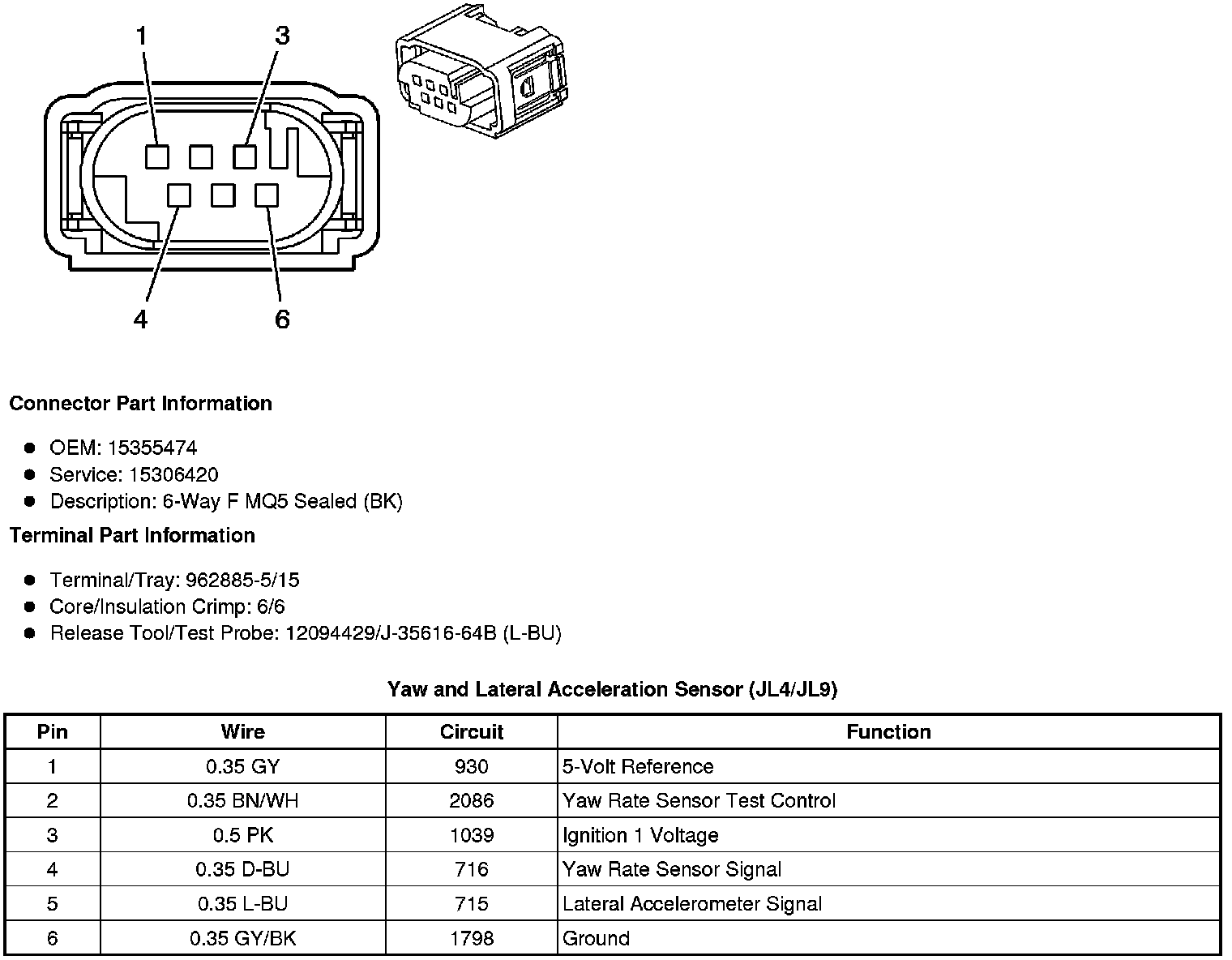

Component Connector End Views


Yaw and Lateral Acceleration Sensor (JL4/JL9)
