Brake Fluid Pressure Sensor/Switch: Diagrams

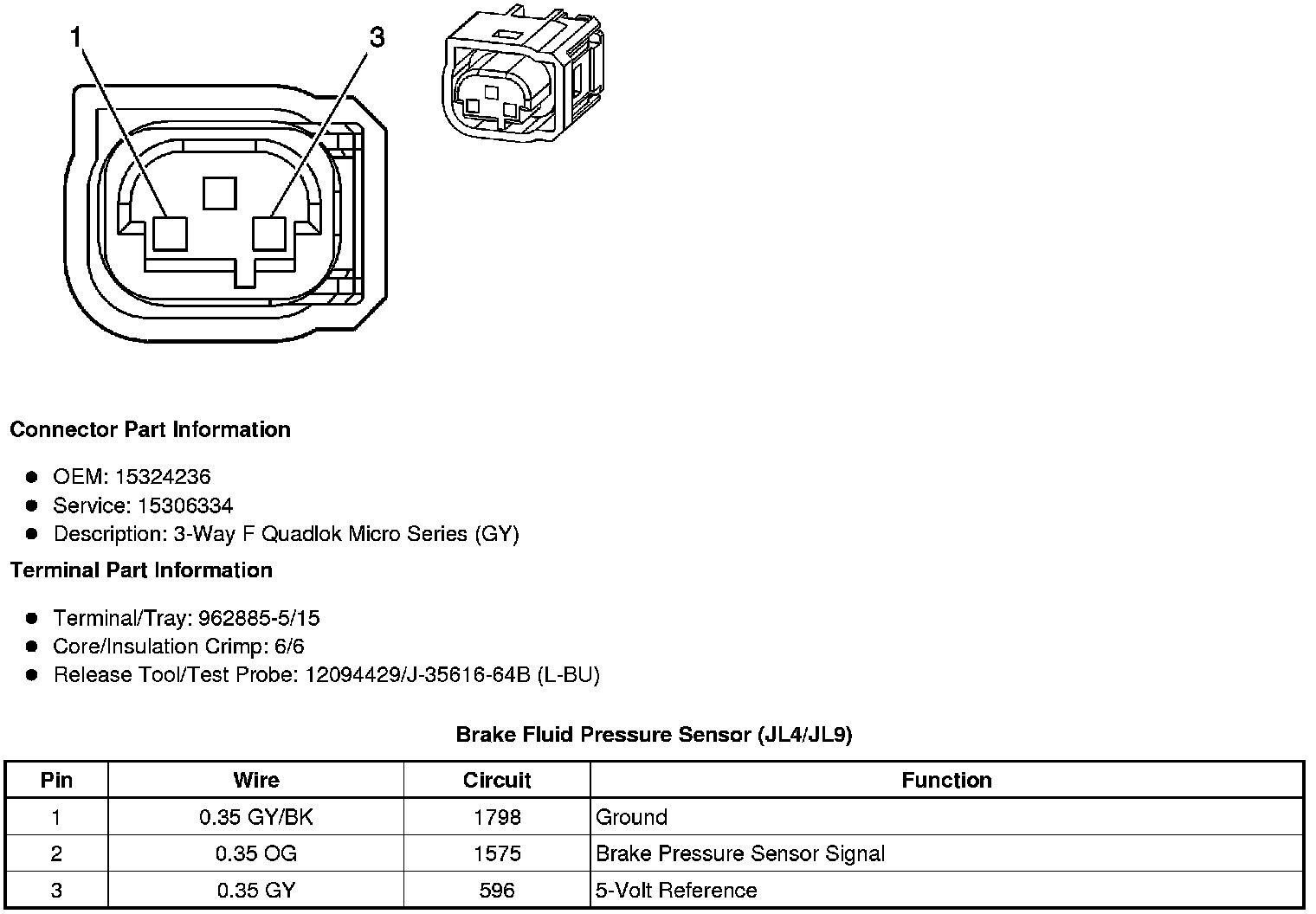

Component Connector End Views


Brake Fluid Pressure Sensor (JL4/JL9)
