Power Seat Switch: Diagrams



Component Connector End Views

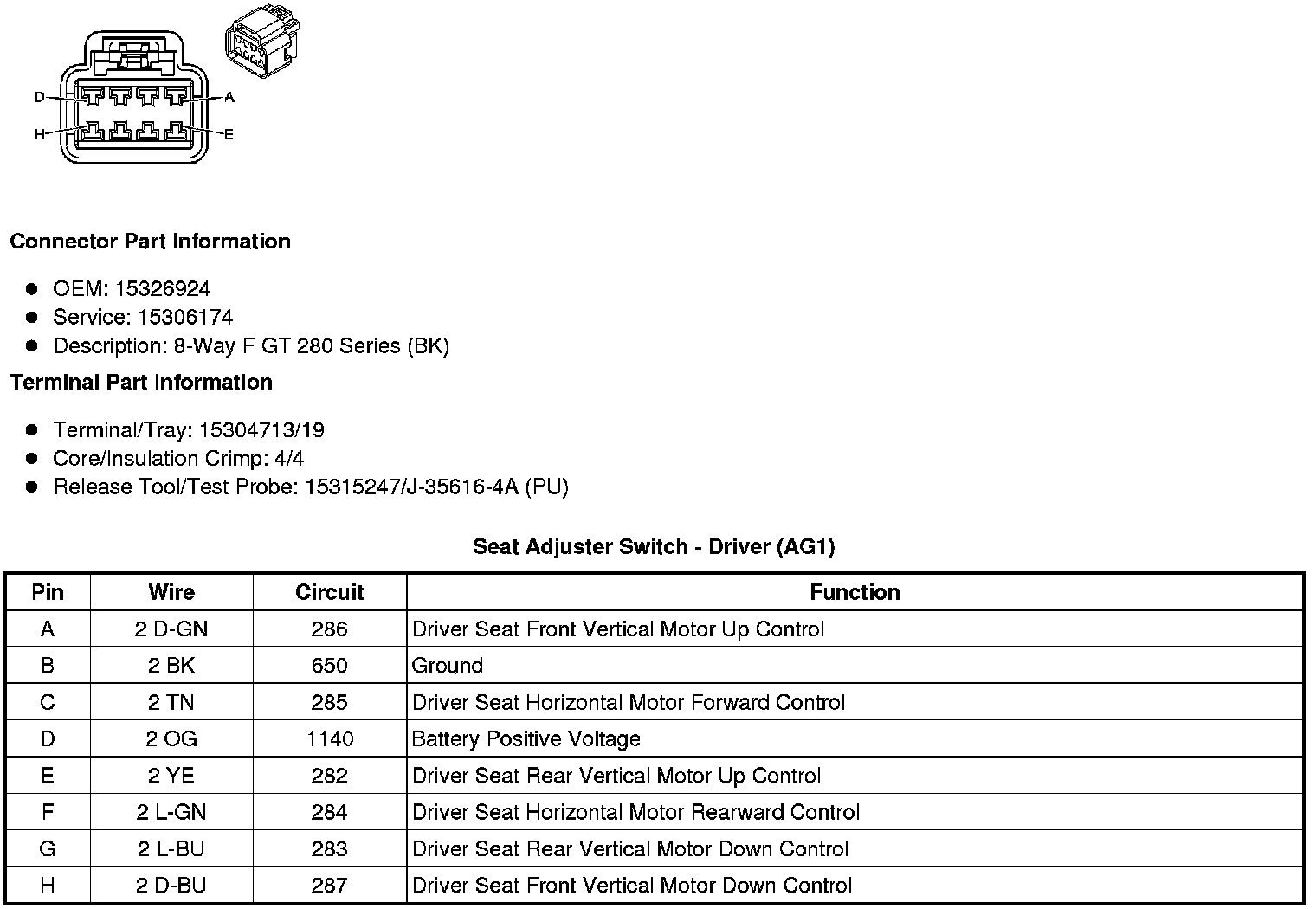

Seat Adjuster Switch - Driver (AG1)

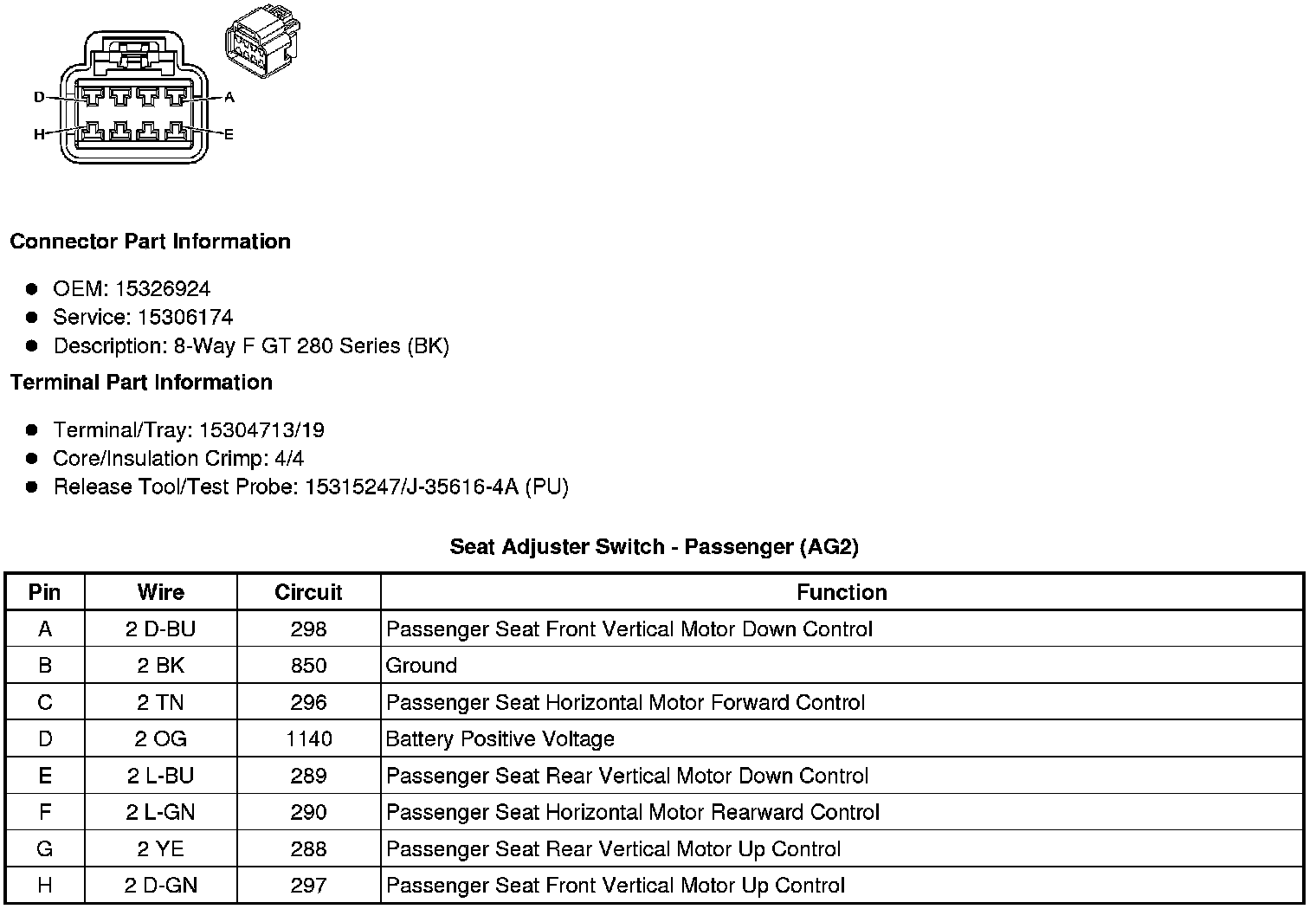

Seat Adjuster Switch - Passenger (AG2)





Seat Lumbar Switch - Driver (AL9)
