Home >> Buick >> 2008 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Diagrams

Power Mirror Switch: Diagrams

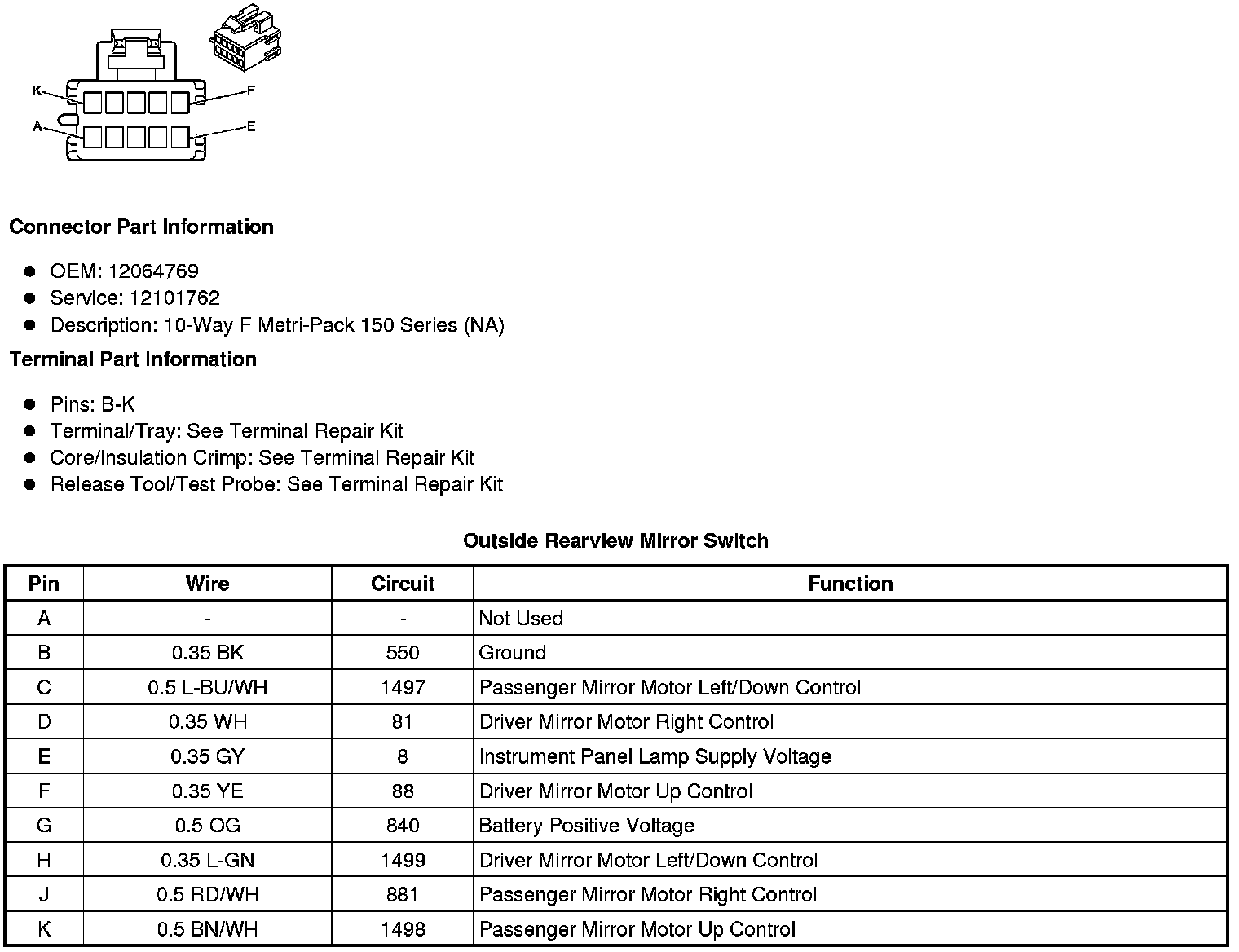

Component Connector End Views

Outside Rearview Mirror Switch
