Power Door Lock Switch: Diagrams



Component Connector End Views

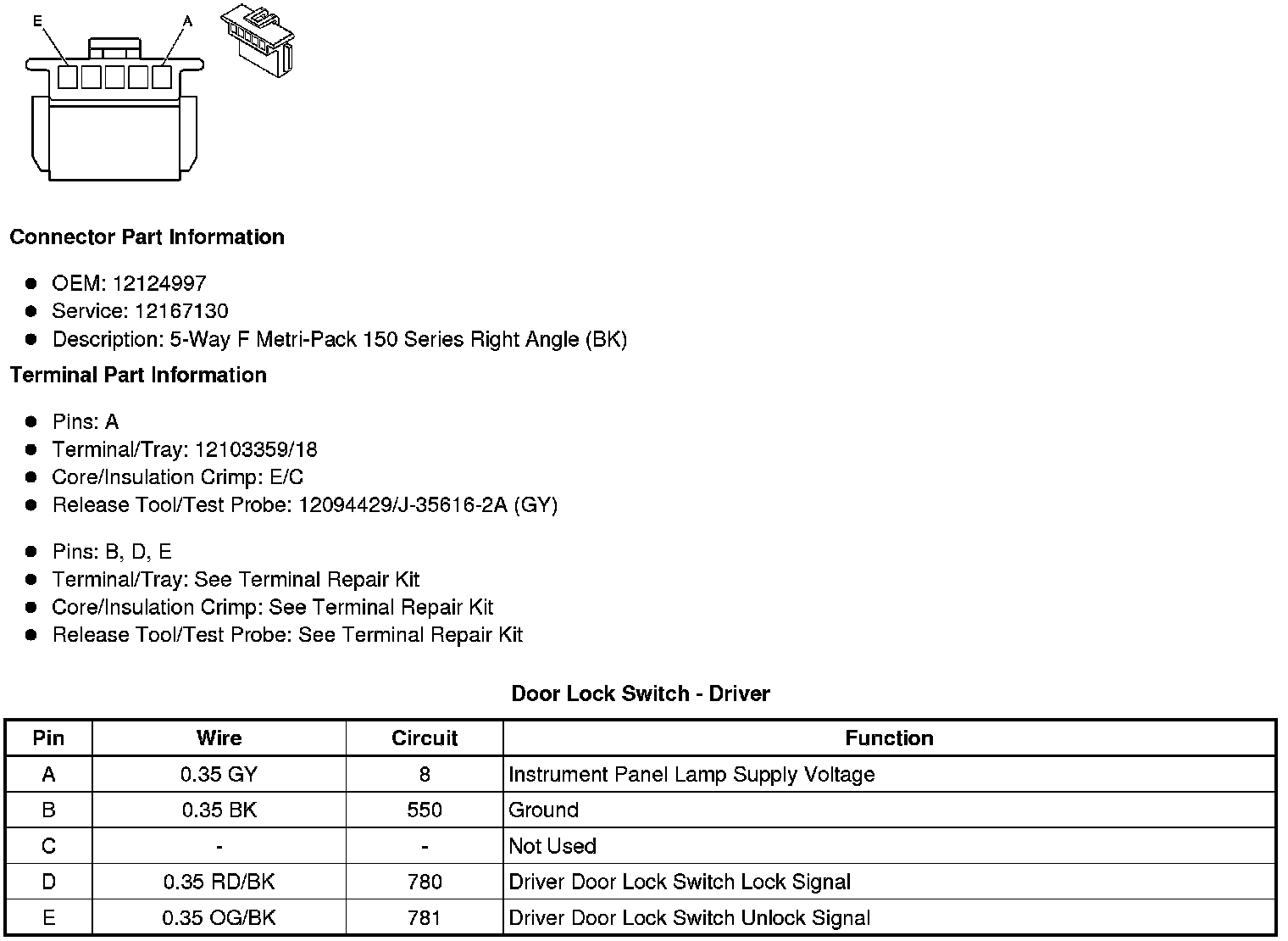

Door Lock Switch - Driver





Door Lock Switch - Front Passenger
